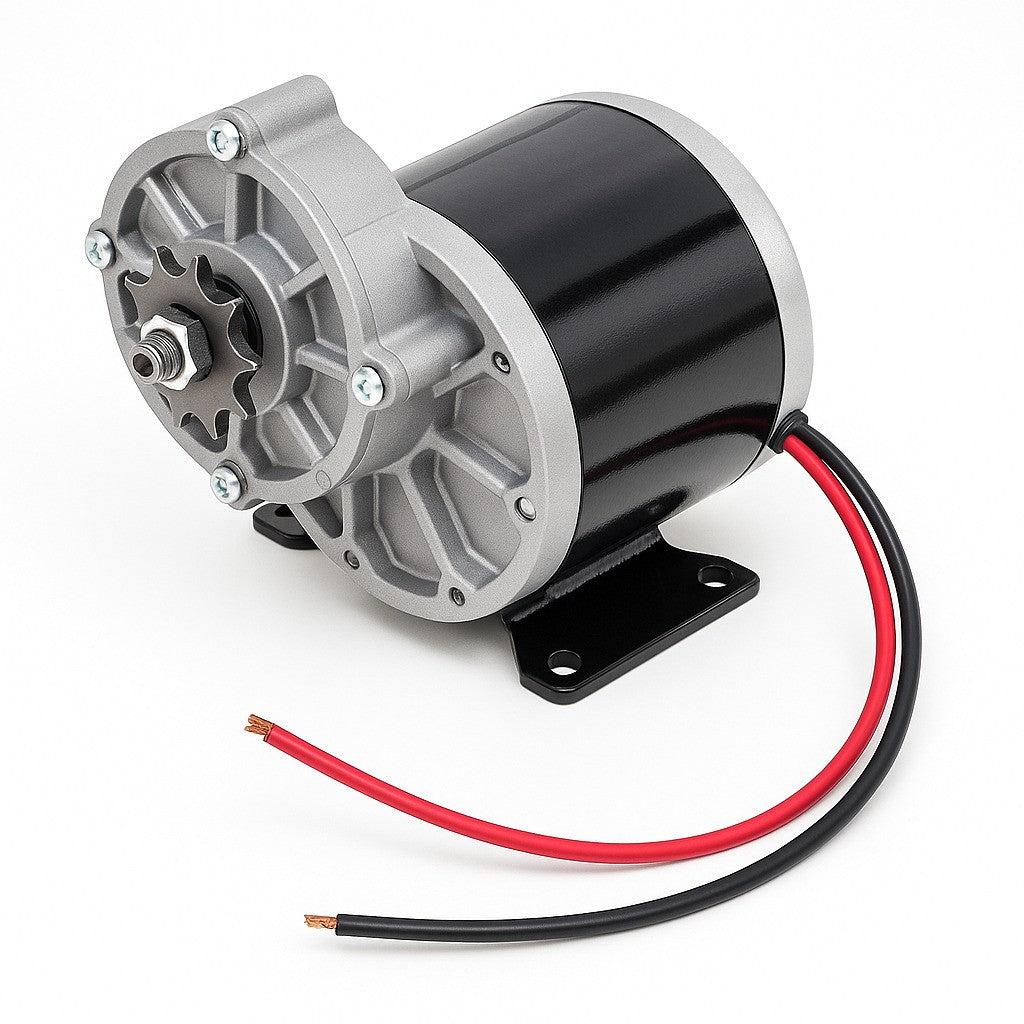

E-BIKE MY1016Z2 24V 300RPM 250W DC GEARED MOTOR

E-BIKE MY1016Z2 24V 300RPM 250W DC GEARED MOTOR

Availability: In stock
₹ 2,280.00 (Inc.GST)
₹ 2,280.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970014

Short Description:
  • 24V brushed DC motor
  • 250W power output
  • 300RPM rated speed
  • Strong metal body with Magnet

Select below products to add together

  • E-bike MY1016 24v 250W Dc Speed Controller
  • E-bike MY1016 24v 350W Dc Speed Controller
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Model MY1016Z2
Motor Type Brushed DC Geared Motor
Rated Voltage 24V DC
Rated Power 250W
Motor Speed (Base) ~3000 RPM
Gear Ratio ~9.78:1
Output Speed ~300 RPM
Rated Torque ~8 N·m
Stall Torque ~40 N·m
Rated Current ~13.4A
No Load Current ~2.0 – 2.2A
Efficiency ≥78%
Sprocket 9 Teeth (#410 chain)
Weight ~2.4 – 2.6 kg
Rotation Reversible (polarity swap)
Applications EV, robotics, industrial

The Xrobo.in MY1016Z2 24V 250W DC Geared Motor is a high-torque brushed DC motor with an integrated gearbox, designed for low-speed, high-load applications. With a built-in ~9.78:1 gear reduction, it converts high motor speed (~3000 RPM) into a powerful ~300 RPM output, making it ideal for electric vehicles, robotics, and industrial motion systems.


Key Features:

High Torque Geared Output

  • Built-in gearbox (≈9.78:1 reduction)
  • Output speed ~300 RPM with high torque

Strong Load Handling

  • Rated torque ≈ 8 N·m
  • Stall torque up to 40 N·m (very high)

Efficient Power Performance

  • 250W rated power
  • Efficiency ≥78% (typical)

Optimized Electrical Design

  • Operates on 24V DC
  • Full load current ≈ 13.4A

Chain Drive Ready

  • 9T sprocket (#410 chain compatible)
  • Easy integration into EV drivetrains

Durable Construction

  • Metal body with sealed gearbox + ball bearings
  • Designed for continuous duty

Applications

  • E-bikes & electric scooters (high torque setups)
  • Electric carts & cargo vehicles
  • Robotics (ATV bots, combat robots)
  • DIY EV projects & Segway builds
  • Industrial conveyors & automation systems

Packing List Includes:

1 x E-BIKE MY1016Z2 24V 300RPM 250W DC GEARED MOTOR

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
