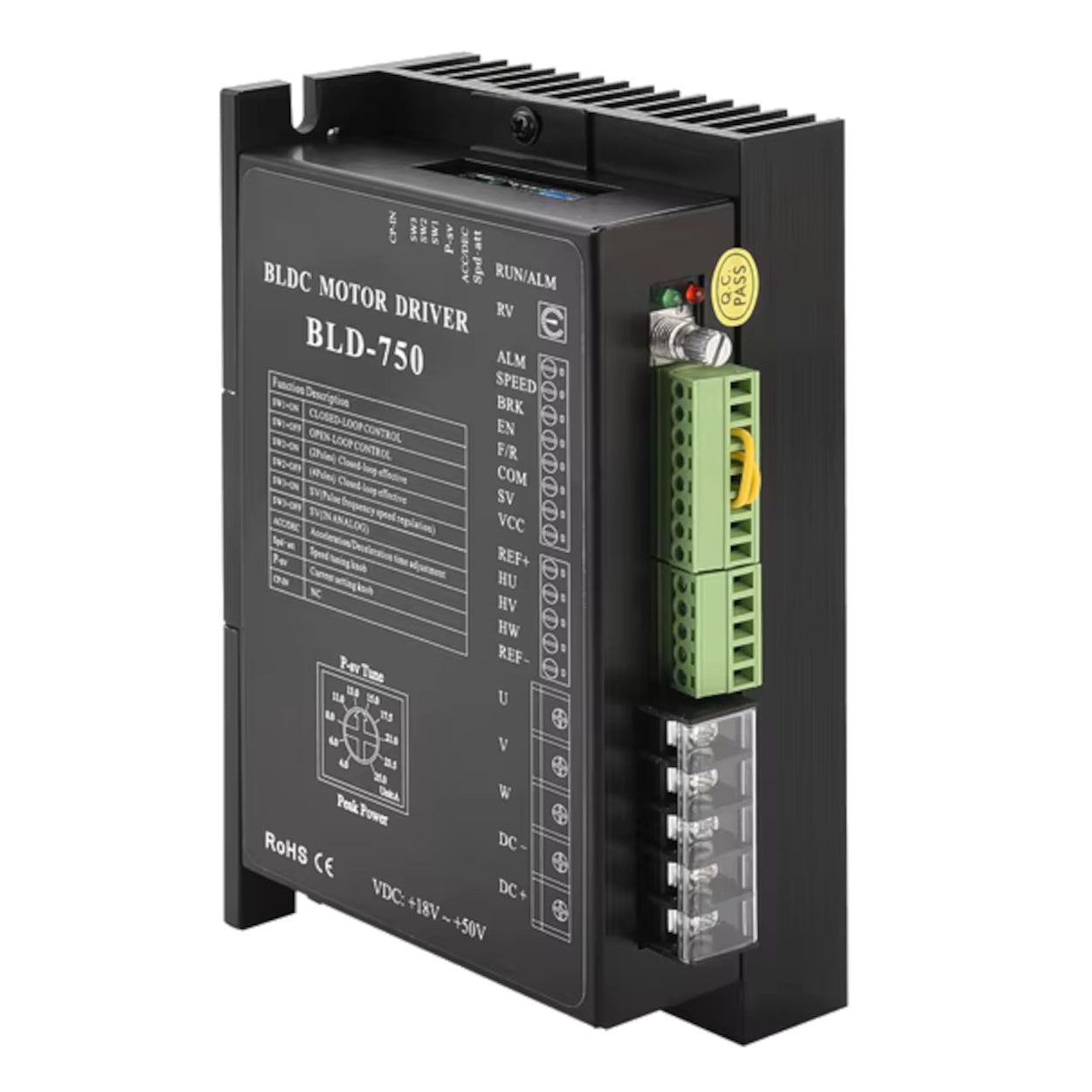

BLD750 Brushless DC Motor Driver 18–48V Input, 750W Output

BLD750 Brushless DC Motor Driver 18–48V Input, 750W Output

Availability: In stock
₹ 6,000.00 (Inc.GST)
₹ 6,000.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270301

Short Description:
  1. Output current : 45(Max).
  2. With resettable fuse.
  3. Equipped with LED indicator.
  4. Potentiometer with switch function for PWM adjustment.
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Model BLD750
Motor Type Supported 3-Phase Brushless DC Motor (BLDC)
Input Voltage Range 18–48V DC
Rated Output Power 750W
Rated Current 15–20A (typical)
Peak Current Up to 30A
Speed Control Mode Potentiometer, 0–5V, PWM, or External Signal
Hall Sensor Support Yes
Speed Range 0–20,000 RPM (depends on motor poles)
Control Methods Start/Stop, Direction Control, Speed Control
Protection Features Over-current, Over-voltage, Under-voltage, Over-temperature
Driver Efficiency >90%
Operating Temperature –20°C to +50°C
Cooling Method Natural Air Cooling / Heat Sink Base
Dimensions ~115 × 73 × 36 mm (varies by version)
Weight ~450–500 g
Applications CNC, Robotics, Automation, Conveyors, Electric Vehicles

The Xrobo.in BLD750 is a high-performance 18–48V Brushless DC Motor Driver designed to deliver up to 750W of smooth, efficient, and reliable control for 3-phase BLDC motors. Featuring Hall-sensor support, multiple speed-control modes, and built-in protection functions, it provides stable operation for robotics, CNC systems, automation, and industrial motion applications.

Key Features :

  • Wide input voltage range (approx. 15 – 52 VDC) for flexible motor compatibility
  • Supports 3-phase BLDC motors with speed up to ~20,000 RPM
  • Integrated PID speed loop and PID current loop control for precise speed and torque regulation
  • Manual speed adjustment with built-in potentiometer plus option for external potentiometer control
  • Forward/reverse (F/R) direction control and quick braking (BRK) feature

Wires Connection:

  • Yellow : U
  • Green : V
  • Blue : W

Driver Connection:

  • REF+ = Red
  • HU = Yellow
  • HV    = Green
  • HW  = Blue
  • REF- = Black
  • VCC = External Power Port
  • SV = External potentiometer
  • COM = GND Port
  • F/R = Direction Level
  • EN = Enable
  • BRK = Braking
  • Speed = Speed Signal Output Port
  • ALM = Light Signal Output Port

Packing List Includes:

1 x BLD750 Brushless DC Motor Driver

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
