Cytron 10Amp 7V-30V DC Motor Driver for R/C MDDRC10 (2 Channel)

Cytron 10Amp 7V-30V DC Motor Driver for R/C MDDRC10 (2 Channel)

Availability: Out of stock
₹ 4,500.00 (Inc.GST)
₹ 4,500.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9271004

Short Description:
  • Dual-channel RC motor driver (no coding required)
  • Direct RC receiver input (plug-and-play)
  • Supports 7V – 30V DC input
  • 10A continuous current per channel
  • Built-in 5V BEC (powers receiver)
  • Mixed mode for tank steering
  • Smooth PWM motor control
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Category Specification
Model Cytron MDDRC10
Type Dual Channel DC Motor Driver (RC)
Motor Type Brushed DC Motor
Channels 2
Operating Voltage 7V – 30V DC
Continuous Current 10A per channel
Peak Current 30A
Control Method RC signal (plug & play)
Modes Mixed / Independent
BEC Output 5V (500mA)
PWM Frequency ~20kHz
Protection Overcurrent, Thermal, Undervoltage
Special Features Auto calibration, test buttons
Applications RC vehicles, robotics

The Cytron MDDRC10 10A Dual Channel DC Motor Driver for RC is a plug-and-play motor controller designed specifically for RC applications. Unlike standard drivers, it connects directly to an RC receiver, eliminating the need for microcontrollers or programming.

With support for 7V–30V input and dual-channel control, it is ideal for RC vehicles, robots, and automation systems that require simple yet powerful motor control.

Key Features:

RC Plug-and-Play Control

  • Direct connection to RC receiver (no coding required)
  • Automatic calibration on startup

Dual Channel Motor Control

  • Controls 2 brushed DC motors bidirectionally

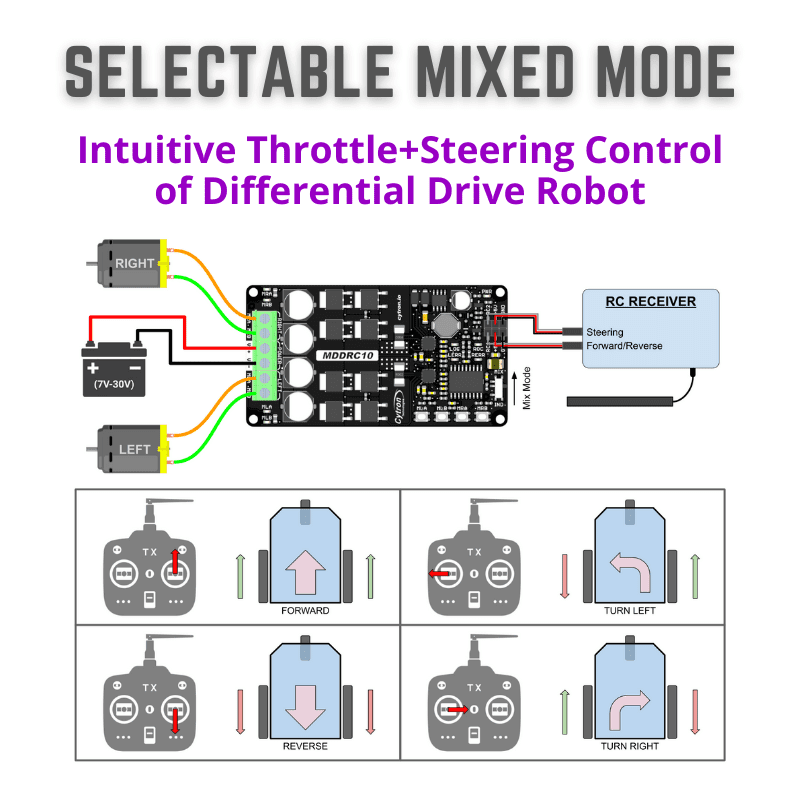

  • Supports mixed mode (tank steering)

High Power Capability

  • 10A continuous current per channel
  • Up to 30A peak current

Wide Voltage Range

  • Operating voltage: 7V – 30V DC
  • Suitable for RC batteries and power systems

Built-in BEC (Power Output)

  • Onboard 5V regulator (500mA)
  • Powers RC receiver directly (no extra BEC needed)

Smart Operation

  • Selectable mixed or independent mode
  • Smooth motor response with PWM contr

Easy Testing

  • Onboard test buttons
  • LED indicators for motor output status

Protection Features

  • Overcurrent protection with current limiting
  • Thermal protection
  • Undervoltage protection

Applications

  • RC cars & boats
  • Combat robots & sumo robots
  • RC lawn mowers & heavy-duty RC systems
  • DIY robotics (without microcontroller)
  • Tracked vehicles & differential drive robots

Packing List Includes:

  • 1 x Cytron 10Amp 7V-30V DC Motor Driver for R/C MDDRC10

The product has a warranty for 1 Months against manufacturing defects only.

  • However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
