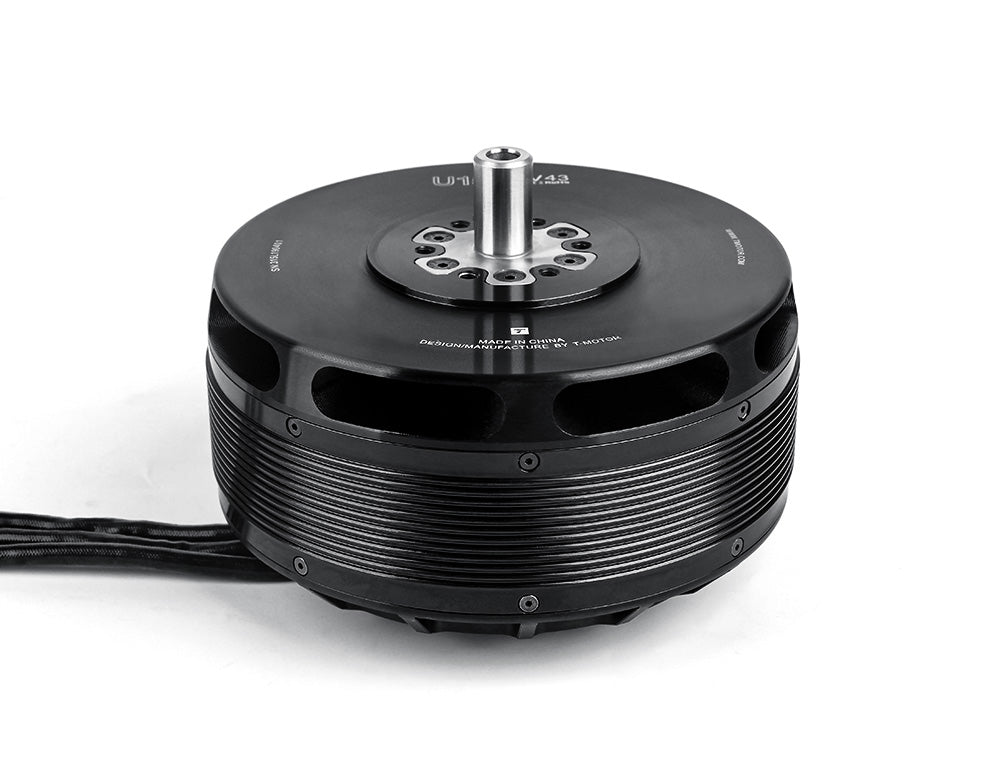

T-Motor U15L Manned Aircraft Type UAV Motor 12-24S 43KV

T-Motor U15L Manned Aircraft Type UAV Motor 12-24S 43KV

Availability: Pre-order – Shipped within 15-20 days
₹ 110,000.00 (Inc.GST)
₹ 110,000.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360004

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name U15L Manned Aircraft Type UAV Motor
KV Rating 43 KV
Compatible Battery 12S – 24S
Rated Voltage 24S
Rated Power 2800 W
Idle Current (10 V) 4.0 A
Peak Current (120 s) 135 A
Internal Resistance 20 mΩ
Motor Weight (with cables) ~3600 g
Motor Dimensions Ø151.5 × 86 mm
Lead Wire Length ~200 mm
Rotor Configuration 36N42P
Shaft Diameter 25 mm
Application Heavy-lift UAVs, cargo drones, manned aerial platforms

The U15L Manned Aircraft Type UAV Motor is a high-power, low-KV brushless motor engineered for heavy-lift unmanned and manned aerial platforms. Designed to operate at high voltages, it delivers strong torque, stable output, and reliable long-duration performance for large aircraft and cargo UAV applications.

Key Features:

  • Low-speed, high-torque 43 KV brushless motor design
  • Supports 12S to 24S LiPo battery systems
  • High continuous power capability of 2800 W
  • Designed for heavy-lift and manned aircraft propulsion
  • Robust mechanical construction for long service life
  • High-temperature resistant windings for safe continuous operation
  • Precision-balanced rotor for smooth and low-vibration performance

Packing List Includes:

  • 1 × U15L Brushless UAV Motor
  • 1 x Accessories pack
