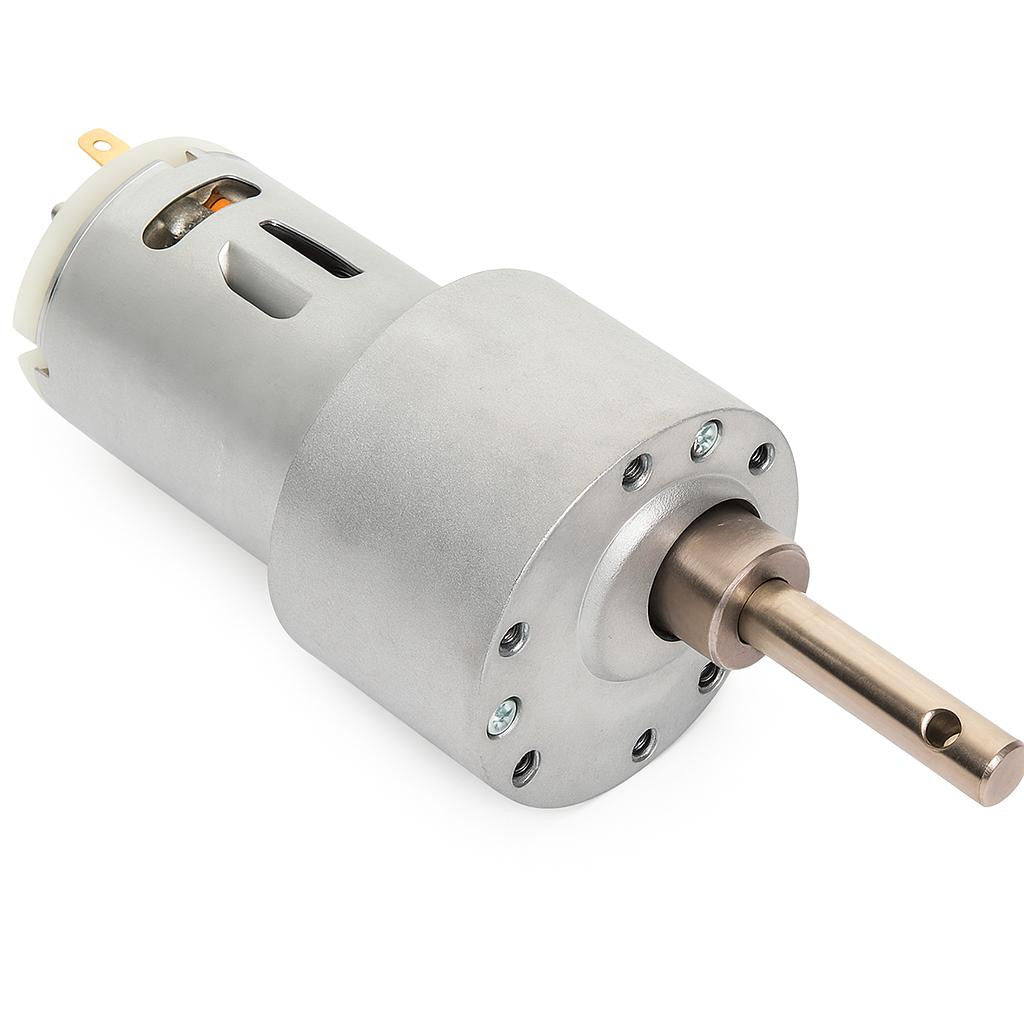

Johnson 12V 200rpm High Torque DC Geared Motor - Grade A

Johnson 12V 200rpm High Torque DC Geared Motor - Grade A

Availability: Out of stock
₹ 418.00 (Inc.GST)
₹ 418.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270055

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification

Parameter

Specification

Motor Type

Brushed DC Gear Motor (Johnson type)

Operating Voltage

12 V DC (6–18 V usable)

No-load Speed

200 RPM @ 12 V

Rated Speed

160 RPM (typ.)

Rated Torque

2.0 Kg·cm (0.196 Nm)

Stall Torque

6.0 Kg·cm (0.588 Nm)

No-load Current

0.25–0.50 A

Rated Current

0.8–1.5 A

Stall Current

3–7 A (use fused driver)

Gearbox

All-metal spur gearbox

Shaft

6 mm D-shaft, length 18–20 mm

Motor Diameter

37 mm (typ.)

Mounting

M3 threaded holes on face

Applications

DIY robotics, e-bike aux drives, conveyors, actuation

The Xrobo.in Johnson 12V 200rpm High Torque DC Geared Motor - Grade A combines a robust Johnson‑type brushed DC motor with an all‑metal reduction gearbox to deliver high torque at low speeds. Designed for 6–18 V operation (12 V nominal), it offers stable output power for mechanisms such as drive wheels, lift actuators, and feeders. The 6 mm D‑shaft simplifies coupling with hubs and pulleys, while the front face mounting pattern allows rigid, slop‑free installation. Use a suitably rated H‑bridge or DC motor driver with over‑current protection to handle stall conditions during heavy loads.
