| Parameter | Specification |
|---|---|
| Product Name | A6L-X Modular Propulsion System |
| System Type | Integrated UAV propulsion module |
| Recommended UAV Class | 5 L quadcopter / 10 L hexacopter |
| Rated Thrust per Arm | ~4 – 5.5 kg |
| Total System Weight (inc. prop) | ~750 g |
| Recommended Battery | 12 – 14 S LiPo |
| Motor Type | Brushless motor (FOC) |
| Motor KV | 160 |
| ESC | 14 S FOC 80 A ESC |
| ESC Throttle Range | 1100 – 1940 μs |
| Peak Current (brief) | ~80 A |
| Control Protocols | PWM / CAN (UAV CAN / DRONE CAN) |
| BEC | No |
| Propeller Model | Polymer folding (MF2407P) |
| Propeller Length | 24″ (≈622 mm) |
| Wire Gauge (power) | 14 AWG red/black |
| Signal Wire | 5-core Teflon |
| Recommended Ambient Operating Temp | −30 °C to +50 °C |
| IP Rating | IPX6 water-resistant |

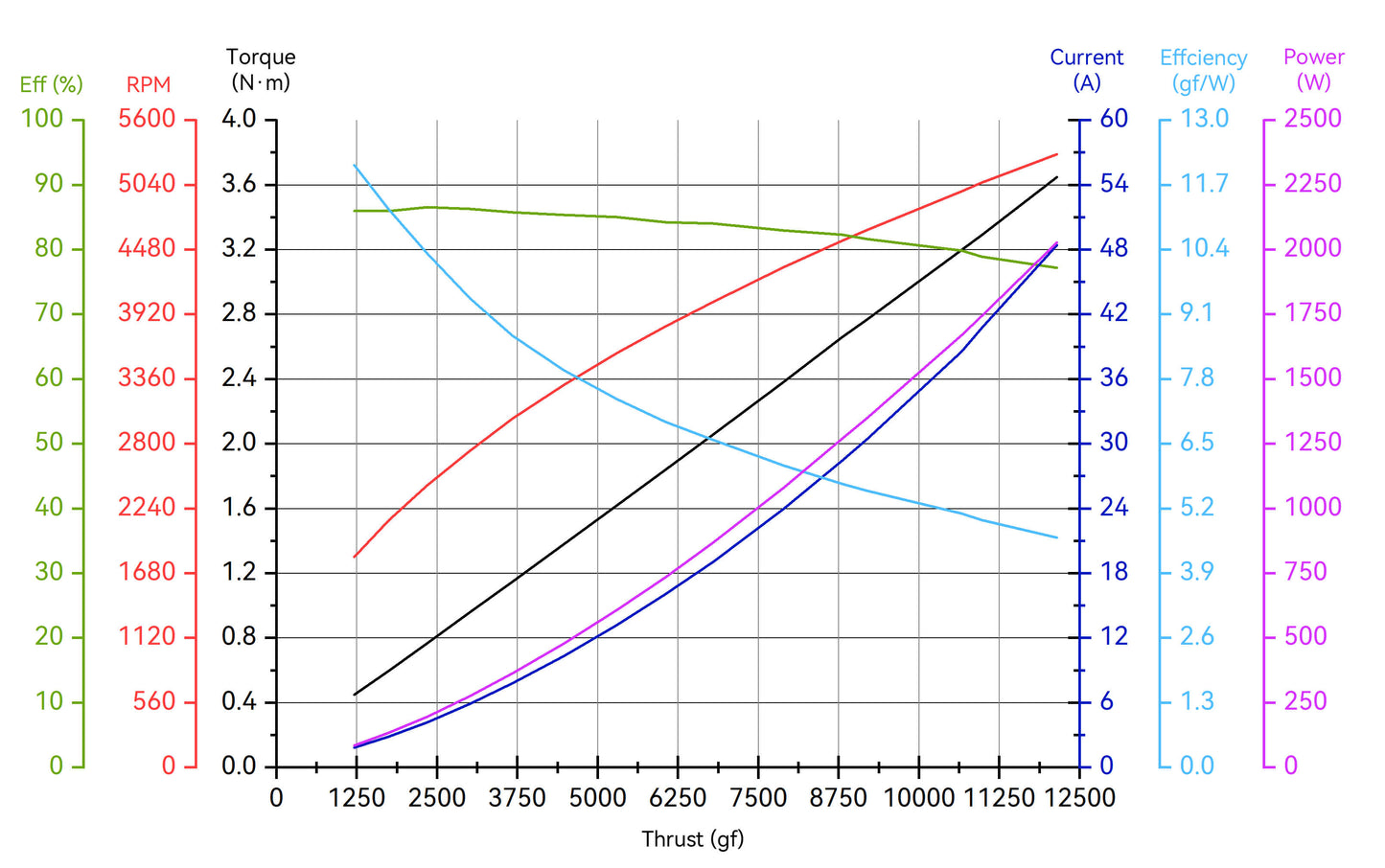

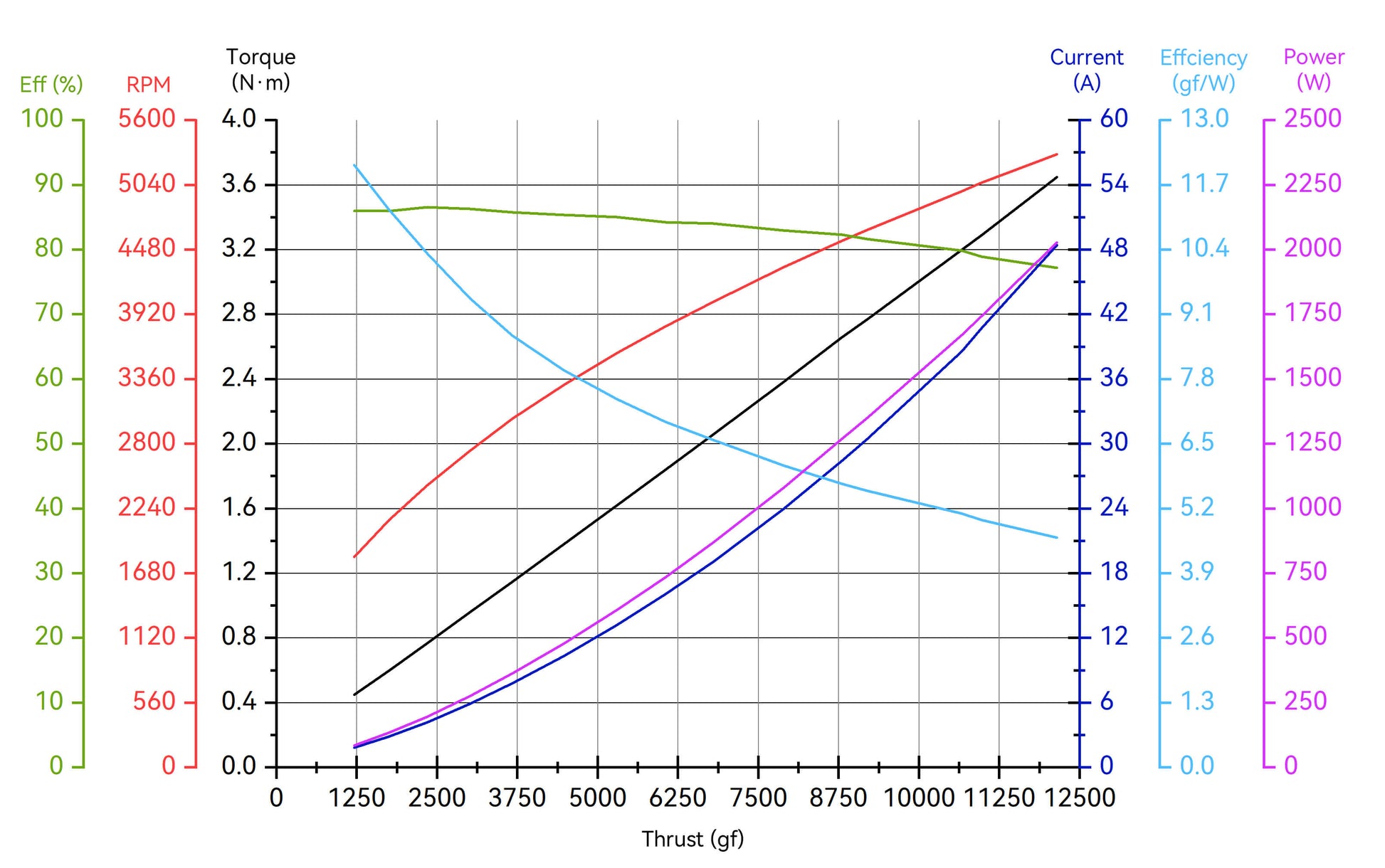

| Performance Highlights | ~7.98 g/W @ ~4.4 kg thrust |
| Additional Features | Built-in monitoring, CAN support, aggressive efficiency |

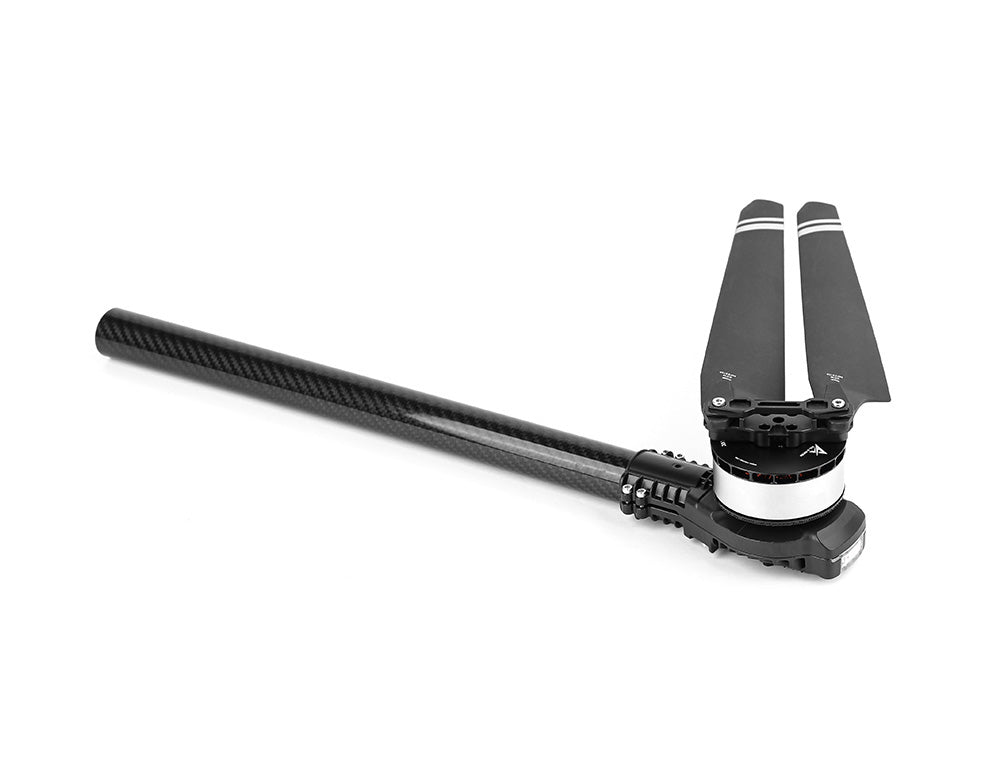

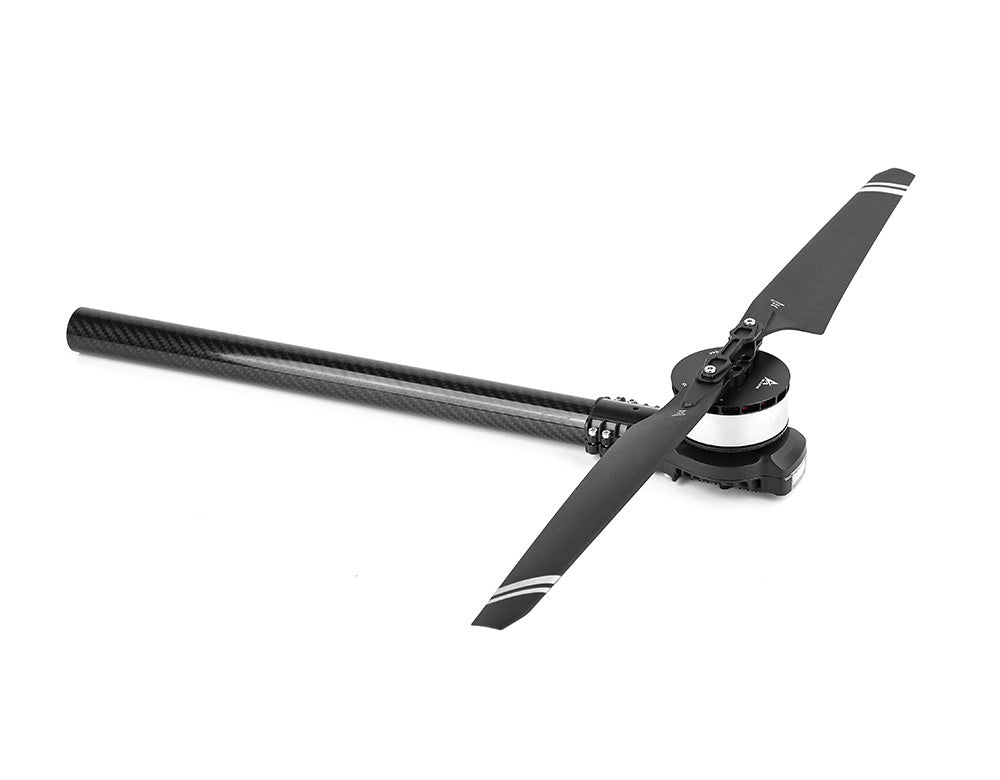

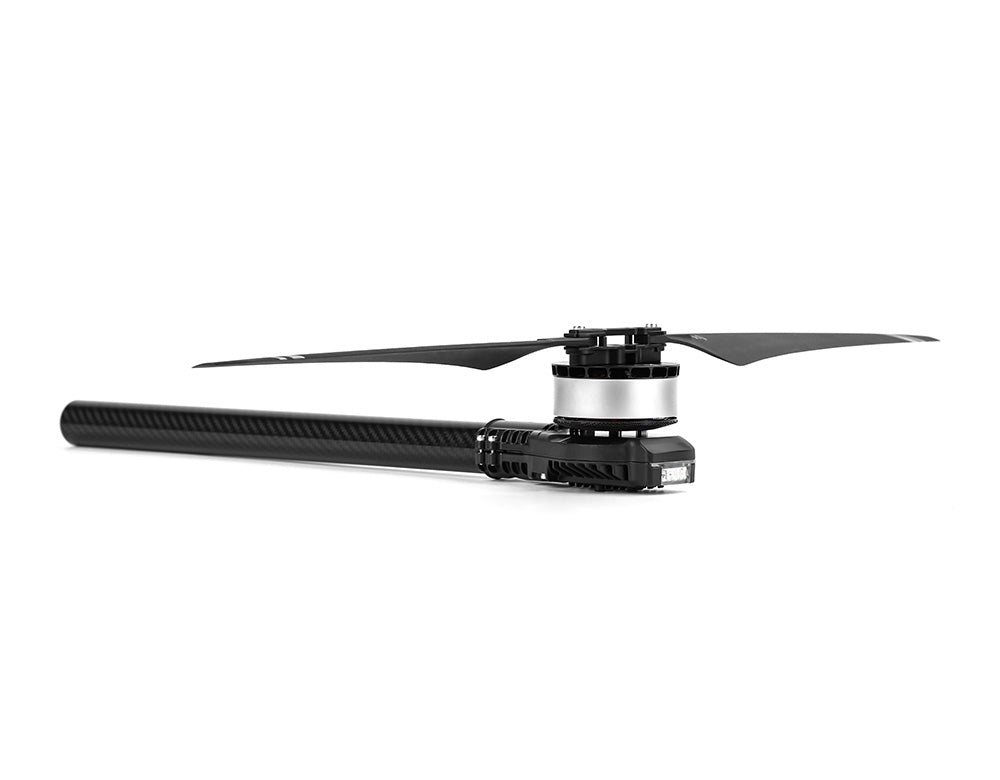

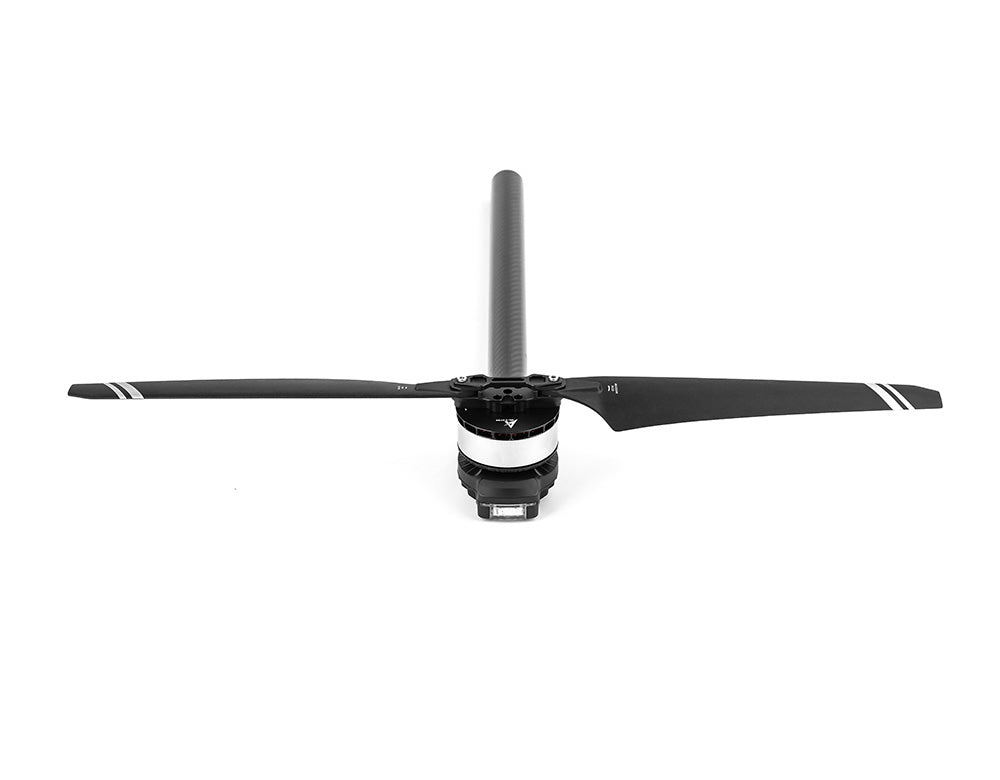

The A6L-X Modular Propulsion System is a ready-to-install integrated UAV power solution combining matched motor, ESC, and propeller into one module. Designed for agricultural drones and medium multirotors, it offers stable thrust, efficient power usage, and rugged performance in harsh environments.
Key Features:
- Agricultural spraying drones (5 L quadcopters, 10 L hexacopters)
- Medium-lift multirotor UAVs
- Surveying & industrial drones
- Long-endurance flight systems needing robust propulsion
Packing List Includes:
- 1 × A6L-X Modular Propulsion Arm (Motor + ESC + Propeller)
- 1 x Folding propeller set

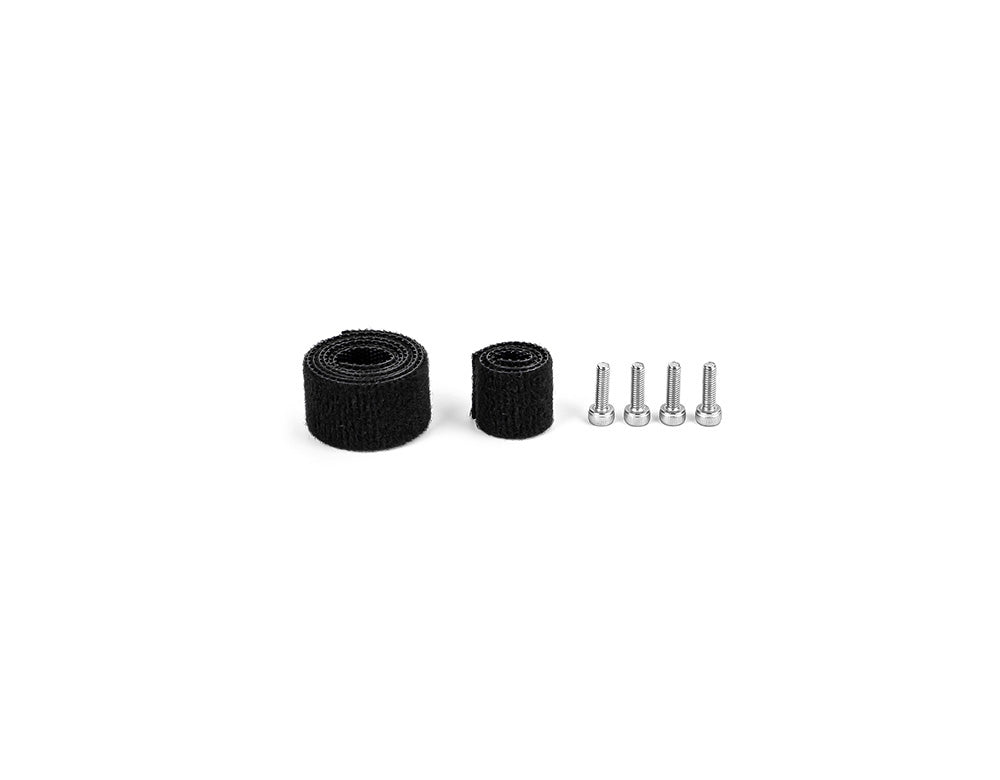

- Accessories pack
