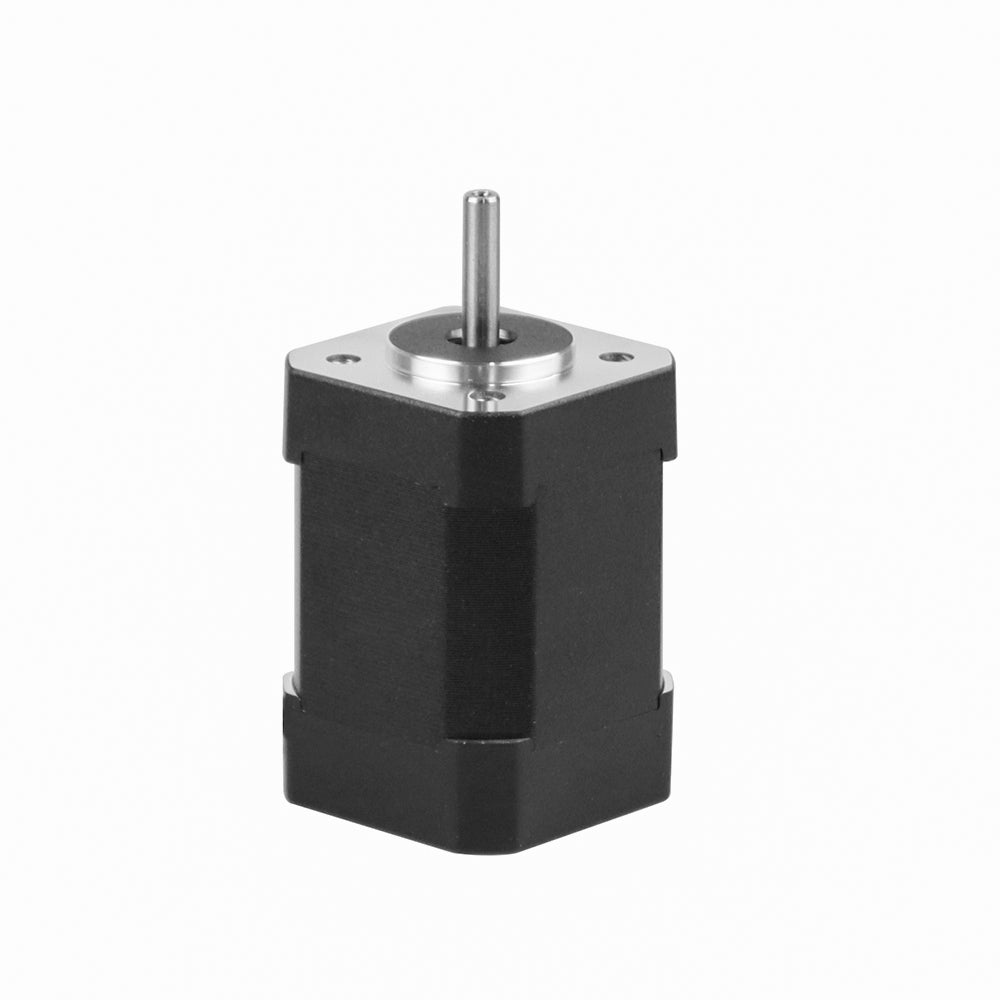

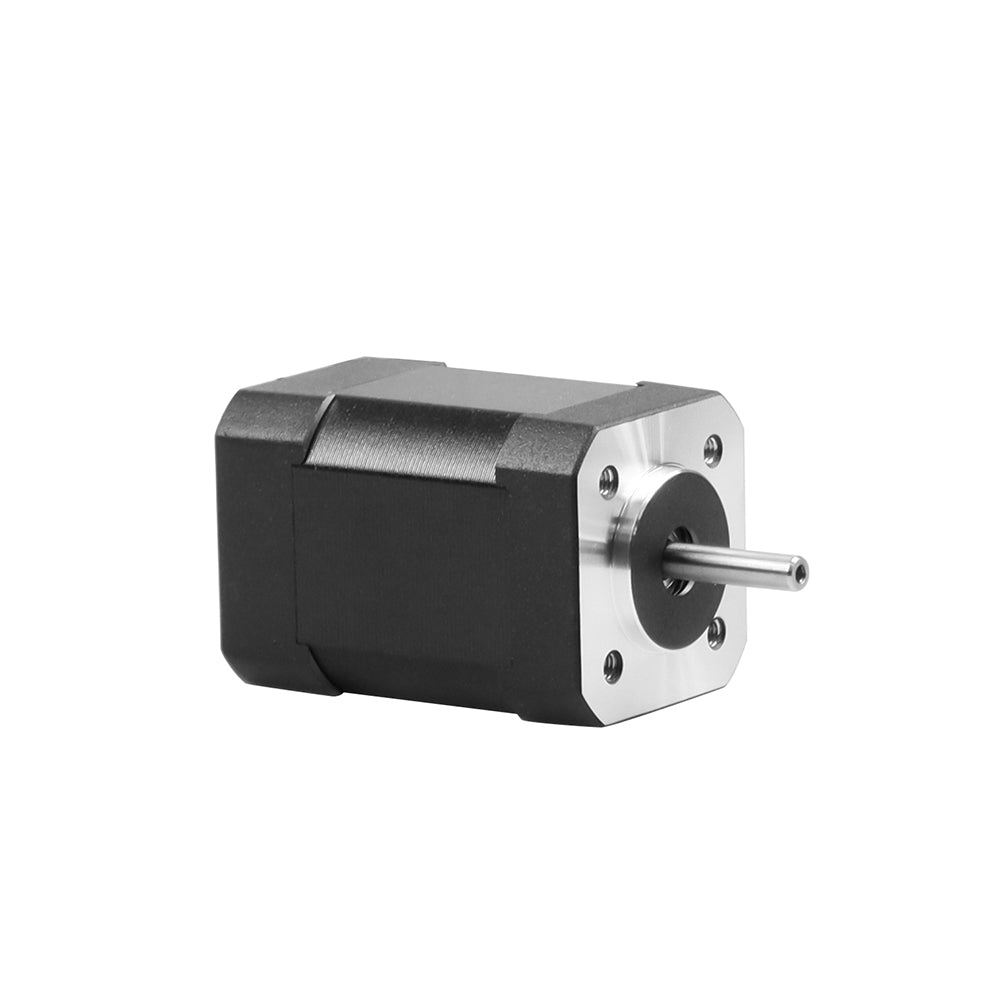

NEMA17 24V 52W Brushless DC Motor (BLDC) – 4000RPM Low Noise

NEMA17 24V 52W Brushless DC Motor (BLDC) – 4000RPM Low Noise

Availability: In stock
₹ 1,770.00 (Inc.GST)
₹ 1,770.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270201

Short Description:

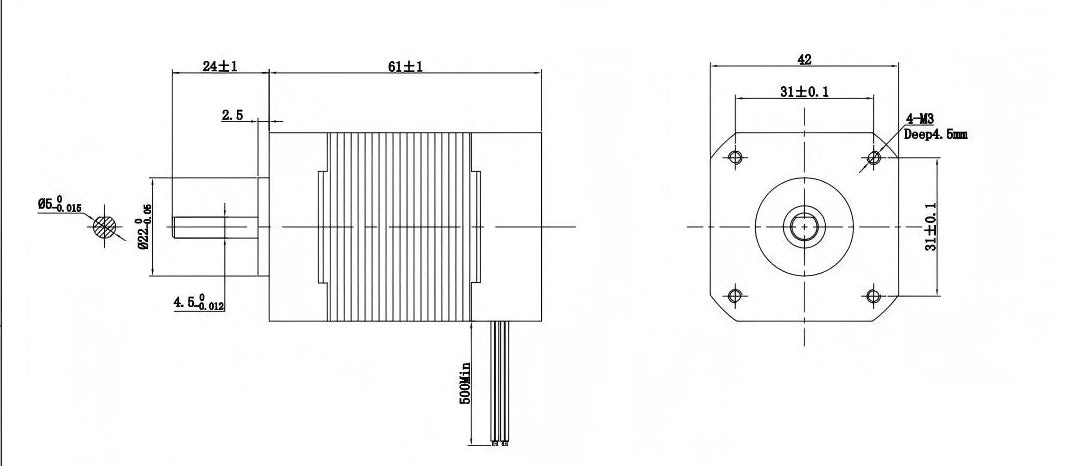

  • Frame Size: Nema 17 ( 42 x 42mm)
  • Motor Length: 61mm
  • Shaft Diameter: 5mm
  • Shaft Length: 24mm
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Motor Type Brushless DC Motor (BLDC)
Frame Size NEMA17 (42 × 42 mm)
Rated Voltage 24V DC
Rated Speed 4000 RPM
Number of Poles 8 poles
Hall Sensor Yes (3 Hall sensors)
Noise Level Low-noise operation
Phase 3-phase BLDC
Torque Varies by model (typically 0.2–0.6 N·m)
Shaft Type D-shaft
Applications 3D printers, robotics, automation, medical devices



The Xrobo.in NEMA17 24V 4000RPM BLDC Motor with Hall sensors delivers high-speed, low-noise performance for precise and efficient motion control. Ideal for robotics, automation systems, and compact machinery, it offers smooth operation, reliable feedback, and long service life.

Key Features :

  • CNC machines and small motion control systems
  • 3D printers and engraving machines
  • Robotics and robotic joints
  • AGV and mobile robots
  • Conveyor belt systems
  • Packaging and labeling machines
  • Medical and laboratory equipment
  • Automated sliding doors and actuators

Wires Connection:

  • Yellow : U
  • Green : V
  • Blue : W

Hall Encoder Connection:

  • VCC = Red
  • HU    = Yellow
  • HV    = Green
  • HW  = Blue
  • GND = Black

Packing List Includes:

1 x Nema17 52W BLDC Motor

The product has a warranty for 6 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
