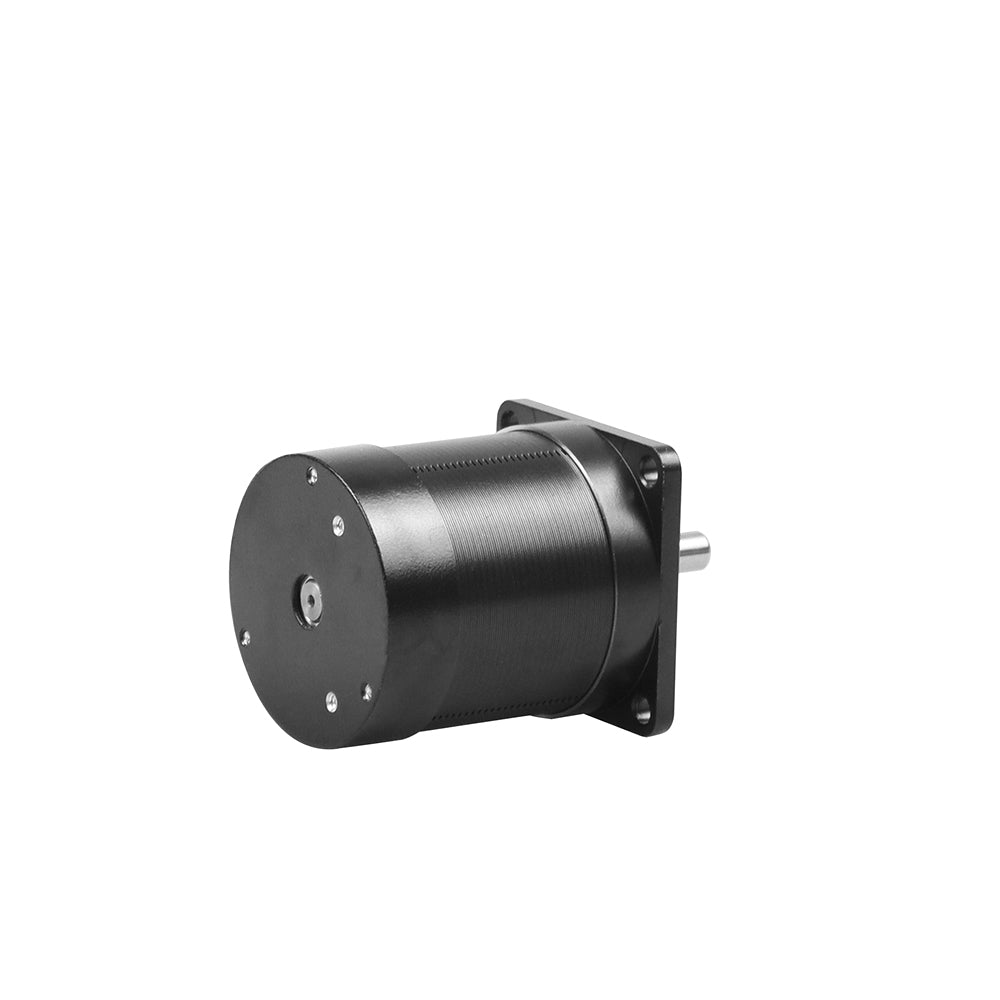

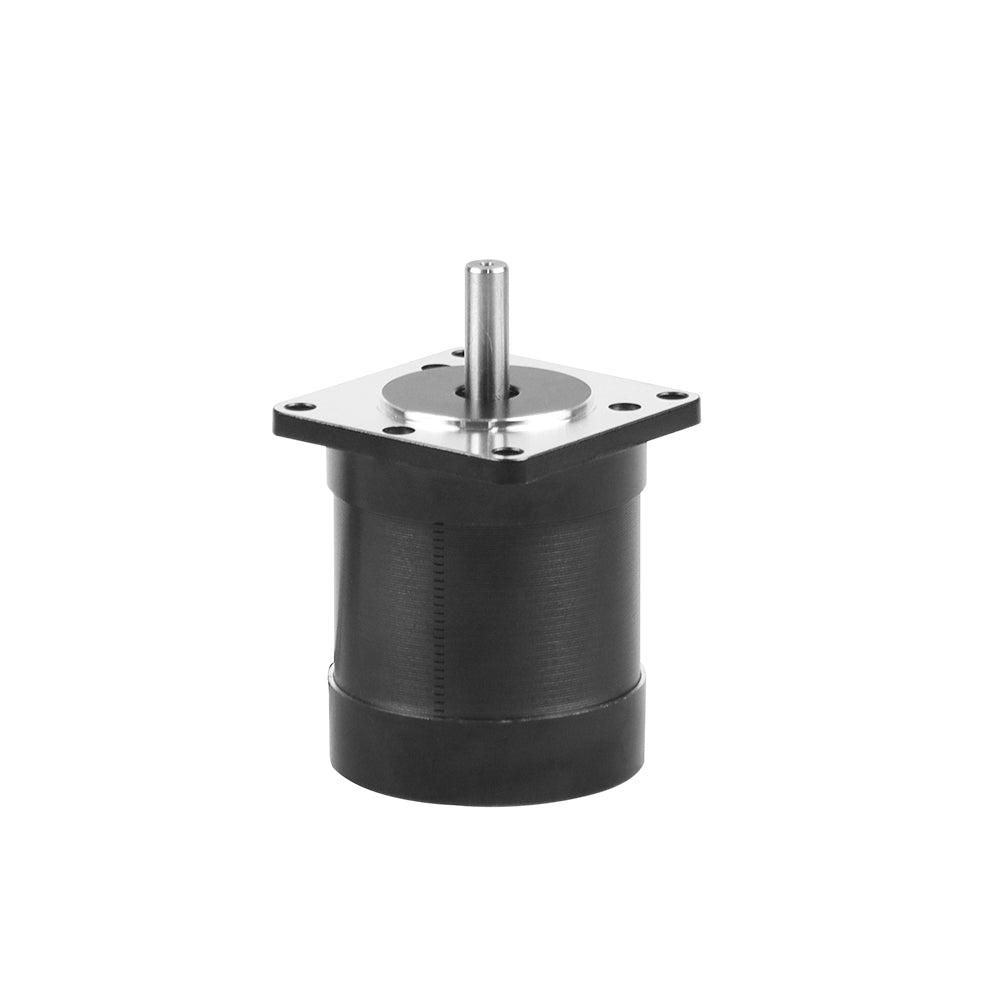

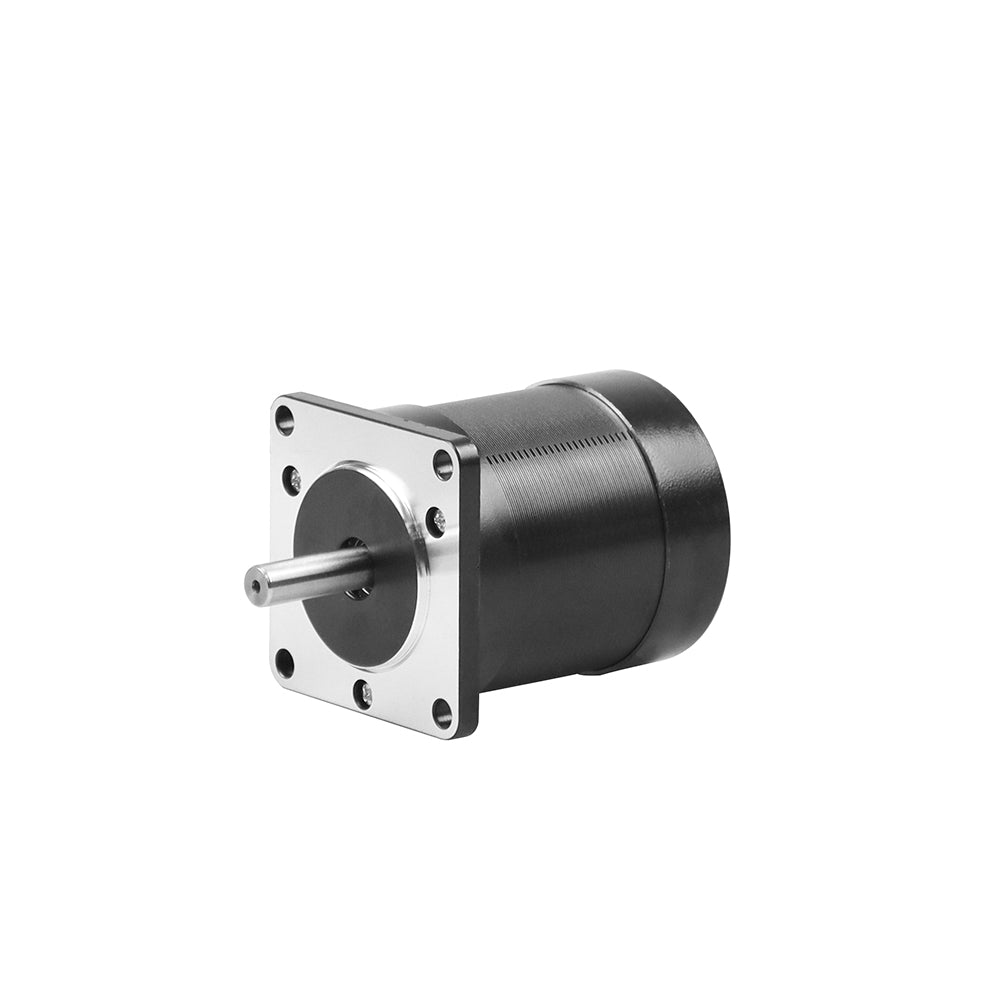

NEMA23 Square Brushless DC Motor with Hall Low Noise 36V 92W 4000RPM (BLDC)

NEMA23 Square Brushless DC Motor with Hall Low Noise 36V 92W 4000RPM (BLDC)

Availability: Pre-order – Shipped within 45-50 days
₹ 3,540.00 (Inc.GST)
₹ 3,540.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270203

Short Description:

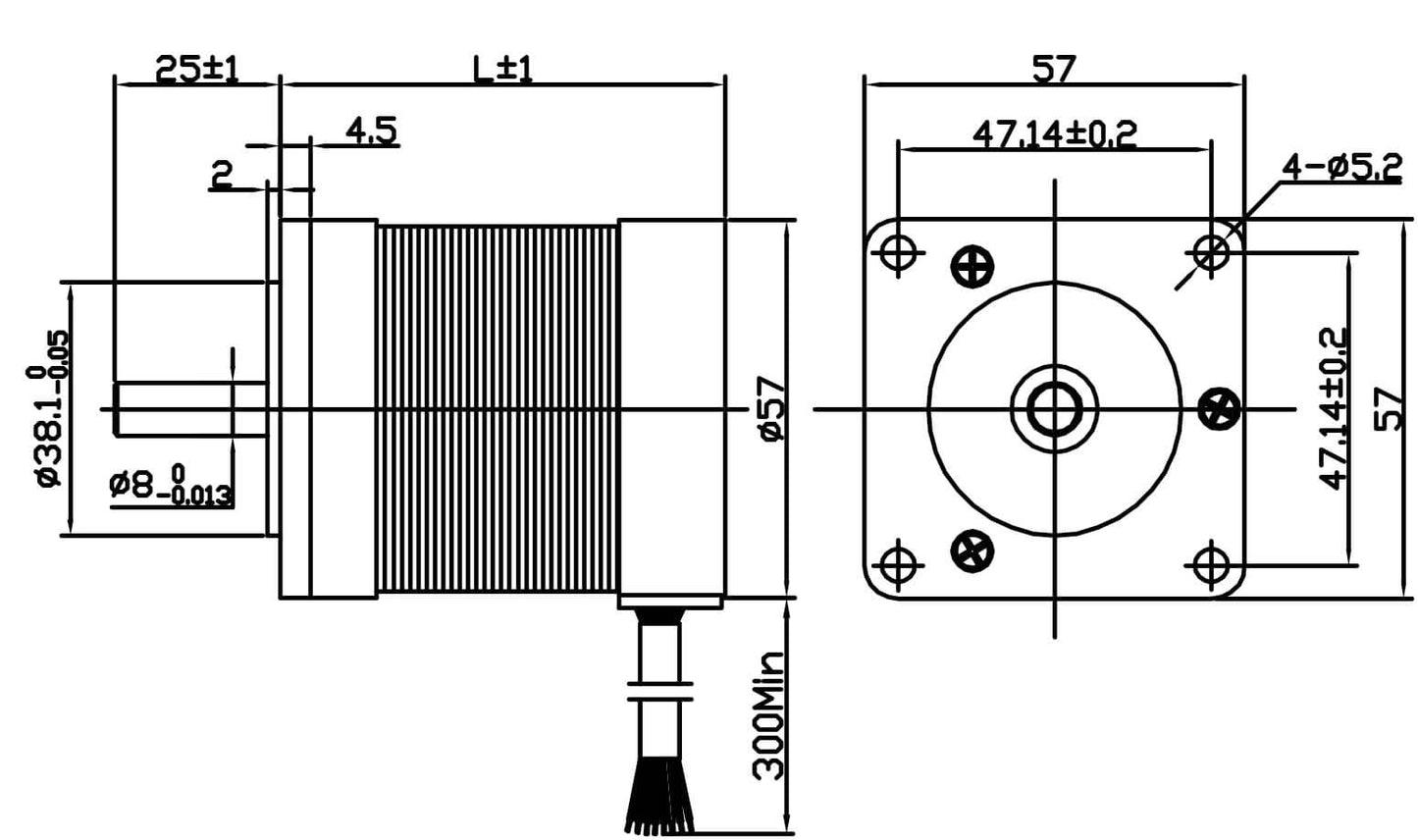

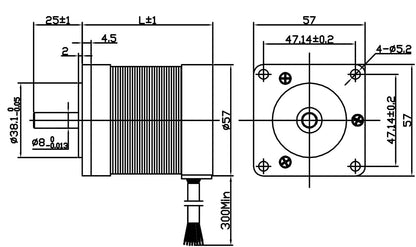

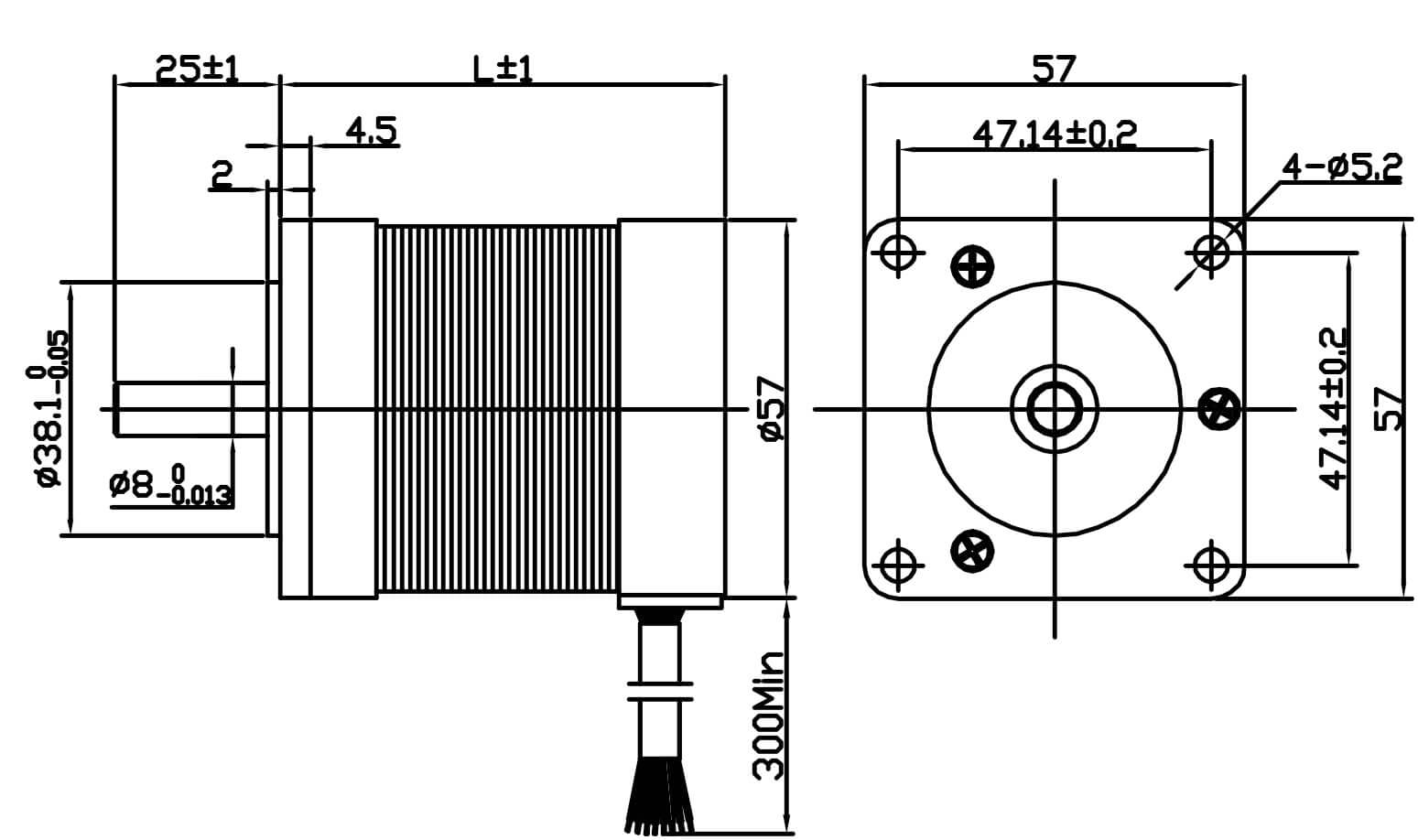

  • Frame Size: Nema 23 ( 57 x 57mm)
  • Motor Length: 67mm
  • Shaft Diameter: 8mm
  • Shaft Length: 25mm
  • Insulation Class : IP30
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Motor Type Brushless DC Motor (BLDC)
Frame Size NEMA 23 (57 × 57 mm)
Rated Voltage 36 V DC
Rated Power 92 W
Rated Speed 4000 RPM
Rated Torque 0.22 Nm
Peak Torque 0.66 Nm
Rated Current 3.6 A
Peak Current 11.5 A
Number of Phases 3 Phase
Number of Poles 4 Poles
Sensor Type Hall Sensor
Body Length 67 mm
Shaft Diameter 8 mm
Number of Leads 8 wires
Weight 0.75 kg
Insulation Class Class B
Insulation Resistance ≥100 MΩ
Dielectric Strength 500 VAC for 1 minute
Back EMF Constant 7.4 V/Krpm
Torque Constant 0.07 Nm/A
Rotor Inertia 119 g·cm²
Mounting Type Standard NEMA mounting

The Xrobo.in NEMA23 brushless DC motor rated at 36 V, 92 W, and 4000 RPM, featuring built-in hall sensors for precise speed and position feedback. Designed for smooth, low-noise operation and reliable control in industrial and automation systems.

Key Features :

  • Integrated Hall sensors for accurate feedback and control
  • High speed operation up to 4000 RPM
  • Rated power of 92 W with strong torque output
  • Low electrical noise and smooth dynamic response
  • Compact NEMA23 frame for easy integration

Wires Connection:

  • Yellow : U
  • Green : V
  • Blue : W

Hall Encoder Connection:

  • VCC = Red
  • HU    = Yellow
  • HV    = Green
  • HW  = Blue
  • GND = Black

Packing List Includes:

1 x Nema23 92W BLDC Motor

The product has a warranty for 6 monthsagainst manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
