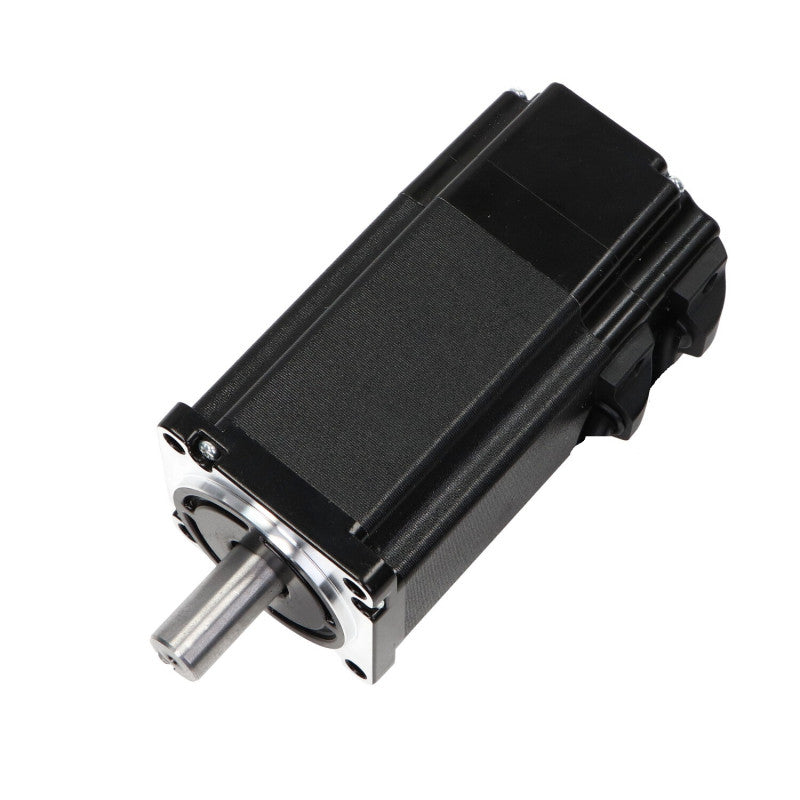

NEMA24 24V 400W Brushless DC Motor (BLDC) – 3000 RPM, Hall-Equipped, Low Noise

NEMA24 24V 400W Brushless DC Motor (BLDC) – 3000 RPM, Hall-Equipped, Low Noise

Availability: In stock
₹ 6,799.00 (Inc.GST)
₹ 6,799.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270200

Short Description:

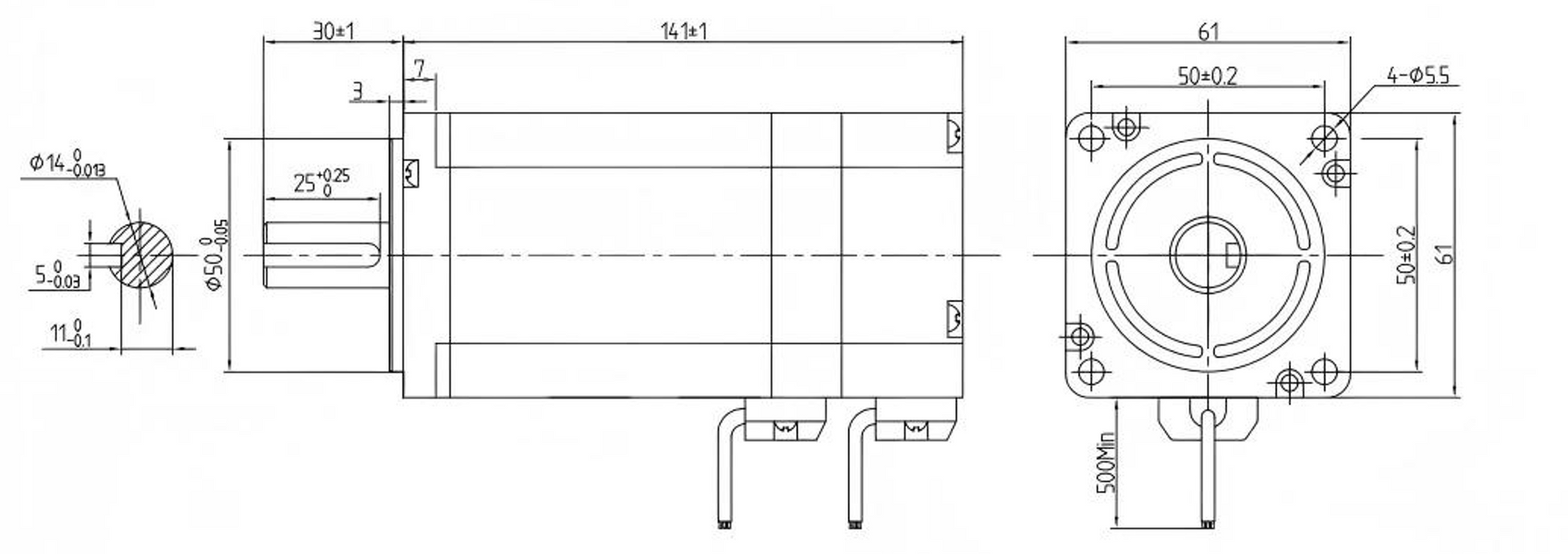

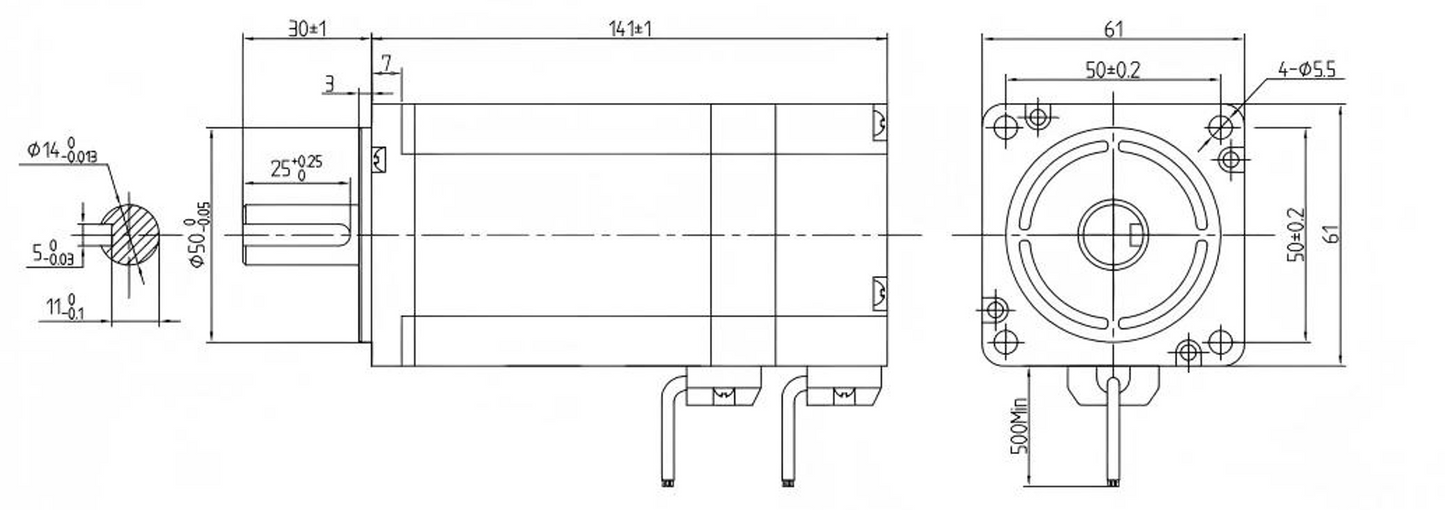

  • Frame Size: Nema 24 ( 61 x 61mm)
  • Motor Length: 141mm
  • Shaft Diameter: 14mm
  • Shaft Length: 31mm
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Motor Frame Size NEMA24
Rated Voltage 24 V DC
Rated Power 400 W
Rated Speed 3000 RPM
Rated Torque 1.27–1.30 N·m
Torque Constant 0.127 N·m/A
No Load Current 16–20 A
Hall Sensors Yes
Number of Poles 8 poles
Phase 3-Phase Wire
Insulation Class Class B
Noise Level Low Noise <55 dB
Efficiency 85–90%
Body Length ~141 mm
Shaft Diameter 14 mm
Shaft Type D-shaft
Weight 1.8 kg
Operating Temperature –20°C to +60°C
Mounting Pattern Standard NEMA24 square flange

The Xrobo.in NEMA24 24V 400W Brushless DC Motor (BLDC) is a high-performance, low-noise motor designed for demanding motion applications. It delivers a stable 3000 RPM speed with excellent efficiency and smooth torque output. Equipped with integrated Hall sensors, it ensures accurate rotor position detection and reliable closed-loop control.

This 3-phase BLDC motor offers improved durability, reduced maintenance needs, and consistent performance under continuous operation. Its compact NEMA24 frame allows easy integration into robotics, automation systems, CNC machinery, and industrial equipment. With robust construction, high power density, and quiet operation, it is ideal for precision and high-speed motion solutions.


Key Features :

  • CNC machines and motion control systems
  • Industrial automation equipment
  • Robotics and robotic arms
  • Conveyor belt systems
  • AGV and mobile robots
  • Packaging machines
  • Medical and laboratory equipment
  • Electric vehicles and mobility systems

Wires Connection:

  • Yellow : U
  • Green : V
  • Blue : W

Hall Encoder Connection:

  • VCC = Red
  • HU    = Yellow
  • HV    = Green
  • HW  = Blue
  • GND = Black

Packing List Includes:

  • 1 x Nema24 400W BLDC Motor

The product has a warranty for 6 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
