DALY LiFePO4 8S 50A Smart Battery BMS

DALY LiFePO4 8S 50A Smart Battery BMS

Availability: Out of stock
₹ 1,120.00 (Inc.GST)
₹ 1,120.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

7920021

Short Description:
  • Charge Voltage (V) : 2.6
  • Charge Current (A) : 50
  • Balance Current (mA) : 30±5
  • Working Current (uA) : 100
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model DALY Smart BMS 8S 50A
Battery Chemistry LiFePO4 (LFP)
Cell Configuration 8S
Nominal Battery Voltage 25.6 V
Full Charge Voltage 29.2 V
Continuous Charge Current 50 A
Continuous Discharge Current 50 A
Peak/Overcurrent Protection 75–100 A (typical protection threshold)
Balance Function Passive Cell Balancing
Balance Current 70 ± 25 mA
Balance Start Voltage 3.40 V ±0.05 V per cell
Communication UART (Bluetooth, CAN, and RS485 optional depending on version)
Waterproof Rating IP65
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Monitoring Functions Cell Voltage, Pack Voltage, Current, Temperature, State of Charge (SOC)
Mobile App Supported via Optional Bluetooth Module
PC Software Supported via UART

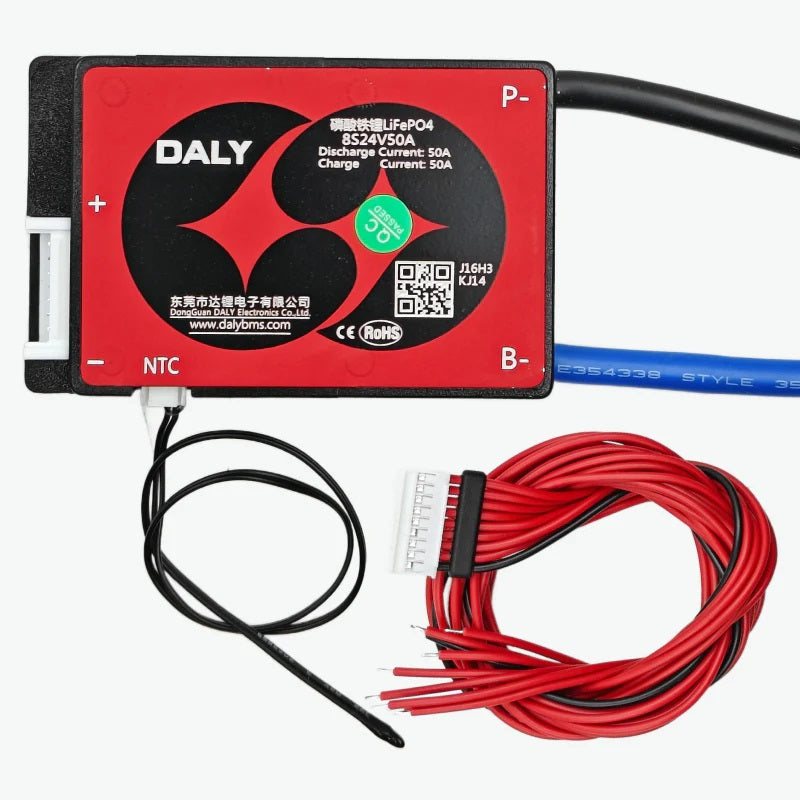

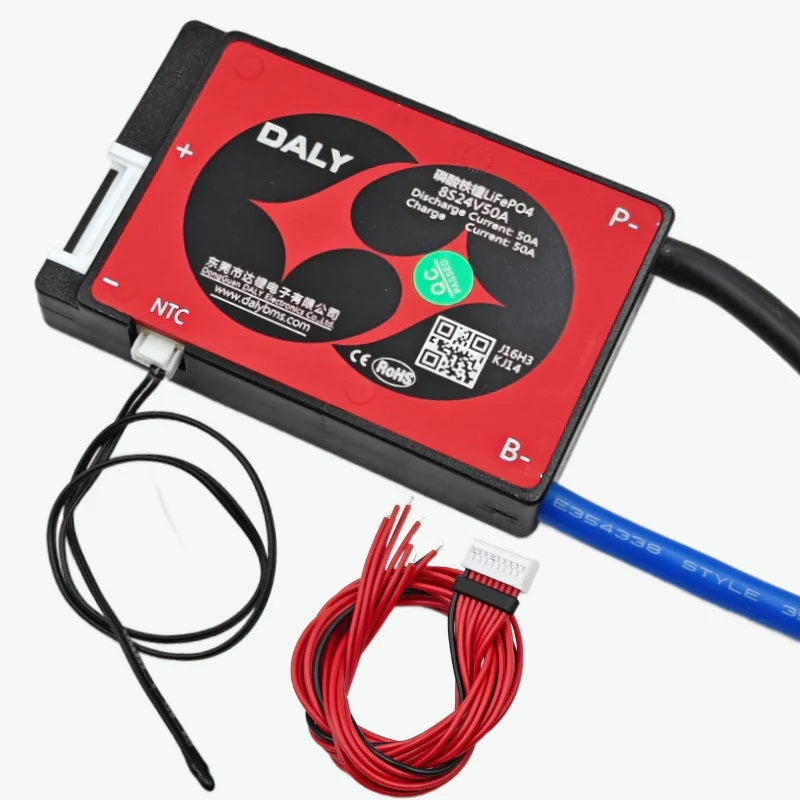

The DALY LiFePO4 8S 50A Smart Battery BMS is an intelligent battery management system designed for 25.6V (8S) LiFePO4 battery packs. It provides 50A continuous charge and discharge capability, passive cell balancing, comprehensive protection features, and real-time monitoring of battery voltage, current, temperature, and State of Charge (SOC). With support for UART and optional Bluetooth, CAN, and RS485 communication, it is an ideal solution for solar energy storage, RVs, marine batteries, electric vehicles, and other professional lithium battery applications. Its sealed, waterproof construction enhances reliability in demanding operating environments.

Key Features:

  • Supports 8S LiFePO4 (25.6V) battery packs
  • 50A continuous charge and discharge current
  • Intelligent battery monitoring and management
  • Passive cell balancing for improved battery life
  • Cell overcharge protection
  • Cell over-discharge protection
  • Over-current protection
  • Short-circuit protection
  • Charge and discharge temperature protection
  • MOSFET temperature protection
  • Automatic fault recovery
  • UART communication interface
  • Optional Bluetooth connectivity for mobile monitoring
  • Optional CAN and RS485 communication
  • Real-time monitoring of cell voltage, pack voltage, current, temperature, and State of Charge (SOC)
  • Waterproof sealed design suitable for demanding environments

Packing List Includes:

  • 1 × DALY LiFePO4 8S 50A Smart Battery BMS

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
