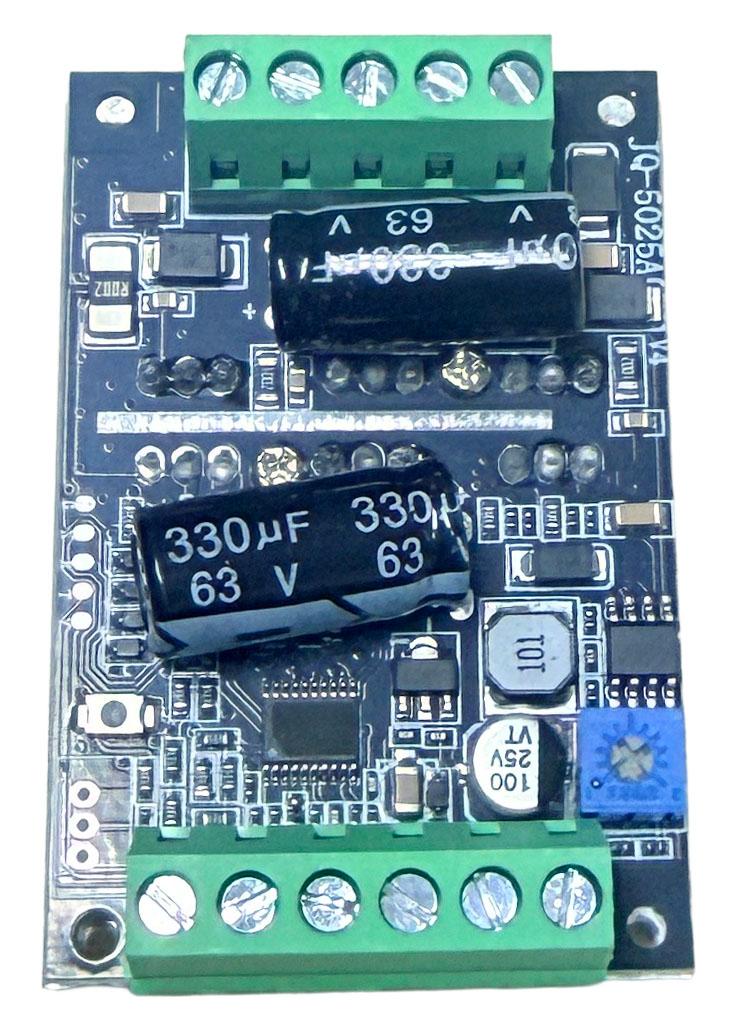

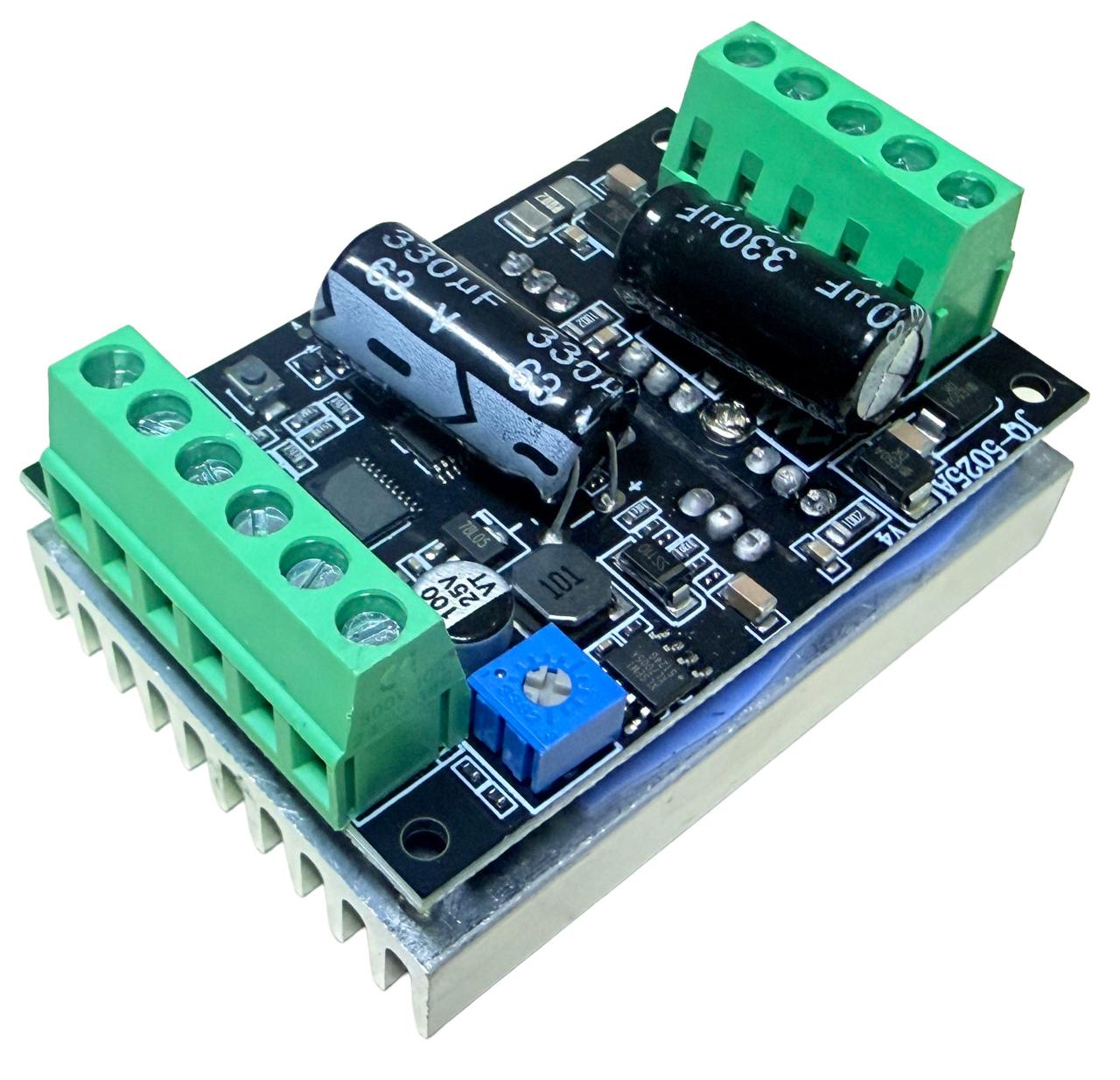

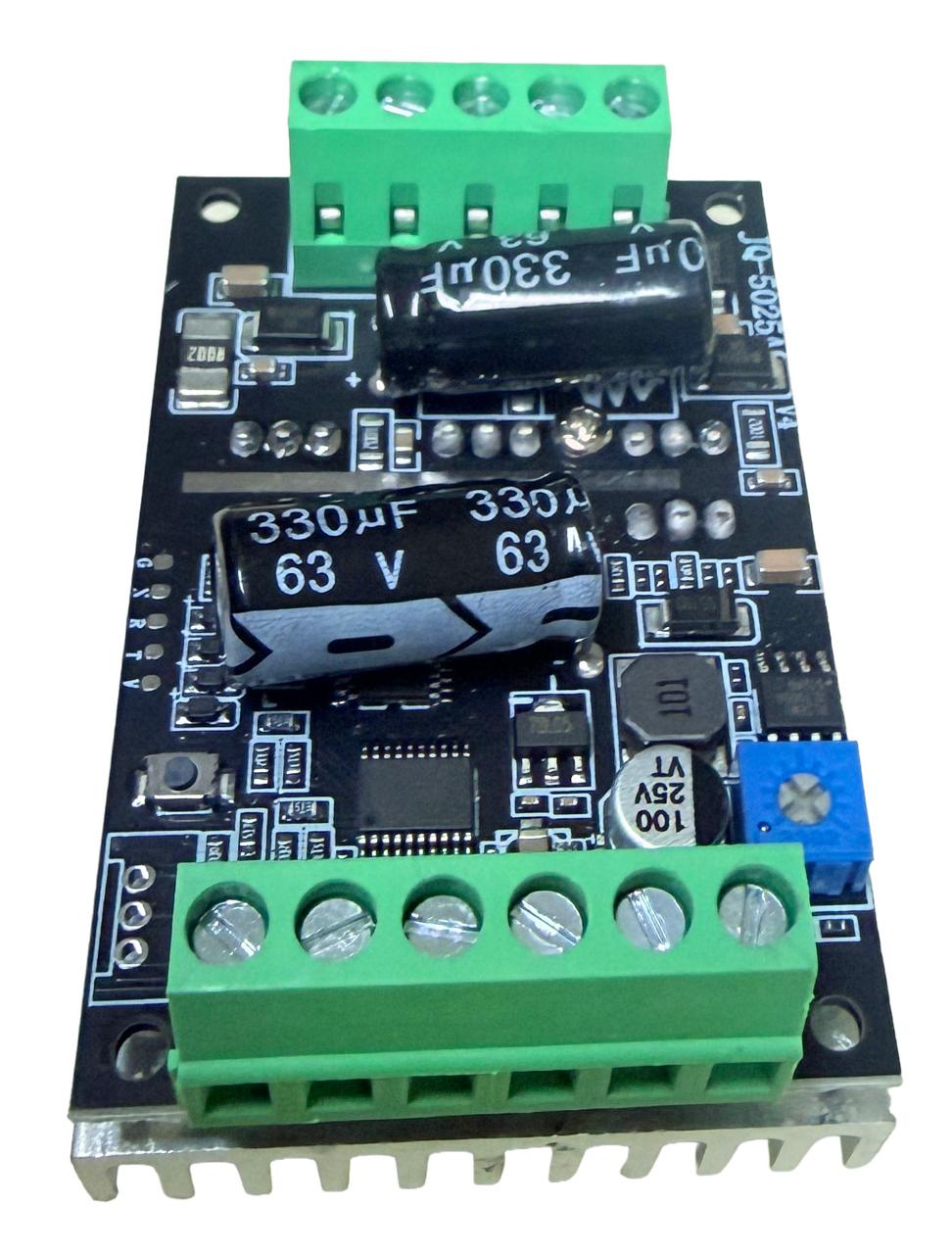

BLDC 300W Sensorless 12V-60V Brushless DC Motor Drives

BLDC 300W Sensorless 12V-60V Brushless DC Motor Drives

Availability: In stock
₹ 1,240.00 (Inc.GST)
₹ 1,240.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270306

Short Description:
  1. Output current : 16A(Max).
  2. Voltage : 12-60V
  3. Equipped with LED indicator.
  4. Potentiometer to PWM adjustment.
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 3 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Type Sensorless BLDC 300W Motor Driver
Motor Type Supported 3-phase Brushless DC (Hall-less)
Working Voltage 12V – 60V DC
Rated Power 300W
Rated Current 16A
Peak Current 20A
Speed Control Method PWM Speed Regulation
Control Signal PWM / 0–5V Analog
Maximum Speed Up to 30,000 RPM (one-pole motor)
Direction Control FB pin (HIGH/LOW for direction)
Protection Overcurrent Protection
Dimensions 80 × 45 × 37 mm
Weight ~100 g
Input Power Pins VCC, GND
Motor Output 3-phase (A, B, C)
Hall Sensor Requirement Not required (Sensorless operation)
Application Robotics, EVs, automation, DIY projects

The Xrobo.in Sensorless BLDC motor driver supporting 12V–60V input, delivering up to 300W power and 16A current. Features PWM/analog speed control, direction control, and overcurrent protection.

Application :

  • Industrial automation and machinery
  • Robotics and robotic motion control
  • Conveyor and packaging systems
  • CNC machines and precision equipment
  • AGV and mobile robot drive systems

Wires Connection:

  • Yellow : U
  • Green : V
  • Blue : W

Packing List Includes:

1 x BLDC 300W Sensorless 12V-60V Brushless DC Motor Drive

The product has a warranty for 3 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
