| Parameter | Specification |
|---|---|
| Product Name | T-Motor AIR 40A ESC |
| ESC Type | Brushless ESC |
| Application | Multirotor / UAV / Drone |
| Continuous Current | 40 A |
| Burst Current | 60 A |
| Input Voltage | 2S – 6S LiPo (7.4 V – 25.2 V) |
| Signal Frequency | Up to 621 Hz |
| Throttle Response | Fast, smooth, linear |
| Motor Type | Sensorless Brushless Motor |
| Signal Cable | Twisted-pair signal wire |
| Protection Features | Over-current & thermal protection |
| Dimensions | ~70 × 30 × 6 mm |
| Weight | ~25 g (without wires) |
| Recommended Use | Quadcopters, Hexacopters, Multirotors |
T-Motor Air 40A 6S ESC is designed for multi-rotor UAVs, featuring optimized firmware and a special core program for improved throttle response and motor compatibility. With support for signal frequencies up to 621Hz and a twisted-pair throttle signal cable to reduce crosstalk, it ensures smooth and stable flight. Compatible with 2-6S LiPo batteries and various flight control systems, the Air 40A ESC delivers precision and reliability for multi-rotor applications.
AIR 40A 6S ESC Highlights:
- 40A multi-aircraft electronic speed controller (ESC)
- Special core program for multi-rotor controllers
- Supports a signal frequency of up to 621 Hz
- Twisted-pair design throttle signal cable
Packing List Includes:

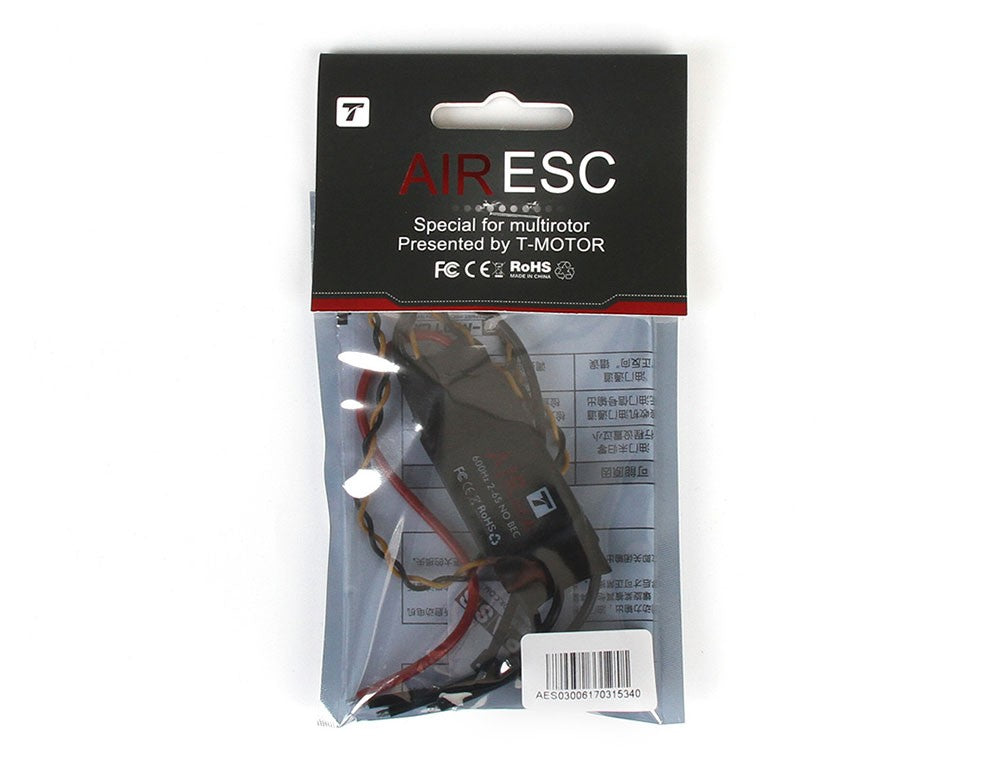

- 1 x T-Motor AIR 40A 6S ESC
- 1 x Accessories pack
