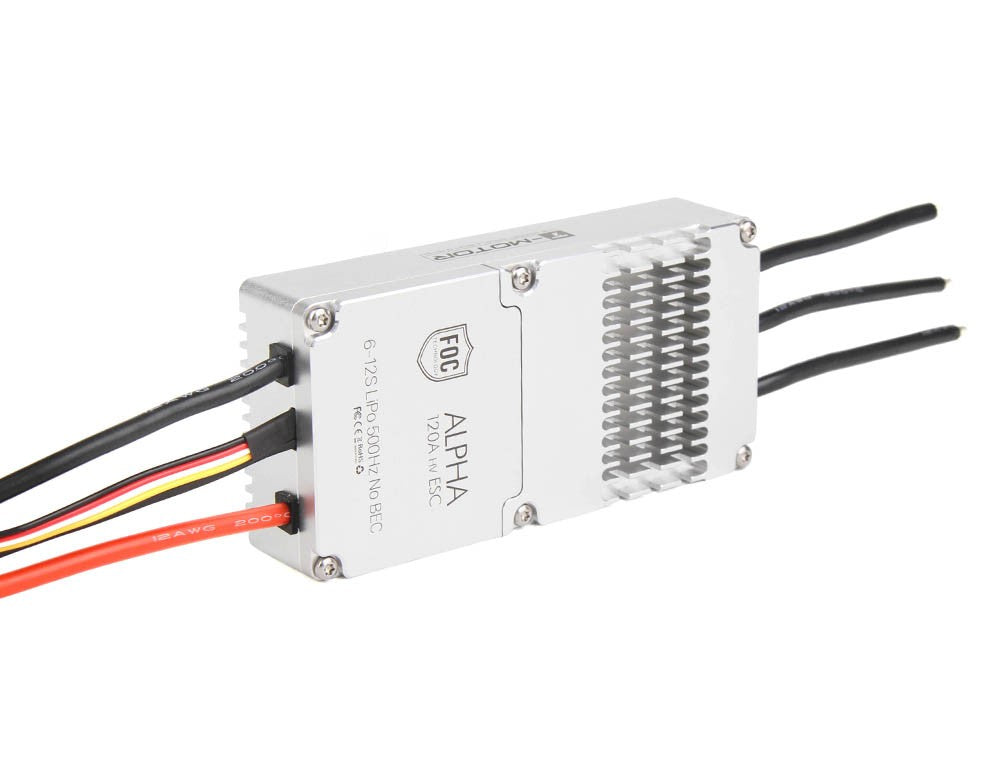

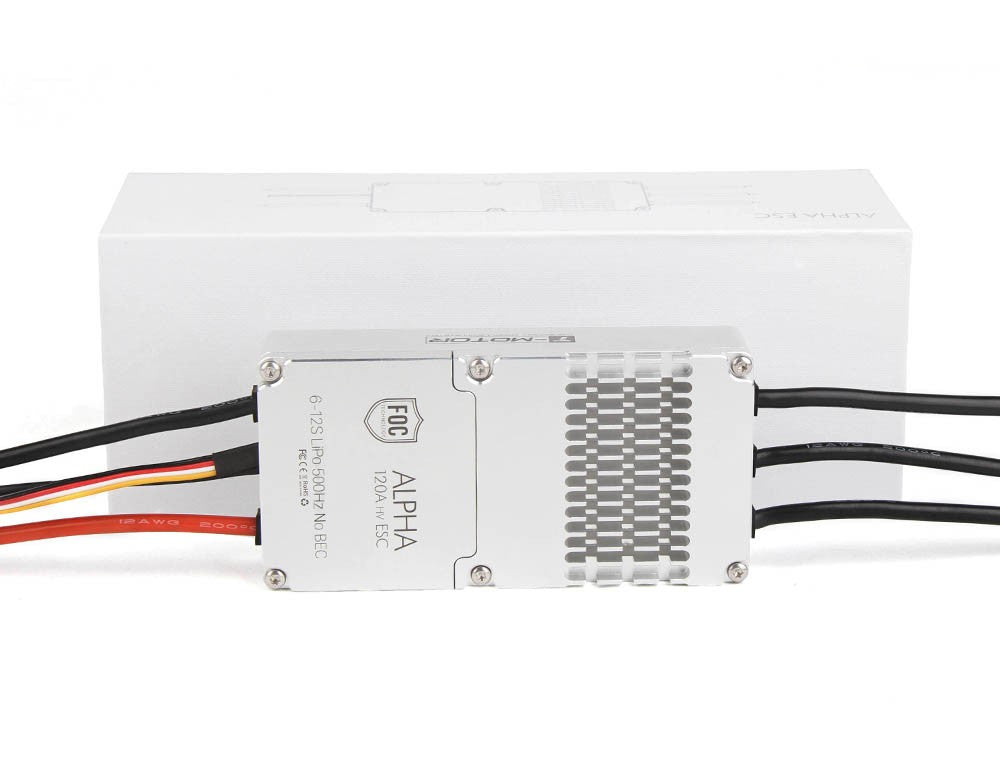

T-Motor ALPHA 120A 12S Multi-Rotor Drone ESC

T-Motor ALPHA 120A 12S Multi-Rotor Drone ESC

Availability: Pre-order – Shipped within 10-15 days
₹ 17,200.00 (Inc.GST)
₹ 17,200.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360014

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name TMOTOR ALPHA 120A 12S ESC
ESC Type Brushless ESC with FOC (Field Oriented Control)
Supported LiPo Voltage 6S – 12S (≈18 – 50.4 V)
Continuous Current 100 A
Peak Current (10 s) 120 A
Throttle Refresh Frequency 500 Hz
Throttle Signal Range 1100 – 1940 µs
Throttle Response Speed ~500 ms at startup, ~150 ms afterwards
BEC None (External BEC required)
Weight (Including Cables) ~359.5 g

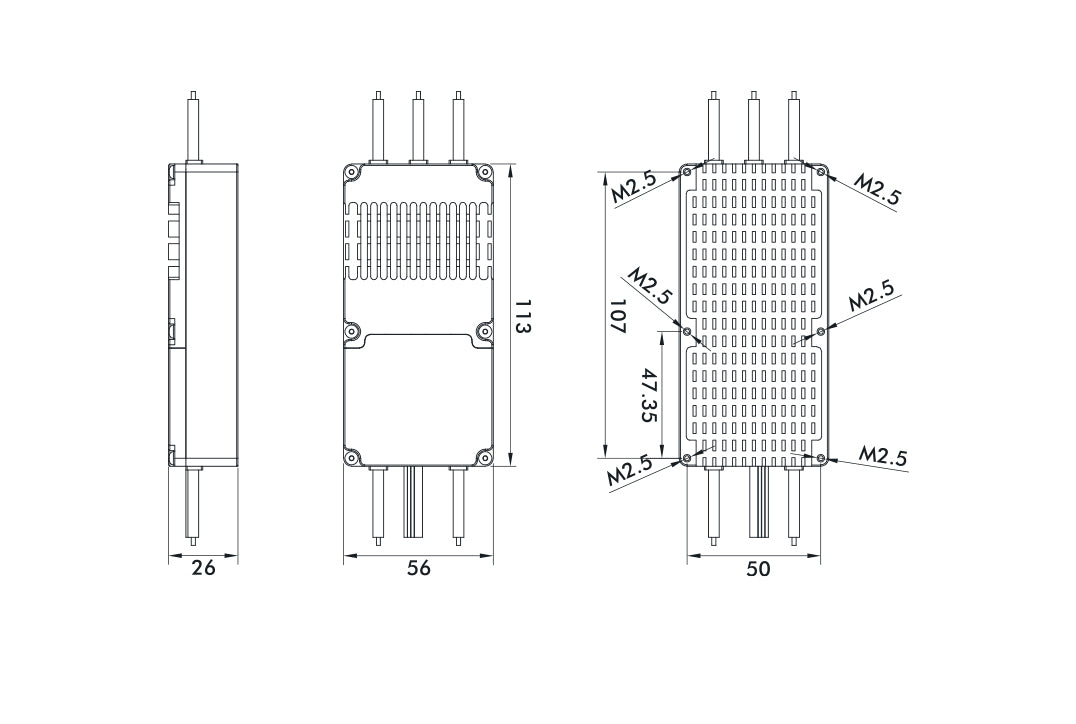

Dimensions (L×W×H) ~110 × 55 × 25 mm
Signal Cable PVC flat cable — multi-core
Motor Wires Silicone wire (12 AWG, deep orange)
Power Input Wires Silicone wire (12 AWG, red/black)
Ingress Protection IP55 (dust-resistant, waterproof & anti-corrosion)
Typical Applications Heavy-lift and professional UAVs & multirotors

T-MOTOR Alpha 120A 12S ESC delivers low noise, fast response, and high efficiency for multi-rotor UAVs. With active braking, IP55 protection, and built-in safeguards, it ensures stable, long-lasting performance. Compatible with U12II-KV120, U13II-KV130, and MN1010-KV90 motors. Contact us for motor type and KV details.

Application 60A 12S V1.2 ESC Highlights:

  • 500Hz, 6-12S LiPo
  • Ultra light shell
  • Dust-resistant, waterproof and anti-corrosion (IP55)
  • Short circuit, Low voltage, Overcurrent, Motor lock-up and Throttle loss protection
  • Fast Response, High Efficiency and stability

Packing List Includes:

  • 1 × T-Motor ALPHA 120A 12S ESC

1 months from date of supply against manufacturing defects only.

N/A

N/A
