| Parameter | Specification |
|---|---|

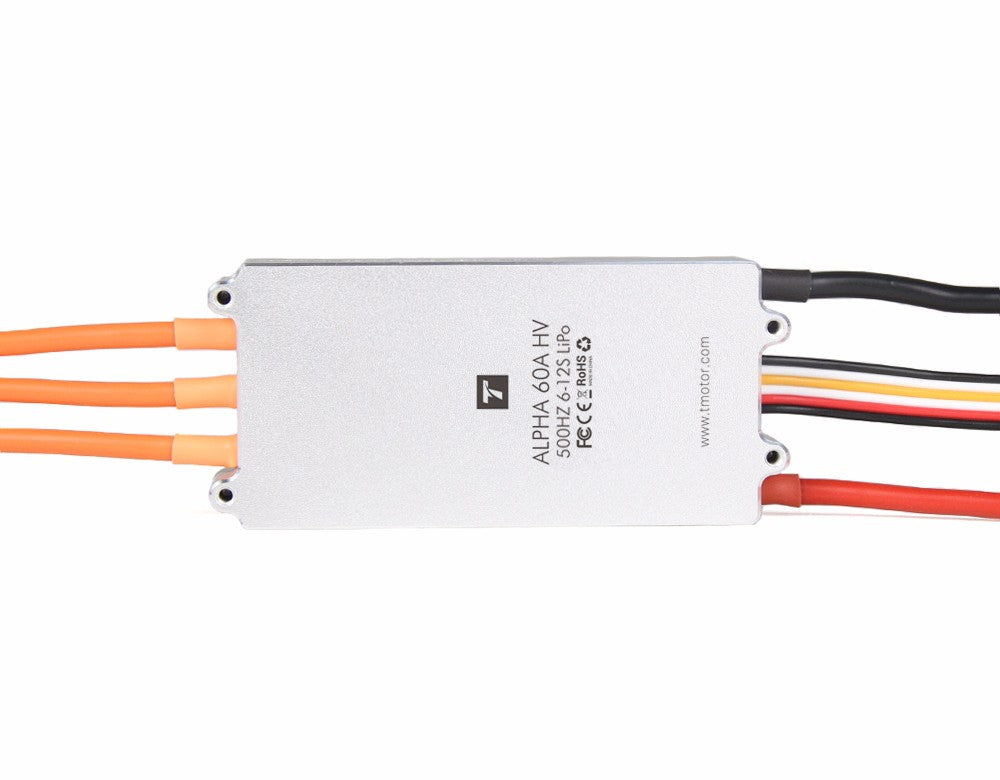

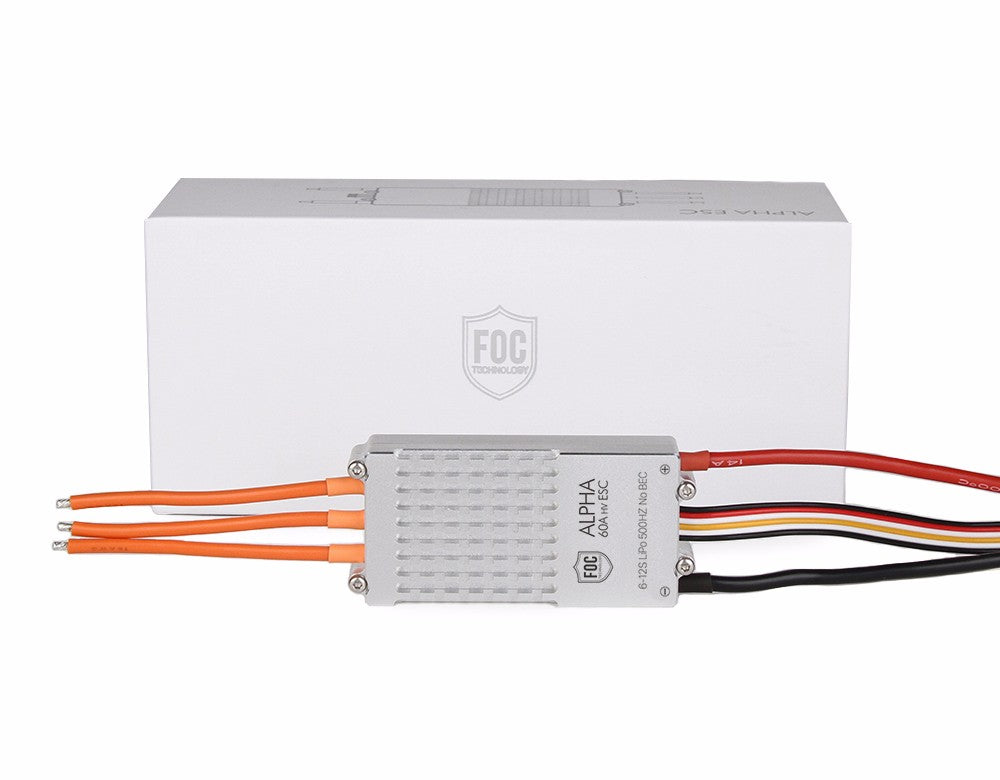

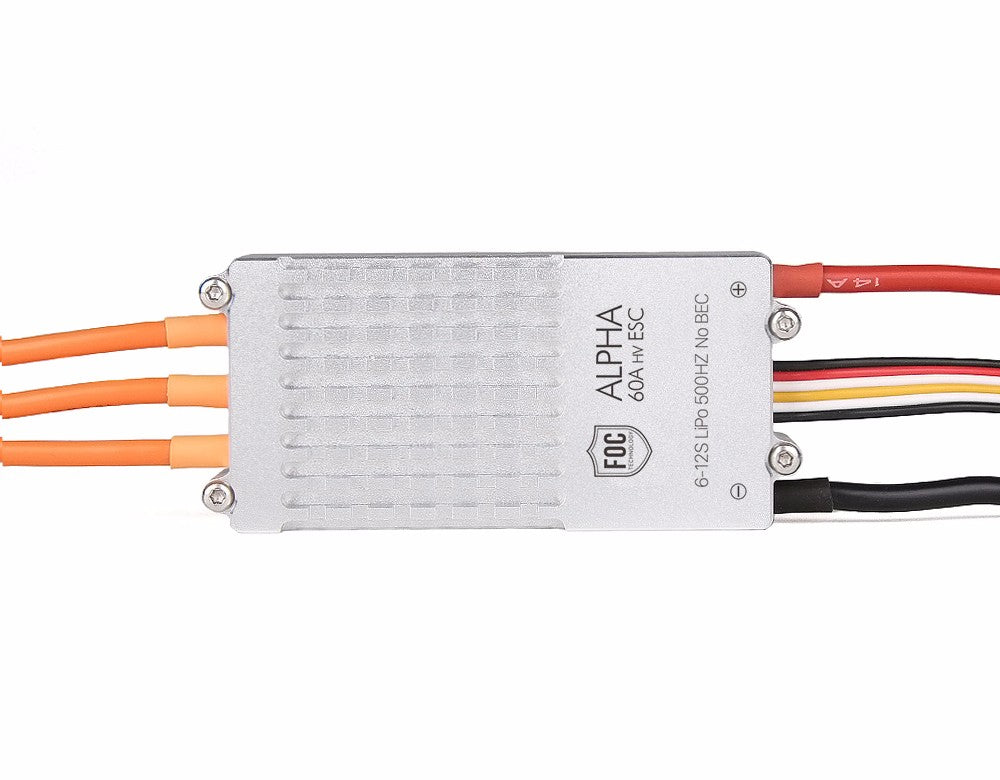

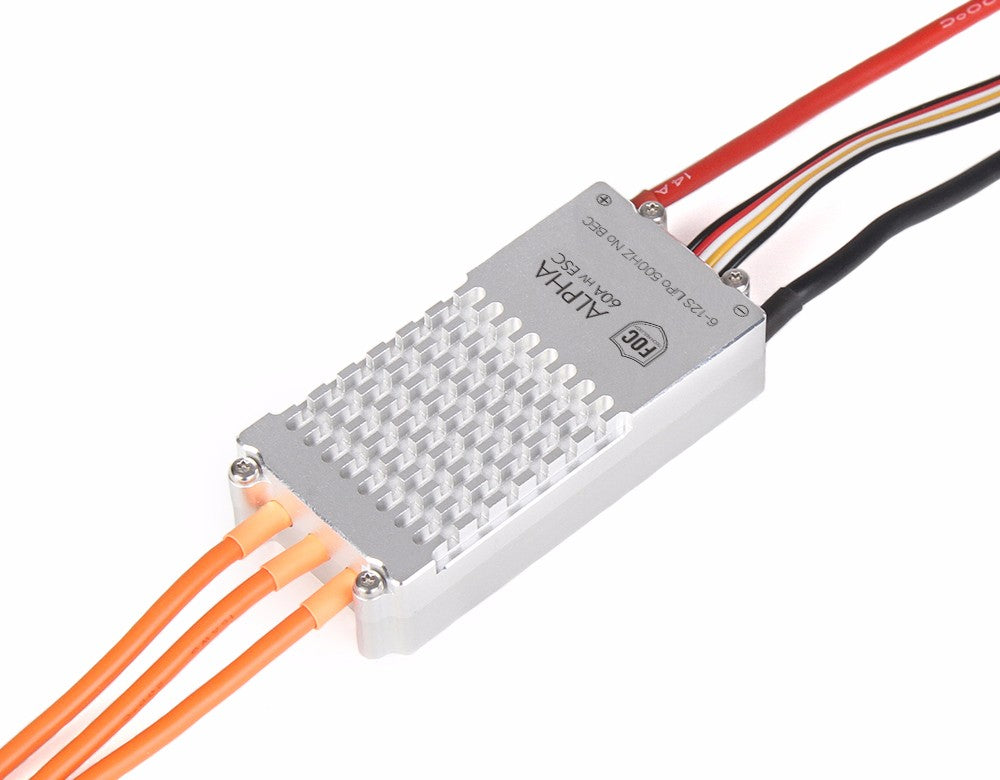

| Product Name | TMOTOR ALPHA 60A 12S V1.2 ESC |
| Category | Brushless Electronic Speed Controller (ESC) |
| ESC Technology | Vector Control + FOC |
| Continuous Current | 60 A |
| Peak Current (10 s) | ~80 A |
| Supported Voltage | 6S–12S (18 – 50.4 V) |
| BEC | None (External BEC required) |
| Throttle Signal Range | 1100–1940 µs |
| Throttle Refresh Frequency | 500 Hz |
| Standby Consumption | ≤ 50 mA |
| Throttle Response Speed | ~300 ms |
| Weight | ~73 g |

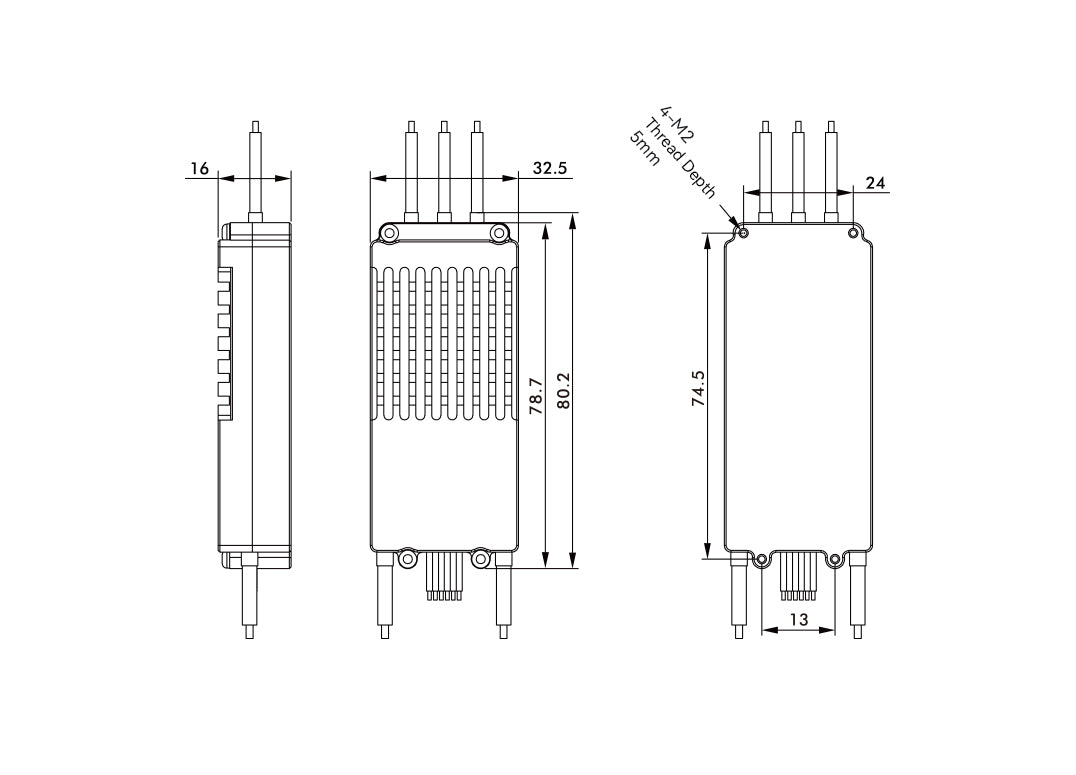

| Dimensions | ~78.7 × 32.5 × 16.2 mm |
| Protections | Over-current, motor lock-up, short circuit, low voltage |
| Cooling | Air-cooled |
| Typical Applications | Professional UAVs and multirotors |
T-MOTOR Alpha 60A 12S V1.2 ESC delivers precise, efficient motor control with FOC technology. It features low noise, fast response, high efficiency, and built-in protections, making it ideal for professional UAVs. Specify your motor type for compatibility.
Application 60A 12S V1.2 ESC Highlights:
- Low Noise
- Temperature and Interference
- High Efficiency
- Fast Response
Packing List Includes:
- 1 × T-Motor ALPHA 60A 12S V1.2 ESC
