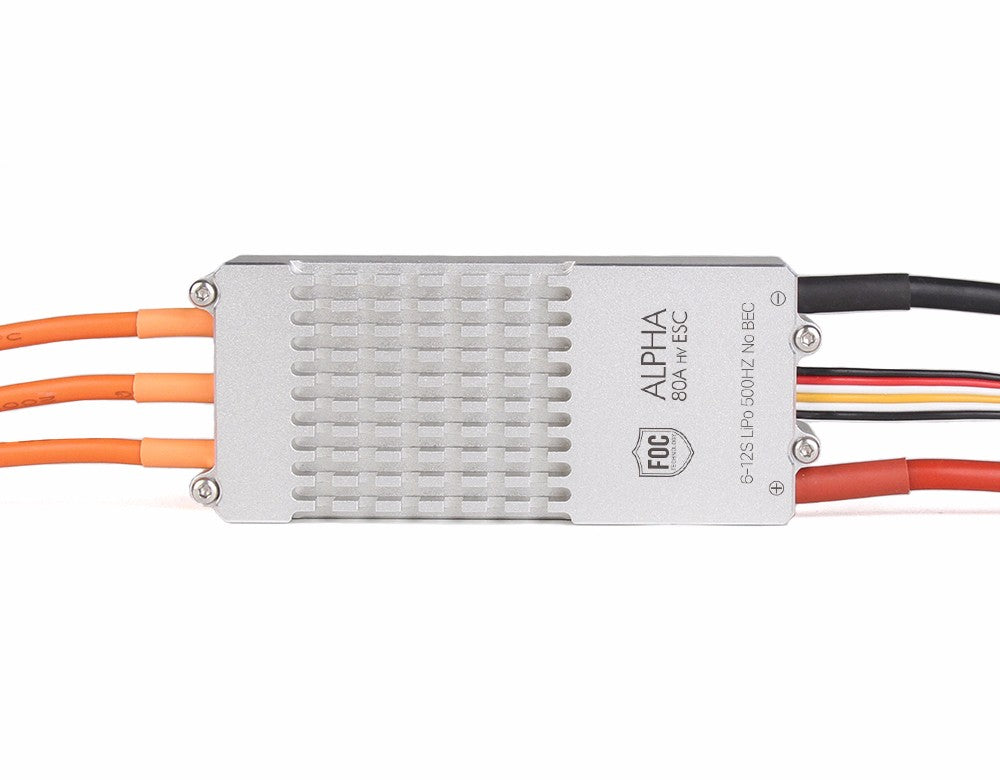

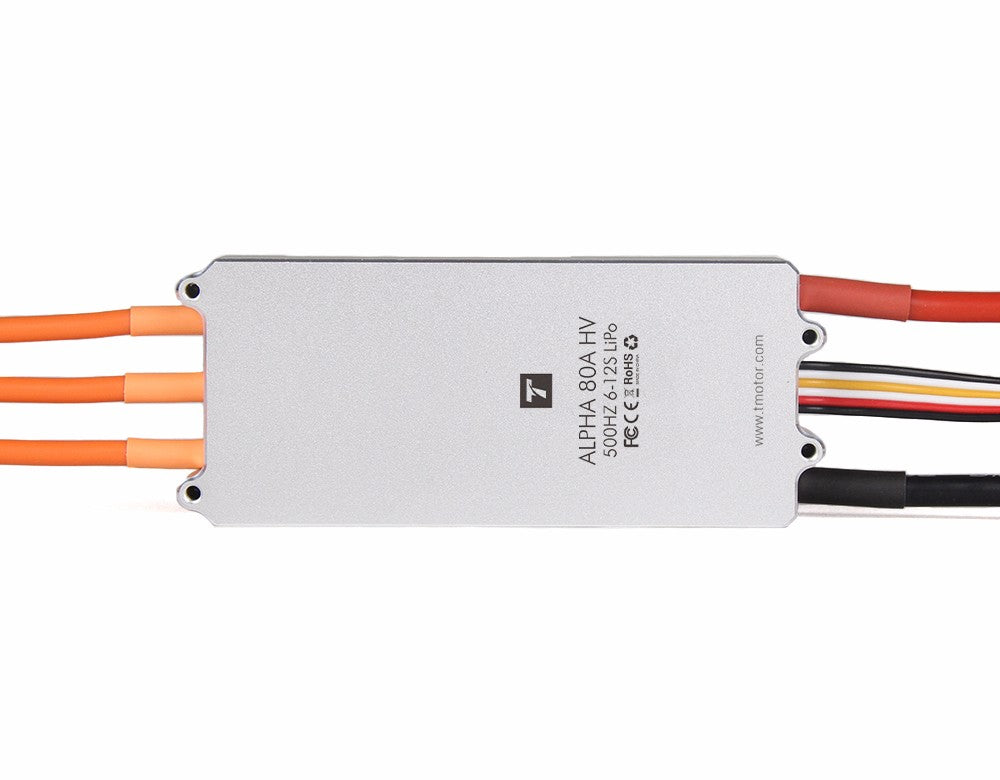

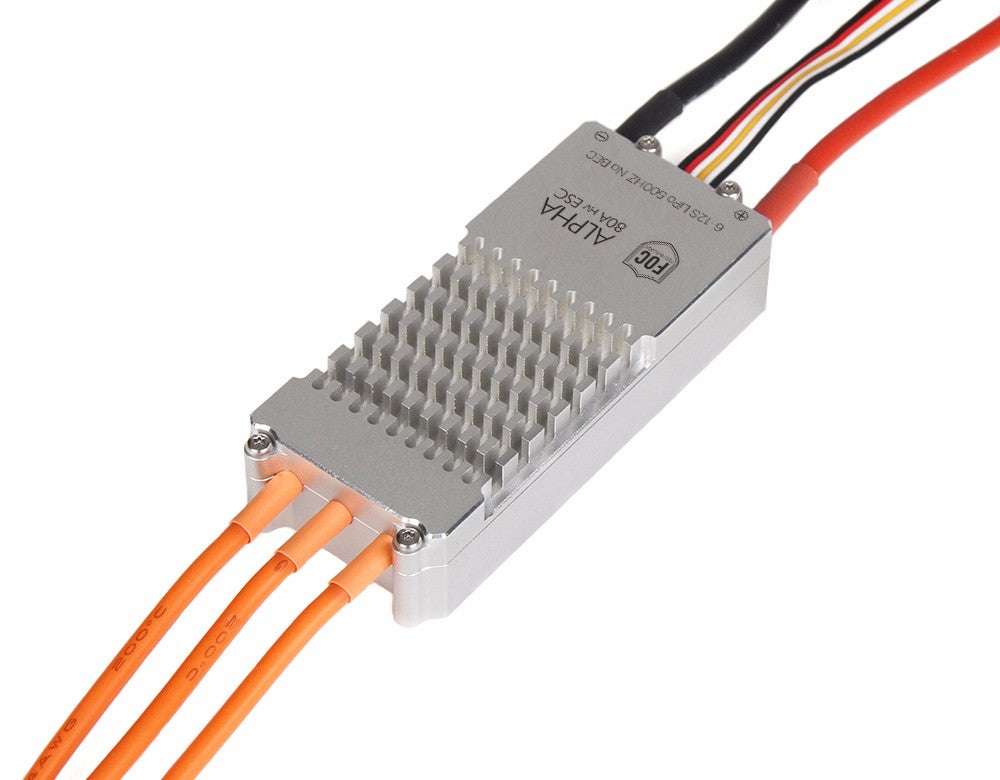

T-Motor ALPHA 80A 12S Multi-Rotor Drone ESC

T-Motor ALPHA 80A 12S Multi-Rotor Drone ESC

Availability: Pre-order – Shipped within 10-15 days
₹ 12,400.00 (Inc.GST)
₹ 12,400.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360013

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name T-Motor ALPHA 80A 12S ESC
ESC Type Brushless ESC with FOC
Category Professional UAV / Multirotor ESC
Continuous Current 80 A
Peak Current (10 s) 100 A
Input Voltage 12S - 18-52.2V
BEC None (External BEC required)
Throttle Signal Range 1100 – 1940 µs
Throttle Refresh Rate 500 Hz
Throttle Response Speed ~300 ms
Standby Current ≤ 50 mA

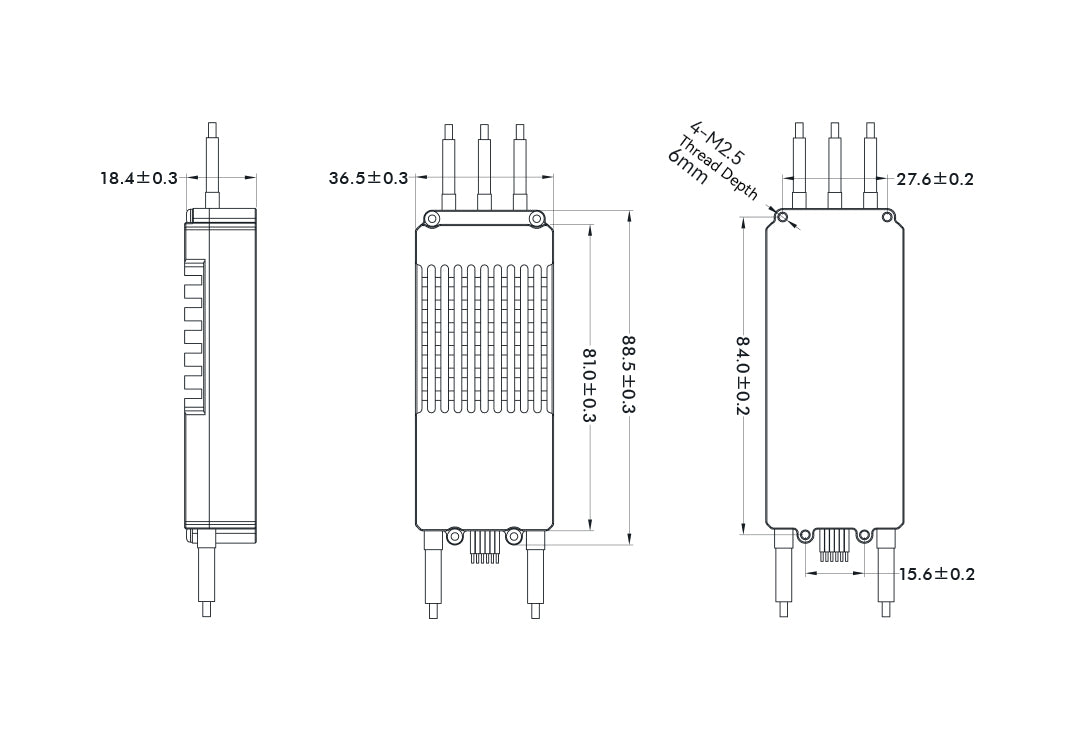

Dimensions ~88.5 × 36.6 × 19 mm
Weight (with cables) ~110 g
Power Input Wire 12 AWG Silicone Wire
Motor Output Wires 14 AWG Silicone Wire
Signal Cable Type Flat PVC multi-core
Cooling Method Natural air cooling
Operating Temperature −20 °C to 65 °C
Typical Applications Heavy-lift drones, industrial UAVs, cinema drones, mapping platforms

T-MOTOR Alpha 80A 12S ESC is designed for professional UAVs, featuring FOC (Sine Wave) technology and intelligent algorithms for precise, efficient, and stable motor control. It delivers low noise, low temperature, and minimal interference, ensuring reliable performance. With fast throttle response, high efficiency, and advanced protection, the Alpha 80A meets the demands of large UAVs, making it a trusted choice for professional applications.

Application 60A 12S V1.2 ESC Highlights:

  • Low Noise
  • Temperature and Interference
  • High Efficiency
  • Fast Response

Packing List Includes:

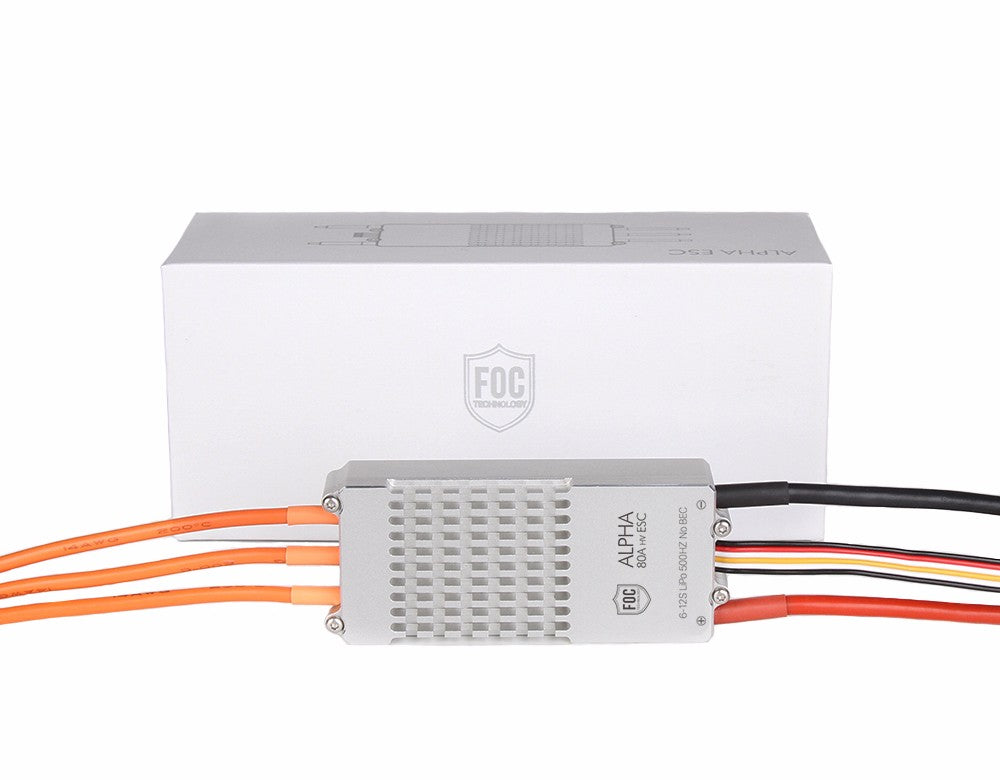

  • 1 × T-Motor ALPHA 80A 12S ESC

1 months from date of supply against manufacturing defects only.
