T-Motor V LINK 2.0

T-Motor V LINK 2.0

Availability: Pre-order – Shipped within 10-15 days
₹ 14,500.00 (Inc.GST)
₹ 14,500.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360049

Short Description:
  • ESC tuning
  • propulsion testing
  • long-endurance UAV development
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Details
Product Name V LINK 2.0
Device Type ESC Data Acquisition & Storage Module
Compatible ESC Series T-MOTOR V Series ESCs
Communication Interfaces Serial Port / CAN / USB
Supported Voltage 18–60V
Battery Compatibility 6S–14S LiPo
Dimensions 47.4 × 32.4 × 14.3 mm
Weight 29 g
PC Software Support Yes
Firmware Upgrade Support Yes
Offline Data Logging Supported
Real-Time Telemetry Supported
ESC Parameter Tuning Supported
Fault Data Download Supported
CAN Communication Supported
USB Communication Supported

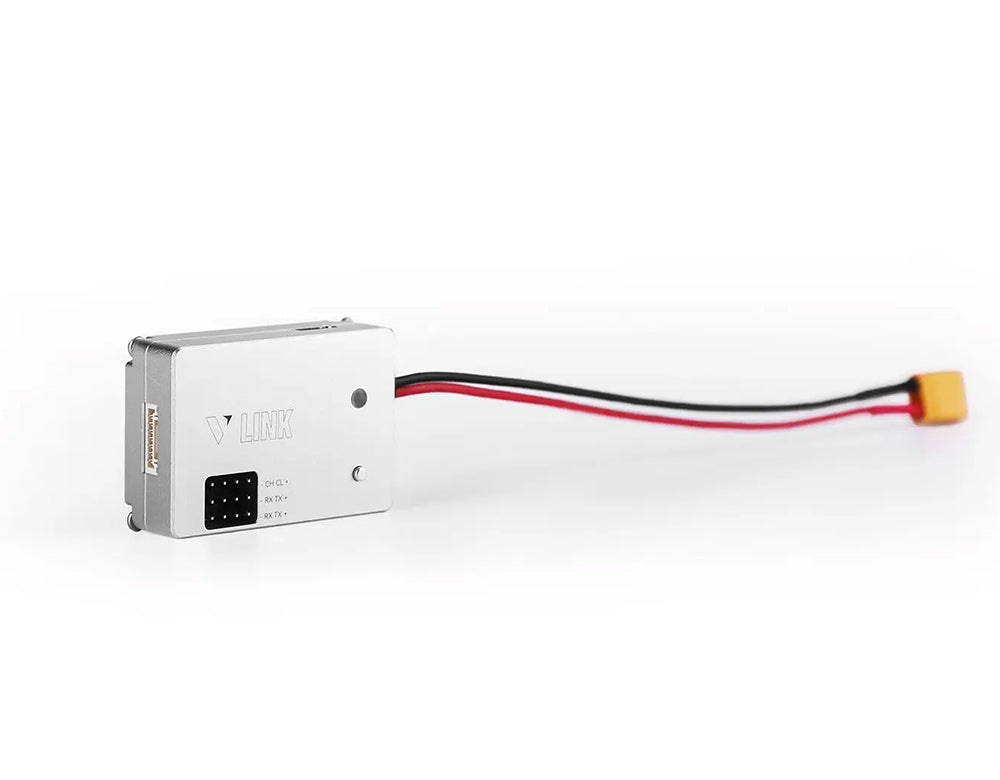

The T-MOTOR V LINK (also called V LINK 2.0) is a UAV ESC communication and telemetry data box designed for T-MOTOR V-Series ESCs. It integrates data acquisition, storage, firmware management, and ESC parameter configuration into a compact module for professional drone propulsion systems. It allows users to monitor propulsion performance, diagnose faults, and improve flight safety.

Application:

  • Industrial UAVs : Professional drone telemetry and diagnostics
  • Heavy-Lift Drones : Propulsion monitoring for large UAV systems
  • VTOL Aircraft : ESC tuning and operational analysis
  • Agricultural Drones : Flight logging and propulsion diagnostics
  • Research UAVs : Data collection for experimental platforms
  • Mapping & Survey Drones : Long-duration propulsion monitoring
  • UAV Maintenance : Fault detection and ESC troubleshooting
  • Flight Testing : Performance analysis during UAV development

Packing List Includes:

  • 1 × T-Motor V LINK 2.0

1 months from date of supply against manufacturing defects only.
