| Parameter | Details |
|---|---|
| Model | V60A 24S |
| ESC Type | BLDC FOC UAV ESC |
| Input Voltage | 12–24S LiPo (Max 105V) |
| Continuous Current | 35A |
| Peak Current (<10s) | 65A |
| Protocol Support | PWM / CAN |
| BEC | No |
| ESC Dimensions | 115 × 57 × 26.5 mm |
| Weight (Excluding Cable) | 180 g |
| Weight (Including Cable) | 283.5 g |
| Power Cable | 14AWG Silicone Wire |
| Motor Cable | 14AWG Silicone Wire |
| Signal Cable | Shielded 5-Core Cable |
| Encoder Cable | 24AWG Shielded Cable with M6 Aviation Connector |
| Throttle Range | 1040–1940 μs |
| Throttle Refresh Frequency | 50–500 Hz |
| Throttle Response Speed | 300 ms |
| Standby Consumption | ≤50 mA @ 100V |
| Recommended Motor | U13 II KV65 |
| Recommended Propeller | G32 |
| Operating Temperature | −20°C to +65°C |

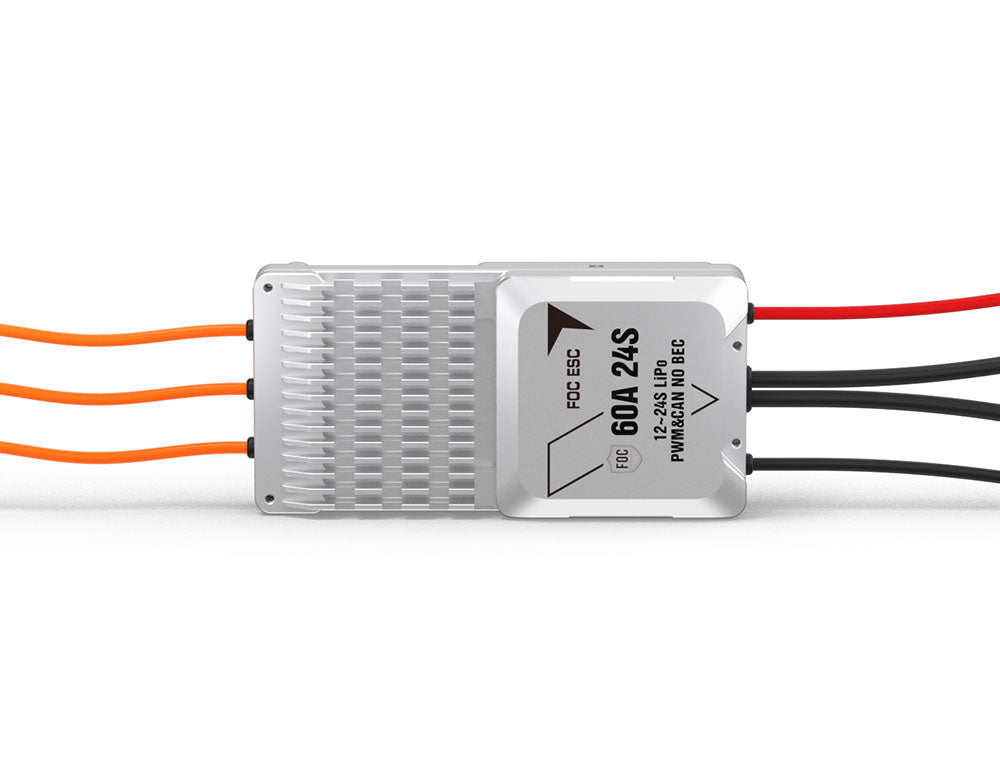

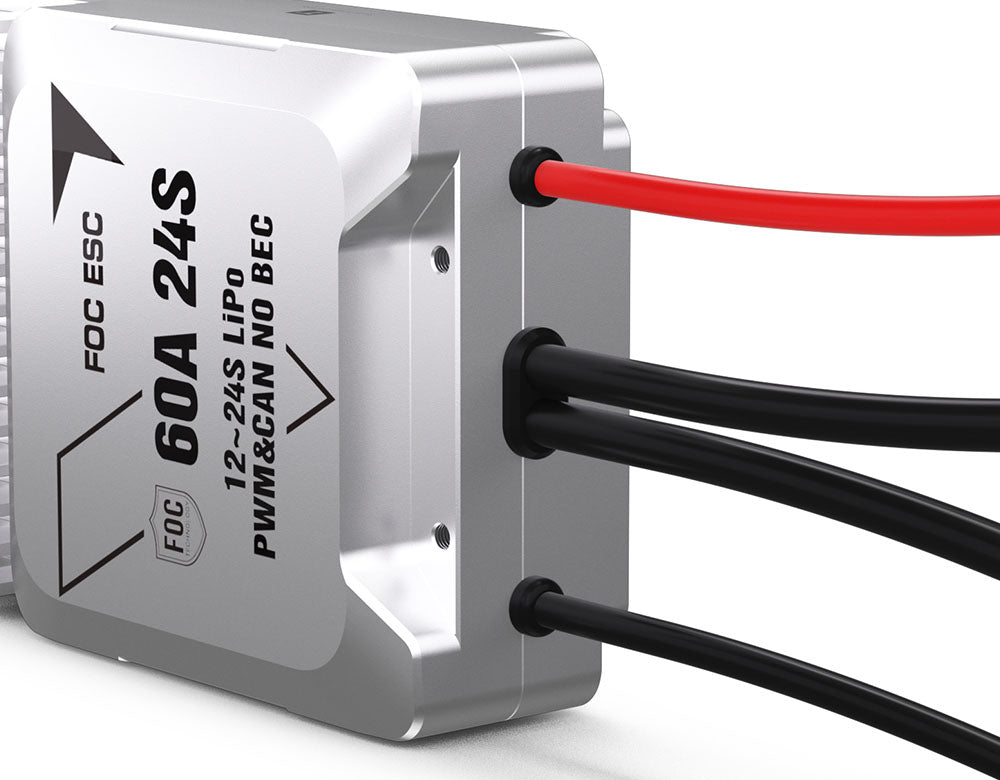

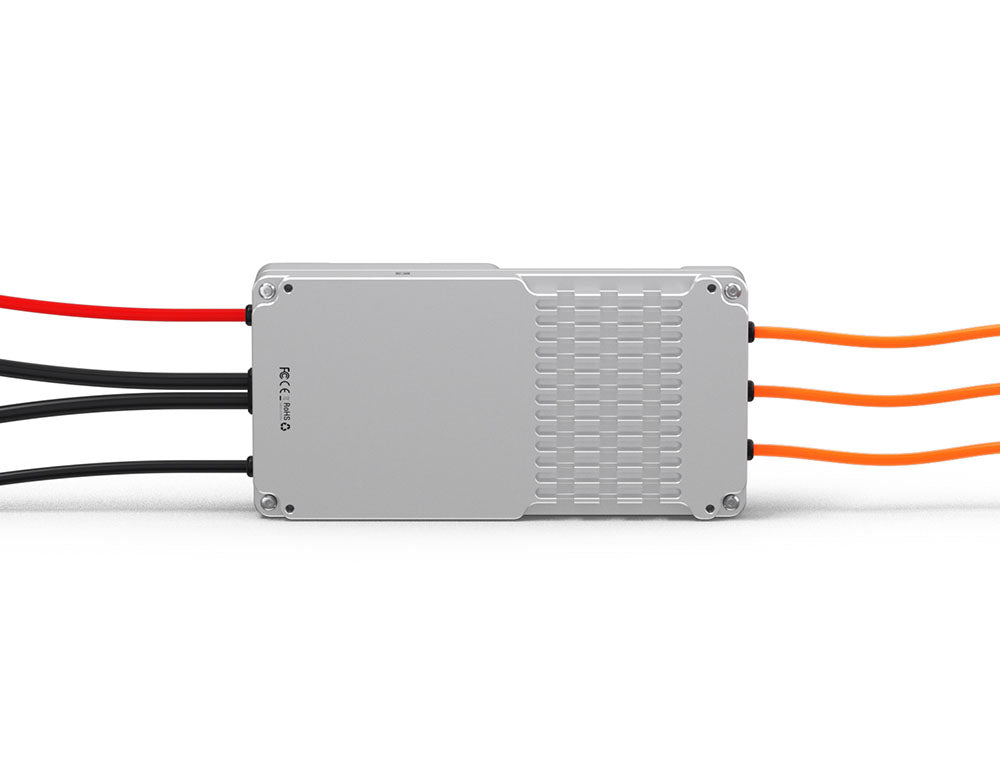

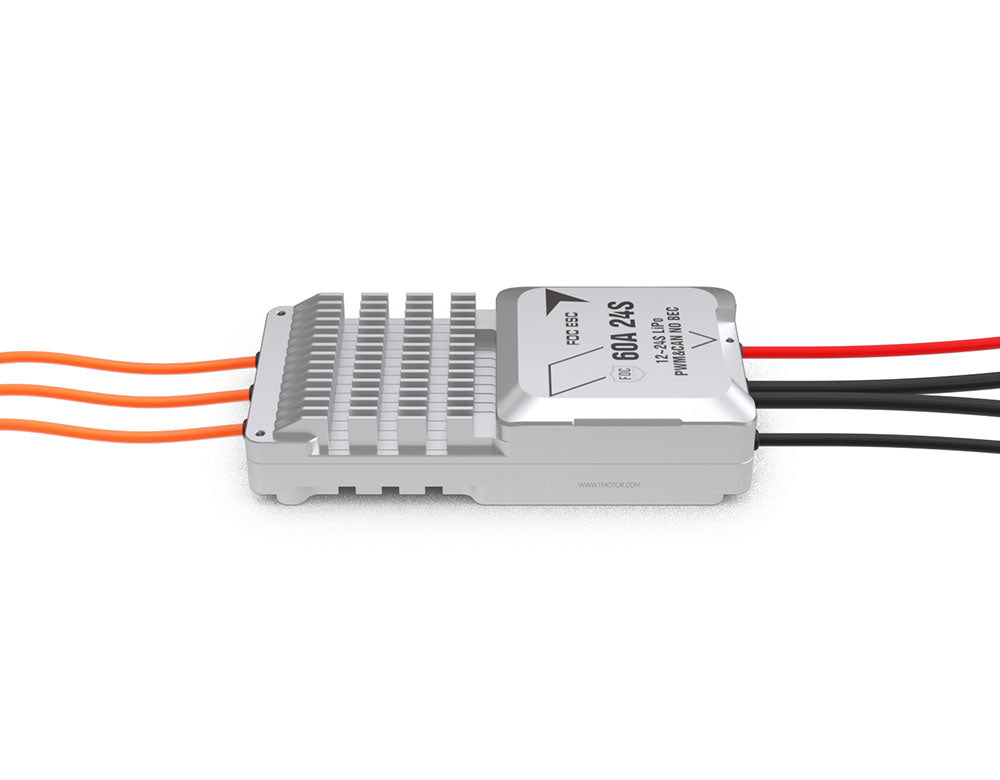

The T-MOTOR V60A 24S is a high-voltage industrial UAV ESC designed for heavy-lift drones, VTOL aircraft, and professional multirotor systems. It uses advanced FOC (Field-Oriented Control) technology for smoother throttle response, reduced noise, and improved efficiency in large propulsion systems operating up to 24S LiPo voltage.
Application:
- Industrial UAVs : Stable ESC control for commercial drones
- Heavy-Lift Multirotors : Smooth high-voltage propulsion systems
- VTOL Aircraft : Efficient transition and cruise control
- Mapping & Survey Drones : Low-noise precision flight systems
- Agricultural Drones : Reliable long-duration ESC operation
- Cinematic UAVs : Reduced vibration and smoother throttle response
- Research Platforms : CAN-enabled advanced UAV integration

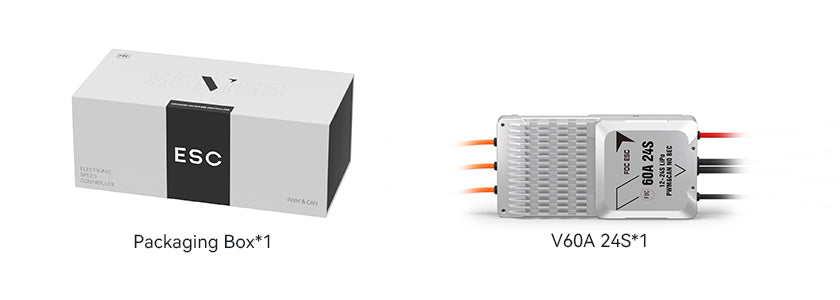

Packing List Includes:
- 1 × T-Motor V60A 24S VTOL UAV Drone ESC
