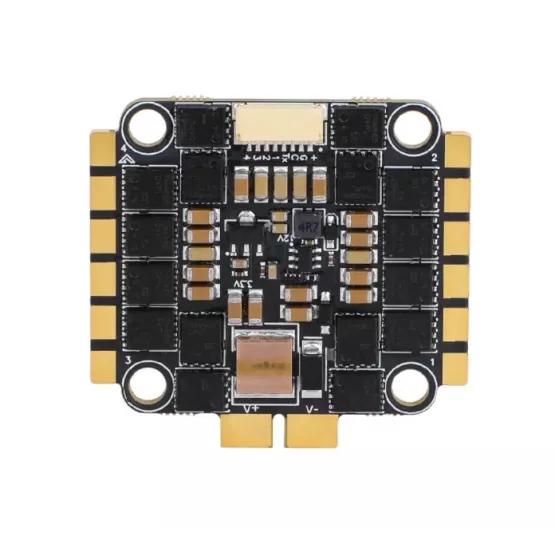

T-MOTOR Velox V70A SE 8S ESC – 4in1 with Native AM32 Firmware

T-MOTOR Velox V70A SE 8S ESC – 4in1 with Native AM32 Firmware

Availability: Pre-order – Shipped within 10-15 days
₹ 9,100.00 (Inc.GST)
₹ 9,100.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360048

Short Description:
  • High-performance 70A 4-in-1 brushless ESC
  • Supports 4S to 8S LiPo batteries
  • Native AM32 firmware for smooth motor control
  • AT32F421 high-speed processor onboard
  • Compact lightweight FPV racing design
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Details
Model Velox V70A SE 8S
ESC Type 4-in-1 Brushless ESC
Continuous Current 70A
Peak Current 75A
Input Voltage 4S–8S LiPo
Maximum Voltage ~33.6V
Firmware Native AM32
MCU AT32F421
Blackbox Memory 128MB
USB Interface USB Type-C

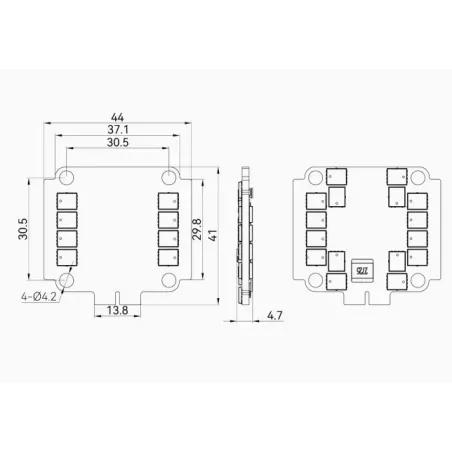

Mounting Pattern 30.5 × 30.5 mm (M3)
Dimensions 44.4 × 41 × 6 mm
Weight ~12.3 g
PCB Design Optimized Multi-Layer PCB
ESC Format 4-in-1 FPV ESC

The T-MOTOR Velox V70A SE is a high-current 4-in-1 ESC built for advanced FPV drones and heavy cinematic rigs. Supporting up to 8S LiPo voltage and powered by native AM32 firmware with an AT32F421 MCU, it delivers smooth throttle response, efficient motor control, and reliable high-voltage operation for demanding drone applications.

Key Features:

  • Native AM32 firmware for fast response and smooth throttle control
  • Supports high-voltage 8S LiPo systems
  • High continuous current handling up to 70A
  • Compact lightweight 4-in-1 layout
  • USB Type-C interface
  • 128MB onboard blackbox memory
  • Optimized multilayer PCB for thermal efficiency
  • Suitable for freestyle, cinematic, and long-range FPV drone

Packing List Includes:

  • 1 ×T-MOTOR Velox V70A SE 8S ESC – 4in1

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
