E-BIKE 24v 350watt BLDC 12 inch Wheel hub Motor kits

E-BIKE 24v 350watt BLDC 12 inch Wheel hub Motor kits

Availability: In stock (Shipped within 2-3 days )
₹ 13,335.00 (Inc.GST)
₹ 13,335.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970030

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Product Name 12-Inch BLDC Hub Motor
Motor Type Brushless DC (Hub Motor)
Rated Voltage 24V DC
Rated Power 350W
Peak Power ~450W
Wheel Size 12 Inch (~300 mm)
Rated Speed ~350 – 500 RPM
Vehicle Speed ~15 – 30 km/h
Rated Current ~13 – 16A
Peak Current ~18 – 22A
Torque High (hub torque)
Efficiency >80 – 88%
Load Capacity ~100 – 180 kg
Brake Type Disc / Drum (variant-based)
Drive Type Direct Hub Drive
Weight ~5 – 6.5 kg
Waterproof Rating IP54 / IP55
Applications Scooter, e-bike, EV




This 12-inch 24V 350W BLDC hub motor is commonly used across compact e-scooters, kids’ EVs, and lightweight mobility units.
This motor is manufactured with high-density copper windings, sealed waterproof casing (IP54–IP55), and 6-pole BLDC architecture for excellent acceleration at low speeds.

Key Features:

Compact & Efficient Design

  • Integrated motor + wheel (hub drive)
  • No external chain or gearbox required

High Torque at Low Speed

  • Output speed: ~300–500 RPM
  • Torque: ~18–22 Nm

Smooth & Silent Operation

  • BLDC technology (brushless)
  • Low noise and high efficiency
  • Vehicle speed: ~15–30 km/h

Electrical Performance

  • Rated voltage: 24V DC
  • Rated current: ~18–22A

Durable & Weather Resistant

  • Waterproof rating: IP54–IP55
  • Sealed aluminum housing

Easy Integration

  • Works with 24V BLDC controllers (15–17A)
  • Includes Hall sensors for precise control

Applications

  • Electric scooters (12-inch wheel systems)
  • Compact e-bikes & folding EVs
  • Robotics / AGV platforms
  • Kids EV vehicles & ride-ons
  • DIY EV conversion kits

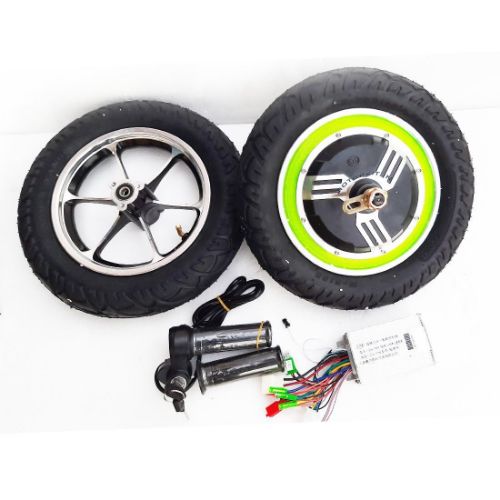

Packing List Includes:

1 x E-bike 24v 350watt BLDC 12 inch Wheel hub Motor

1 x E-Bike 24V 350Watt Controller

1 x E-bike 24V throttle

1 x E-bike 12 inch dummy Wheel

The product has a warranty for 6 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
