E-BIKE Hub Motor Scooter Kit 48V 1000W 10 Inch (BLDC)

E-BIKE Hub Motor Scooter Kit 48V 1000W 10 Inch (BLDC)

Availability: In stock (Shipped within 3-4 days )
₹ 10,500.00 (Inc.GST)
₹ 10,500.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970067

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 3 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Details
Motor Type BLDC Hub Motor
Rated Voltage 48V/60V
Rated Power 1000W
Wheel Size 10 Inch
Motor Winding Pure Copper
Waterproof Yes
Approx RPM 650 RPM
Approx Weight 8.8 kg
Torque 15–40 Nm
Top Speed 45–50 km/h
Load Capacity Up to 200 kg
Brake Type Drum Brake
Controller Included Yes
Throttle Included Yes
Rated Current
 21Amp
Peak Current
 32Amp
Recommended Battery 48V/60V 42Ah minimum
Installation Time Approx. 48–72 hours

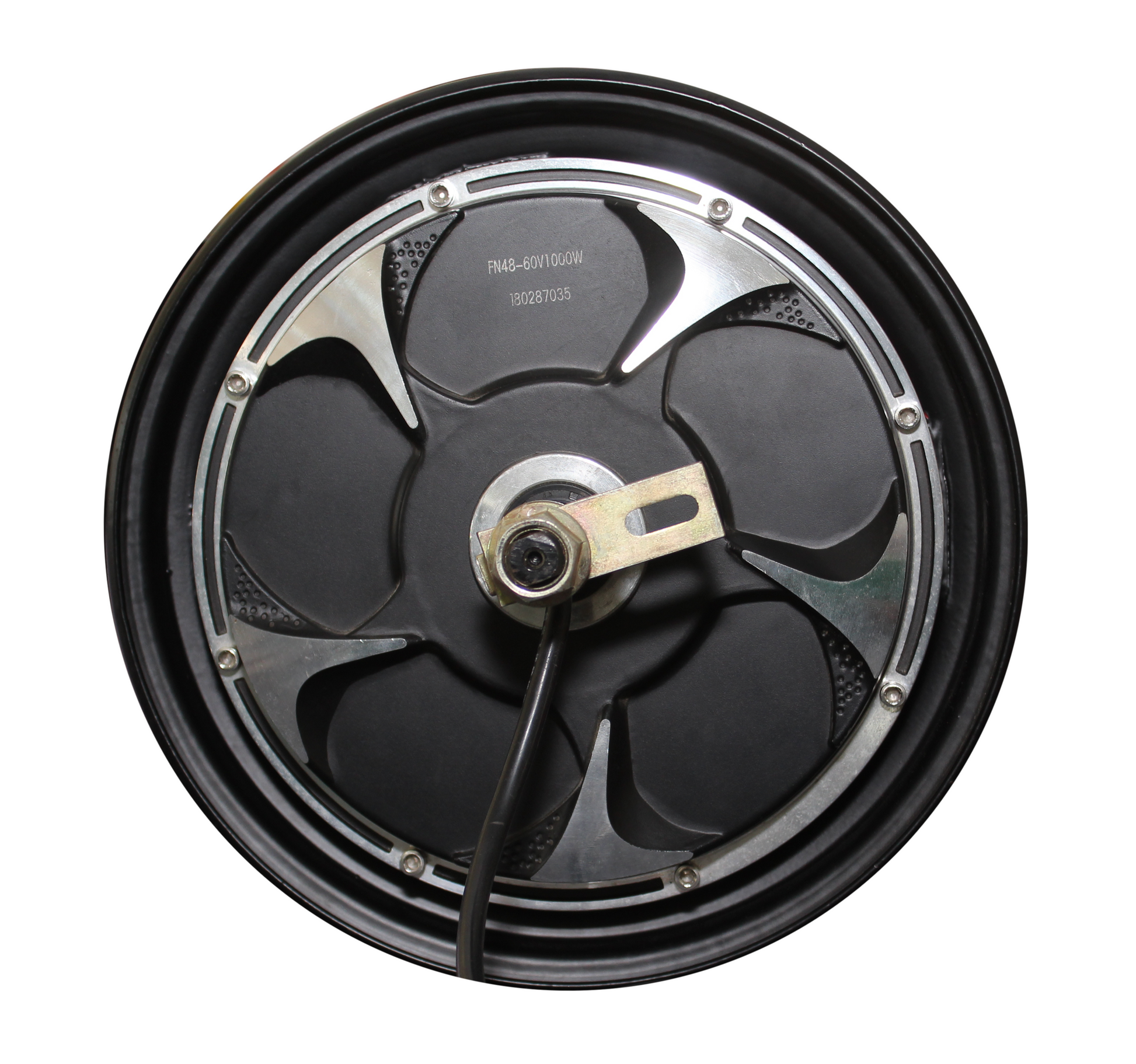

The Hub Motor Scooter Kit 48V 1000W 10 Inch is a BLDC (Brushless DC) electric conversion kit designed mainly for scooters such as Honda Activa, TVS Jupiter, Suzuki Access, and similar 2-wheelers. The motor is integrated directly into the wheel hub for compact installation and smooth operation

Key Features:

  • Waterproof hub motor design
  • Silent and smooth operation
  • Direct wheel drive with low maintenance
  • Reverse switch support
  • High torque for scooter conversion
  • Suitable for heavy loads up to 200 kg
  • Easy integration with 48V lithium battery systems

Applications

  • Convert petrol scooters like Activa / Jupiter into EVs
  • DIY electric bicycle builds
  • Small electric mobility vehicles
  • Urban cargo and delivery conversions
  • DIY EV conversion kits

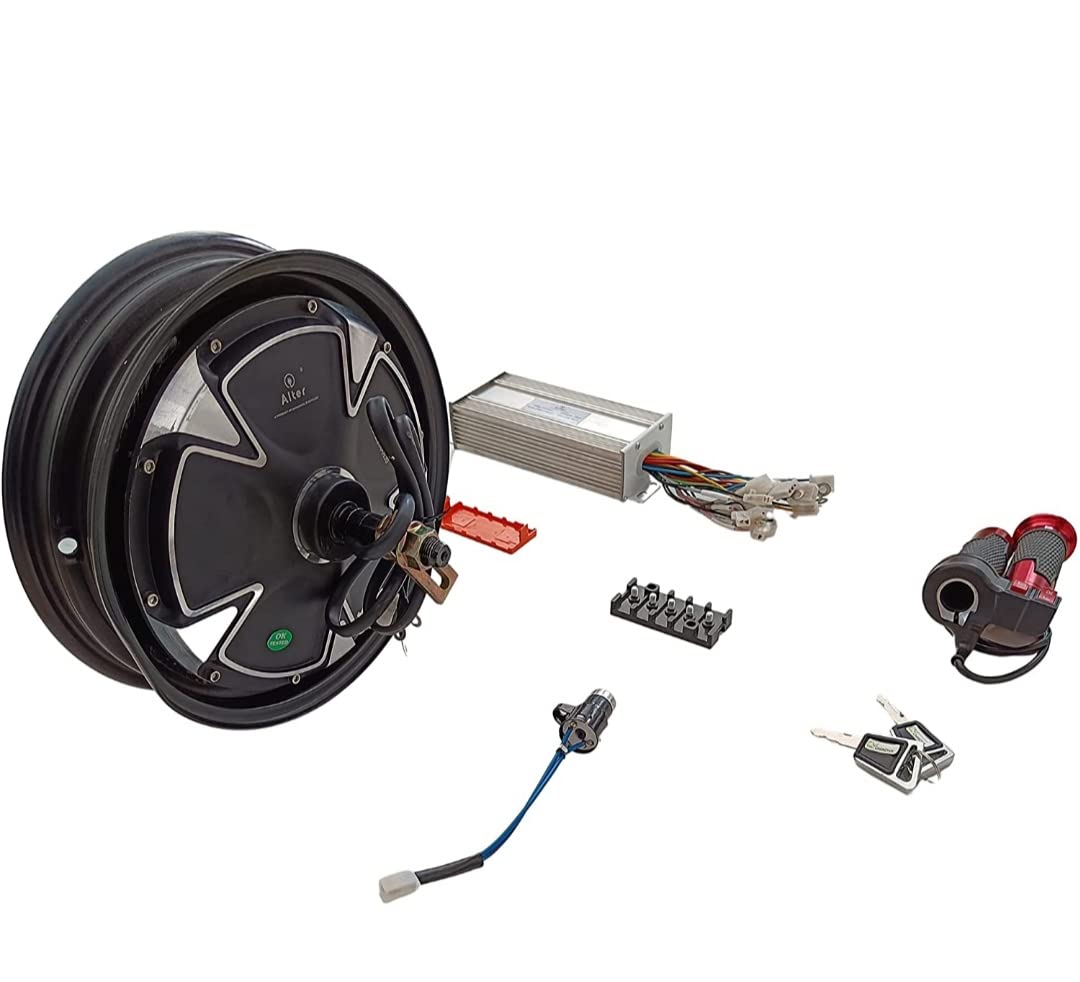

Packing List Includes:

  • 48V/60V 1000W Hub Motor with Drum Brake
  • 48V/60V Controller
  • 48V Throttle with Reverse Switch

The product has a warranty for 3 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
