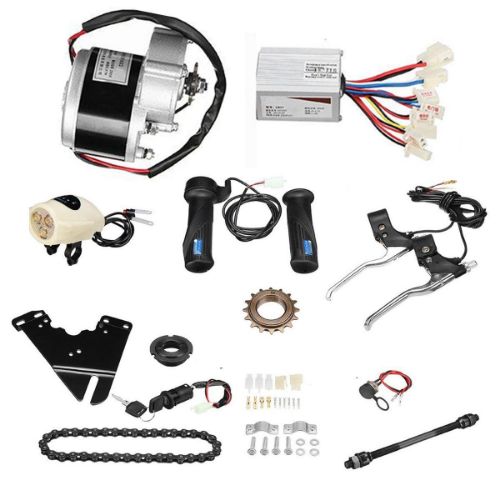

E-Bike MY1016Z2 24V 250W Motor DIY Electric Bicycle Kit

E-Bike MY1016Z2 24V 250W Motor DIY Electric Bicycle Kit

Availability: In stock (Shipped within 2-3 days)
₹ 4,250.00 (Inc.GST)
₹ 4,250.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970032

View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Parameter Specification
Motor Model MY1016Z2
Motor Type Brushed DC Geared Motor (PMDC)
Rated Voltage 24V DC
Rated Power 250W
No Load Speed ~3300 – 3850 RPM
Rated Speed (After Gear) ~300 – 400 RPM
Rated Current ~10 – 13.5A
No Load Current <2.2A
Gear Ratio ~9.78:1
Sprocket 9–11 Tooth (#25 chain)
Torque High (geared output)
Rotation Forward / Reverse
Controller Controller Type Brushed DC Motor Controller
Rated Voltage 24V DC
Rated Power 250W
Max Current ~20 – 25A
Control Method PWM
Throttle Input 1 – 4V
Under Voltage Protection ~20 – 20.5V
Brake Input Supported
Functions Forward / Reverse, Speed Control
Cooling Aluminum casing
Throttle Type Throttle
Operating Voltage 5V (from controller)
Output Signal 1 – 4V
Control Range 0 – 100% speed
Mount Type Handlebar
Wiring 3-wire (VCC, GND, Signal)
Extra Features Key switch* / battery indicator (optional)


The Xrobo.in MY1016Z2 is a compact 24 V, 250 W permanent‑magnet brushed DC motor coupled to a 9.78:1 spur gear reduction. The gearing drops the motor’s ~3000 RPM rated speed to ~300 RPM at the output shaft, trading speed for significantly higher wheel torque—ideal for hill starts, cargo hauling, and low‑speed control.

Electrical performance is optimized for typical e‑bike controllers: no‑load current is around 2.0–2.2 A at ≈3850 RPM, while full‑load operation draws up to ≈13.4 A at ≈3000 RPM with ≥78% efficiency. The motor supports direction reversal simply by swapping supply polarity. A 9‑tooth #410 bicycle‑chain sprocket is fitted for straightforward drivetrain integration.

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
