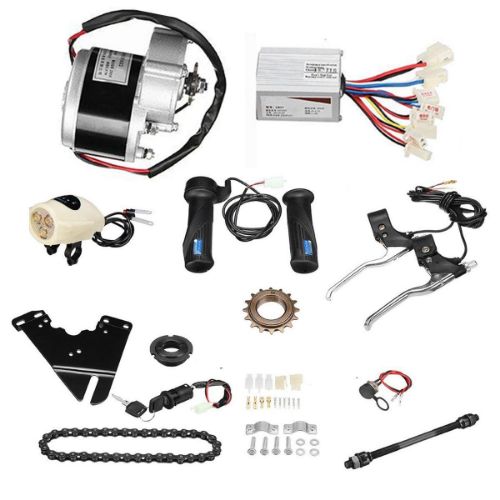

E-Bike MY1016Z3 24V 350W Motor DIY Electric Bicycle Kit

E-Bike MY1016Z3 24V 350W Motor DIY Electric Bicycle Kit

Availability: In stock (Shipped within 2-3 days)
₹ 5,430.00 (Inc.GST)
₹ 5,430.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970033

View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Parameter Specification
Motor Model MY1016Z3
Motor Type Brushed DC Geared Motor
Rated Voltage 24V DC
Rated Power 350W
Output Speed ~300 RPM
Rated Current ~19A
Gear Ratio ~9.78:1
Sprocket 9 Tooth (chain drive)
Torque High (geared output)
Application Chain-driven EV systems
Controller Controller Type Brushed DC Motor Controller
Rated Voltage 24V DC
Rated Power 350W
Max Current ~25A
Current Limit ~25–33A
Control Method PWM
Throttle Input 1 – 4V
Under Voltage Protection ~20 – 20.5V
Brake Input Supported
Connections Motor, battery, throttle, brake, ignition
Cooling Aluminum casing
Throttle Type Throttle
Operating Voltage 5V (from controller)
Output Signal 1 – 4V
Control Range 0 – 100% speed
Mount Type Handlebar
Wiring 3-wire (VCC, GND, Signal)
Features Key switch* / battery indicator (optional)


The Xrobo.in MY1016Z3 upgrades the MY1016Z platform to 350 W while retaining the compact 24 V form factor and the 9.78:1 reduction stage. With the same ≈300 RPM output, it provides additional torque headroom for heavier riders, steeper grades, and cargo applications.

Design details include a permanent‑magnet stator, four‑brush commutation and ball‑bearing support for the armature and gearbox shafts. The integrated 9‑tooth #410 sprocket mates with standard bicycle chains, simplifying drivetrain selection. Rotation direction is reversible by swapping supply polarity.

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
