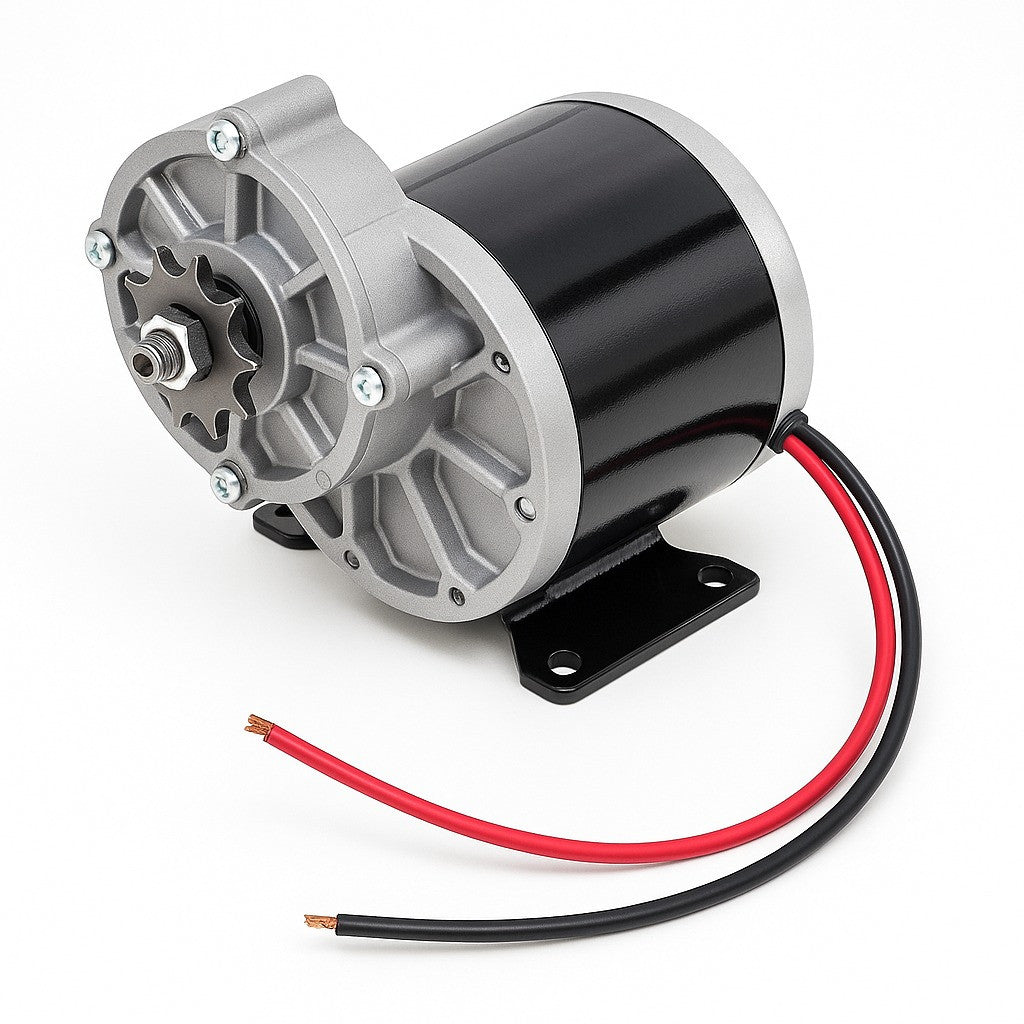

E-BIKE DC GEARED MOTOR MY1016Z3 24V 300RPM 350W

E-BIKE DC GEARED MOTOR MY1016Z3 24V 300RPM 350W

Availability: In stock
₹ 2,650.00 (Inc.GST)
₹ 2,650.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970015

Short Description:
  • 24V brushed DC motor
  • 350W power output
  • 300RPM rated speed
  • Strong metal body with Magnet

View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

Parameter

Specification

Rated Voltage

24 V DC

Rated Power

350 W

Base (Motor) Speed

≈3000–3200 RPM

Gear Ratio

9.78 : 1 (spur)

Output Shaft Speed

≈300 RPM

Sprocket

9‑tooth, #410 chain (1/2" × 1/8")

Rotation

Reversible by polarity swap

Mass

≈ 2.9–3.0 kg

The Xrobo.in MY1016Z3 upgrades the MY1016Z platform to 350 W while retaining the compact 24 V form factor and the 9.78:1 reduction stage. With the same ≈300 RPM output, it provides additional torque headroom for heavier riders, steeper grades, and cargo applications.

Design details include a permanent‑magnet stator, four‑brush commutation and ball‑bearing support for the armature and gearbox shafts. The integrated 9‑tooth #410 sprocket mates with standard bicycle chains, simplifying drivetrain selection. Rotation direction is reversible by swapping supply polarity.

For best results, pair with a matched 24 V controller with current limiting, and ensure airflow around the motor housing for sustained duty cycles.

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
