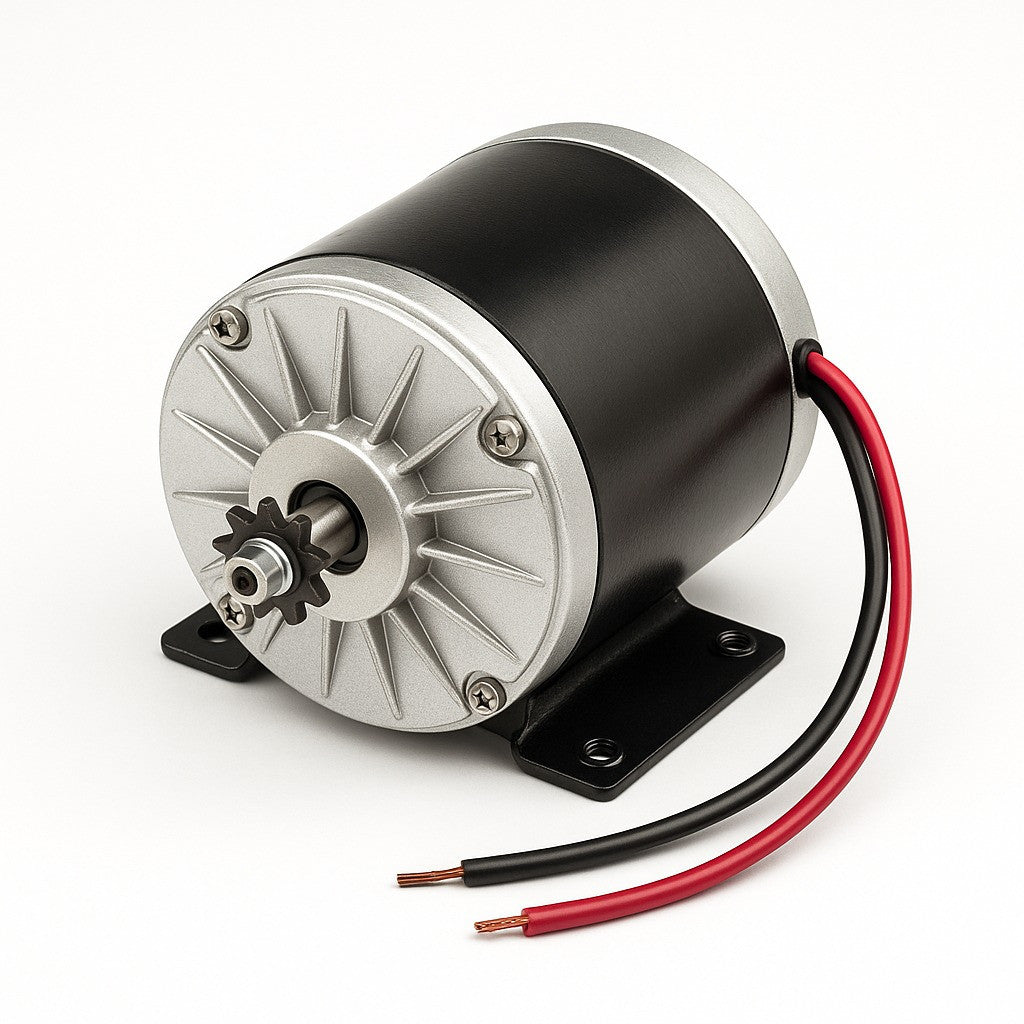

E-BIKE MY1016 24V 2750RPM 250W DC MOTOR

The MY1016 24V 250W motor is a popular choice for electric bicycle and scooter conversions due to its reliable performance and compact size. It runs on a 24 V DC supply and spins at about 2750 RPM under rated load (up to ~3000 RPM with no load). This high rotational speed, coupled with a continuous output of 250 W, allows the motor to propel light electric vehicles to moderate speeds. The motor delivers roughly 0.9–1.0 N·m of torque (approximately 100 N·cm or 9–10 kg·cm) at its rated output, which provides strong low-end pull for climbing gentle slopes or moving a bicycle and rider from a stop.

In operation, the MY1016 250W draws about 9–11 A at nominal load, and up to ~13.7 A at full load conditions. Its no-load current is only ~2 A, indicating good efficiency (around 75% efficient in optimal conditions). The motor’s design includes a robust permanent magnet stator and brushes rated for many hours of use. It features an 11-tooth sprocket for #25H chain (1/4″ pitch) on its output shaft, making it straightforward to connect to standard bicycle chains or reduction gearing. The output shaft is a thick ~12 mm diameter, ensuring it can handle the torque without flex. Weighing approximately 2.0–2.2 kg, this motor is heavier than smaller scooter motors, reflecting its solid build quality to handle continuous duty.

This MY1016 model is often found in commercial e-bikes and mobility scooters rated around 250 W. It comes in a durable cylindrical housing with mounting studs for easy installation onto frames. Thanks to its high-speed and high-torque balance, it’s ideal for DIY electric bicycle projects, electric go-karts for kids, or as replacement motor for factory-built e-scooters. Its responsive throttle behavior and reliable power output make it a trusted component in the light EV community.
