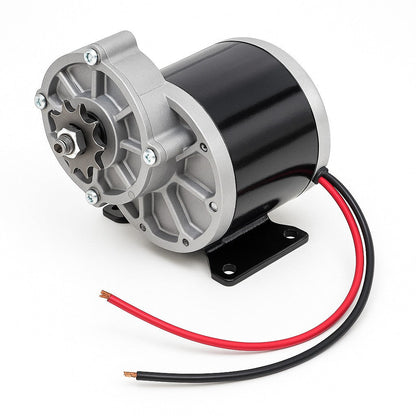

E-BIKE MY1016Z2 24V 300RPM 250W DC GEARED MOTOR

E-BIKE MY1016Z2 24V 300RPM 250W DC GEARED MOTOR

Availability: In stock
₹ 2,400.00 (Inc.GST)
₹ 2,400.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970014

Short Description:
  • 24V brushed DC motor
  • 250W power output
  • 300RPM rated speed
  • Strong metal body with Magnet
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

Parameter

Specification

Rated Voltage

24 V DC

Rated Power

250 W

Base (Motor) Speed

≈3000 RPM (no‑load ≈3850 RPM)

Gear Ratio

9.78 : 1 (spur)

Output Shaft Speed

≈300 RPM

No‑load Current

≤ 2.0–2.2 A

Full‑load Current

≤ 13.4 A

Efficiency

≥ 78% (typical)

Sprocket

9‑tooth, #410 chain (1/2" × 1/8")

Rotation

Reversible by polarity swap

Mass

≈ 2.6 kg

The Xrobo.in MY1016Z2 is a compact 24 V, 250 W permanent‑magnet brushed DC motor coupled to a 9.78:1 spur gear reduction. The gearing drops the motor’s ~3000 RPM rated speed to ~300 RPM at the output shaft, trading speed for significantly higher wheel torque—ideal for hill starts, cargo hauling, and low‑speed control.

Electrical performance is optimized for typical e‑bike controllers: no‑load current is around 2.0–2.2 A at ≈3850 RPM, while full‑load operation draws up to ≈13.4 A at ≈3000 RPM with ≥78% efficiency. The motor supports direction reversal simply by swapping supply polarity. A 9‑tooth #410 bicycle‑chain sprocket is fitted for straightforward drivetrain integration.

A rigid front face‑mount and 11 mm sprocket bore make mechanical installation simple. The sealed gearbox and ball‑bearing construction support continuous duty when paired with an appropriately rated controller and thermal protection.

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
