XROBO

E-BIKE MY102Z 36V 480RPM 450W DC GEARED MOTOR

E-BIKE MY102Z 36V 480RPM 450W DC GEARED MOTOR

Availability: Pre-order – Shipped within 15-20 days
₹ 5,900.00 (Inc.GST)
₹ 5,900.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970016

Short Description:
  • 24V brushed DC motor
  • 450W power output
  • 480RPM rated speed
  • Strong metal body with Magnet
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

Parameter

Specification

Rated Voltage

36V DC

Rated Power

450 W

Motor Speed

≈3000 RPM (no‑load ≈3400 RPM)

Gear Ratio

6.67 : 1 (spur)

Output Shaft Speed

≈450–480 RPM

No‑load Current

≤ 2.5 A

Full‑load Current

≤ 24 A

Efficiency

≈ 78% (typical)

Sprocket

10‑tooth for #40/#41/#420 chain

Rotation

Reversible by polarity swap

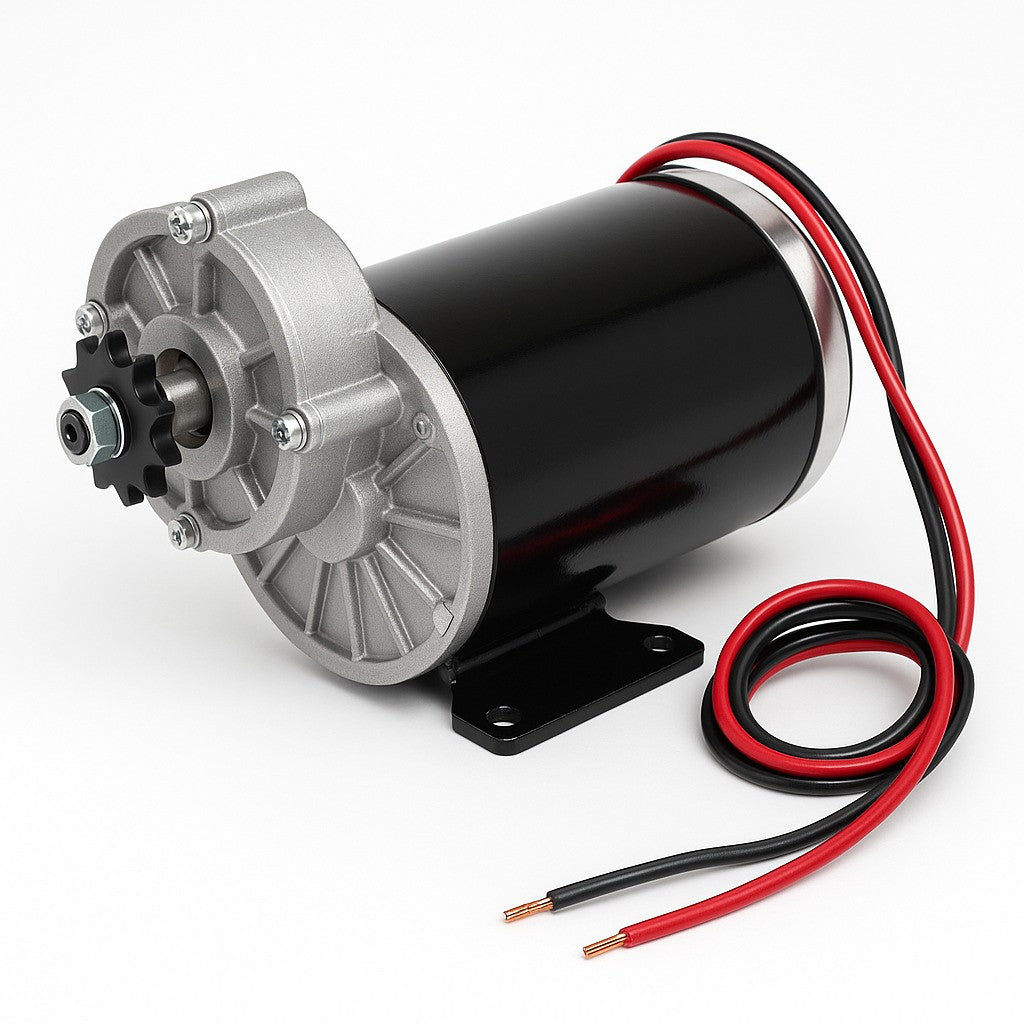

The Xrobo.in MY102Z 24 V 450 W geared DC motor combines a high‑speed permanent‑magnet armature with a 6.67:1 spur reduction, delivering solid wheel torque while maintaining a practical cruising speed. At the motor, rated speed is ≈3000 RPM (no‑load ≈3400 RPM); after reduction the output shaft runs ≈450–480 RPM, well‑suited to mid‑drive or chain‑drive e‑bike layouts.

Electrical loading is straightforward for 24 V controllers: no‑load current is typically ≤2.5 A and full‑load current around ≤24 A. Durable four‑brush commutation with ball bearings supports sustained operation, and direction can be reversed by swapping the supply polarity.

The supplied 10‑tooth sprocket fits #40/#41/#420 chains used on many go‑kart and heavy‑duty bicycle drivetrains. For lighter bicycle chains, an appropriate sprocket can be swapped in.

The product has a warranty for 6 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
