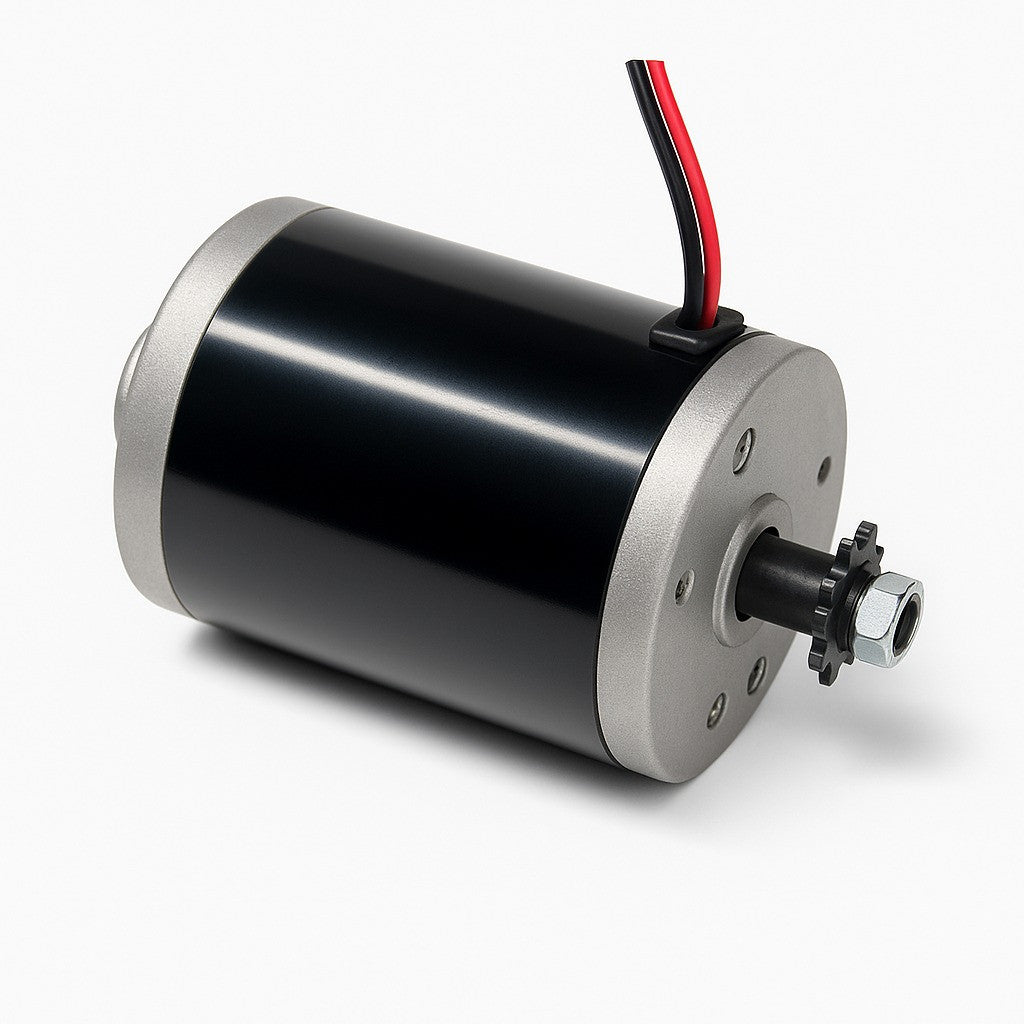

E-BIKE MY6812 12V 2750RPM 100W DC MOTOR

E-BIKE MY6812 12V 2750RPM 100W DC MOTOR

Availability: Pre-order – Shipped within 15-20 days
₹ 944.00 (Inc.GST)
₹ 750.00 ₹ 944.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970009

Short Description:
  • 12V brushed DC motor
  • 100W power output
  • 2750 RPM rated speed
  • Strong metal body with Magnet

Select below products to add together

  • E-bike MY1016 24v 250W Dc Speed Controller
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information

Parameter

Value

Motor Type

Brushed DC (Permanent Magnet)

Model Number

MY6812 (100 W variant)

Nominal Voltage

12 V DC

Rated Output Power

100 W

Rated Speed (Loaded)

~2750 RPM

No-load Speed

~3550 RPM (approx.)

Rated Torque

~0.45 N·m (≈4.6 kg·cm)

Rated Current

< 7.0 A

No-load Current

< 0.6 A

Sprocket

11-tooth #25 chain (pitch 6.35 mm)

Shaft Diameter

8 mm (with thread for sprocket nut)

Dimensions (L×D)

120 mm × 68 mm (approx., same as 150W)

Weight

~1.06 kg (motor only)

Efficiency

> 70%

Recommended Use

Kids’ e-scooters, DIY e-bikes, robotics, motorized toys

The MY6812 12V 100W motor is a popular compact DC motor well-suited for smaller electric vehicles and DIY builds. Running on 12 V supply, it achieves about 2750 RPM under load (around 3550 RPM at no-load), giving your scooter or mini bike a zippy performance. Though smaller in output than its 150W counterpart, this 100W motor still provides a solid torque of approximately 0.45 N·m, which is sufficient for powering lightweight scooters, kids’ ride-ons, or driving mechanisms in robots. The motor’s low no-load current (<0.6 A) and moderate full-load current (~7 A) mean it’s quite efficient and won’t drain batteries too quickly.

Constructed as a permanent-magnet brushed motor, the MY6812 100W is valued for its robustness and simplicity. It features an 11-tooth sprocket pre-fitted for a #25 (1/4″ pitch) chain drive, which makes it easy to integrate with bicycle chains or scooter drive chains. The output shaft is 8 mm in diameter and includes a threaded end to secure the sprocket. The motor’s housing is made from sturdy aluminum alloy, providing durability while keeping weight low (about 1.05–1.1 kg). This motor is extremely simple to use – to run it forward or reverse, you simply apply 12 V DC and swap polarity to change direction. It’s commonly found in electric ride-on toys, small e-bicycles, portable conveyors, or even combat robots, thanks to its balance of lightweight and decent power output. Overall, the MY6812 100W motor is a reliable “little workhorse” DC motor for any project needing around 0.1 kW of power.

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
