T-Motor A6-M-12S Modular Propulsion System for Agricultural Drone

T-Motor A6-M-12S Modular Propulsion System for Agricultural Drone

Availability: Pre-order – Shipped within 15-20 days
₹ 17,800.00 (Inc.GST)
₹ 17,800.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360009

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model Name A6-M-12S Modular Propulsion System
Rated Thrust (per arm) ~2 – 2.5 kg
Maximum Thrust ~7.5 kg
Recommended Take-off Weight 8-10 Kg quadcopter / 12-15 Kg hexacopter
System Weight (incl. prop) ~380 g
Tube Diameter 25 mm
Recommended Battery 12S
Motor KV 160 KV
Motor Stator Size 60 × 9 mm
ESC Max Voltage ~61 V
ESC Peak Current 40 A
Control Protocols PWM / CAN (DRONE CAN, UAV CAN, Cube CAN)
Propeller Model MF2311P (Polymer Folding)
Propeller Size ~23 inch (585 mm)
Wire Material Power: 16 AWG red/black; Signal: Teflon 5-pin
IP Rating IPX6
Operating Temp Range −20 °C to +55 °C

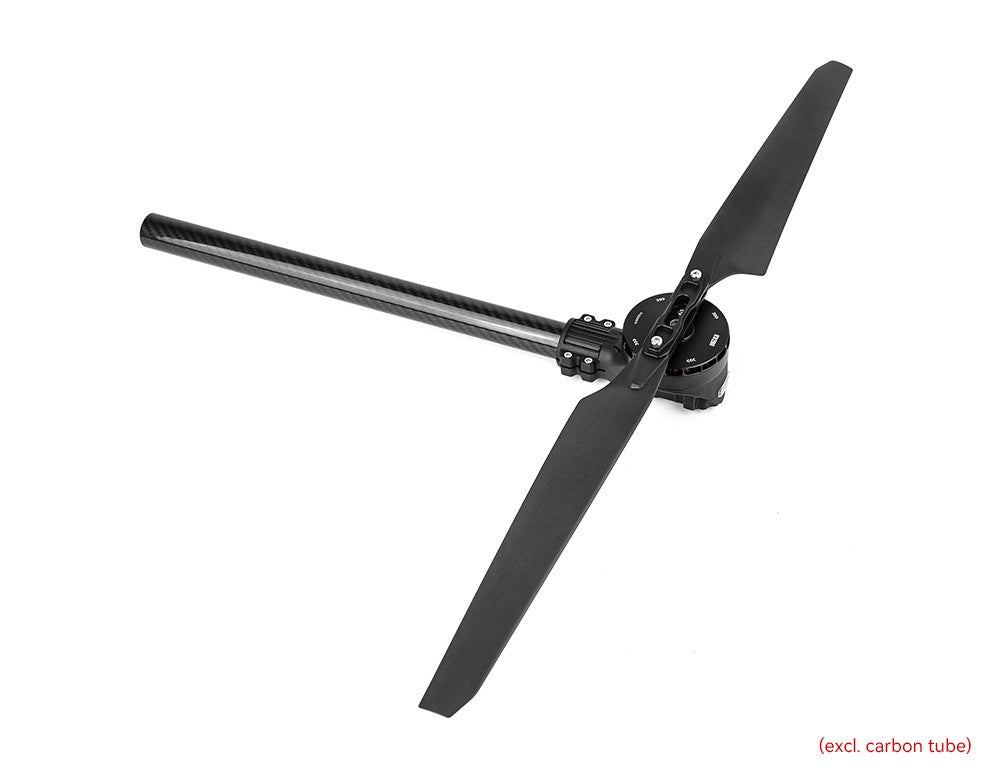

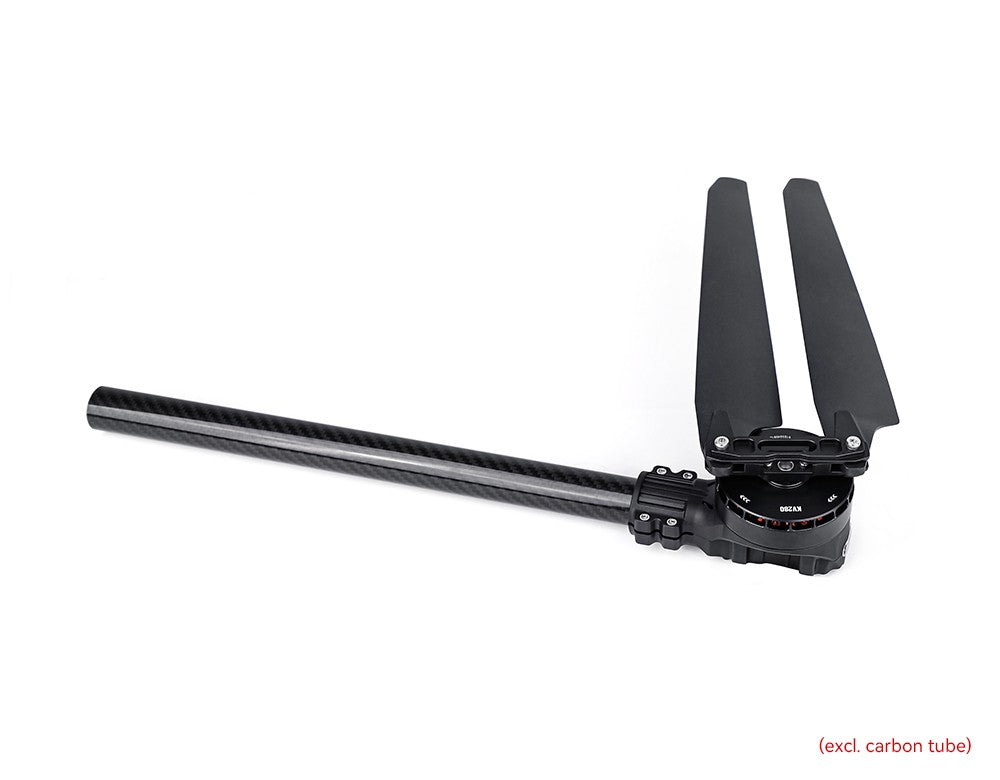

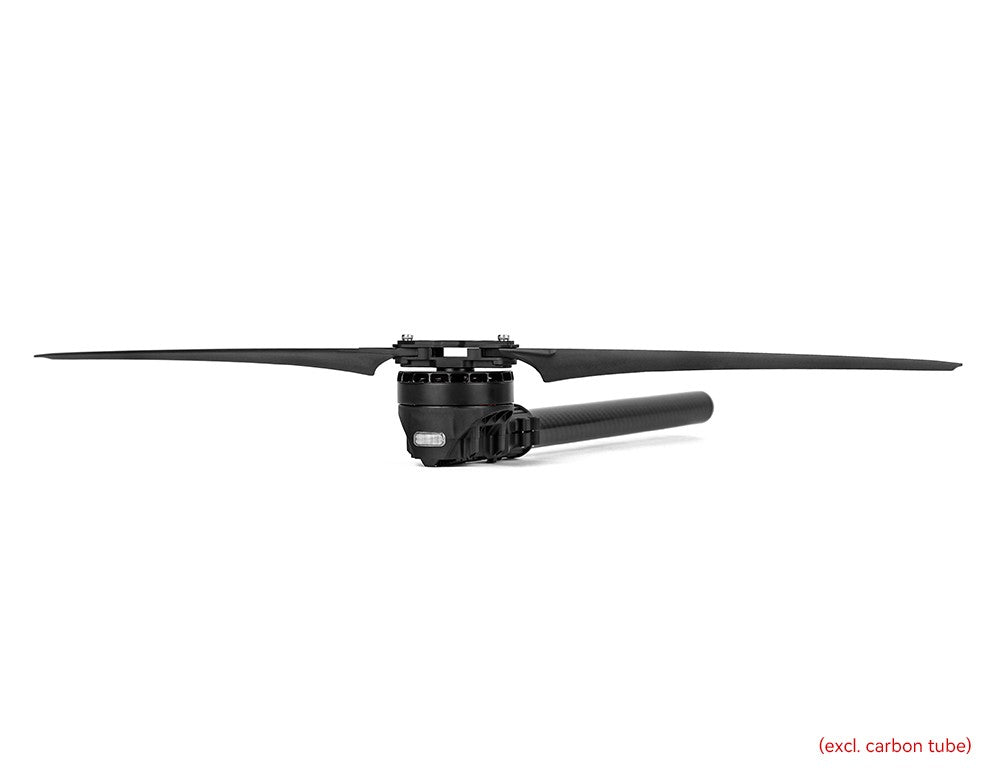

The A6-M-12S A-Series Modular Propulsion System is an integrated UAV power solution combining a brushless motor, matched ESC, and folding propeller into a single modular arm unit. Designed for agricultural and industrial drones, it delivers stable thrust, high efficiency, and reliable performance while simplifying installation and maintenance.

Key Features:

  • Integrated motor + ESC + propeller modular design
  • Provides 2–2.5 kg thrust per arm for medium-payload drones
  • Supports 12S LiPo battery systems
  • High-efficiency brushless motor with optimized cooling
  • FOC-based ESC for smooth, precise motor control
  • Folding propeller design for safer transport and storage

Packing List Includes:

  • 1 × A6-M-12S Modular Propulsion Arm (Motor + ESC + Propeller)
  • 1 x Folding propeller set

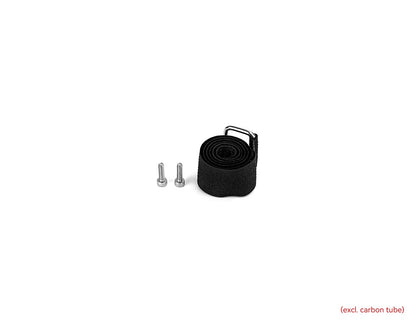

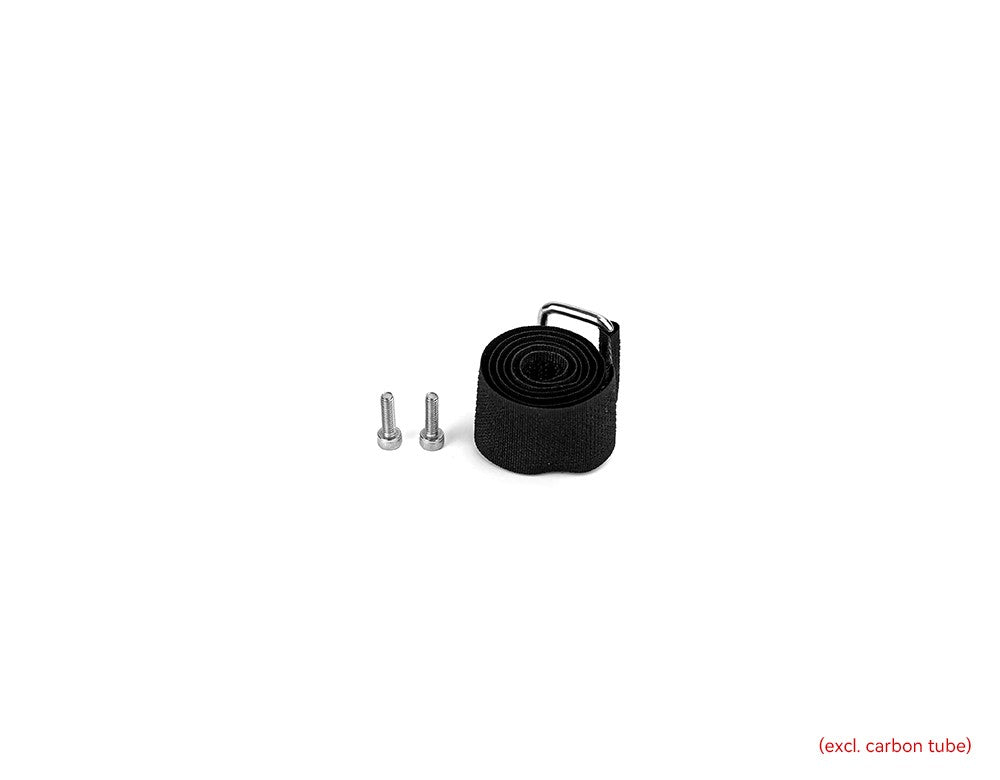

  • Accessories pack

1 months from date of supply against manufacturing defects only.
