T-Motor A6 Modular Propulsion System for Agricultural Drone

T-Motor A6 Modular Propulsion System for Agricultural Drone

Availability: Pre-order – Shipped within 15-20 days
₹ 14,800.00 (Inc.GST)
₹ 14,800.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360008

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model Name A6 Modular Propulsion System
Recommended Application 5 L quadcopter / 10 L hexacopter agricultural drones
Rated Thrust (per arm) ~3.5 – 5 kg
Maximum Thrust ~11 kg
Recommended Take-off Weight 14 – 20 kg (quadcopter) / 21 – 30 kg (hexacopter)
System Weight (incl. prop) ~715 g
Tube Diameter 30 mm
Recommended Battery 12 – 14S
Motor KV 180 KV
Motor Stator Size 62 × 15 mm
ESC Type FOC 80A
ESC Max Voltage ~61 V
ESC Peak Current 80 A
Control Protocols PWM / CAN (DRONE CAN, UAV CAN, Cube CAN)
Propeller Model MF2311P (Polymer Folding)
Propeller Size ~23 inch (585 mm)
Wire Material Power: 14 AWG red/black; Signal: Teflon 5-pin
IP Rating IPX6
Operating Temp Range −20 °C to +55 °C

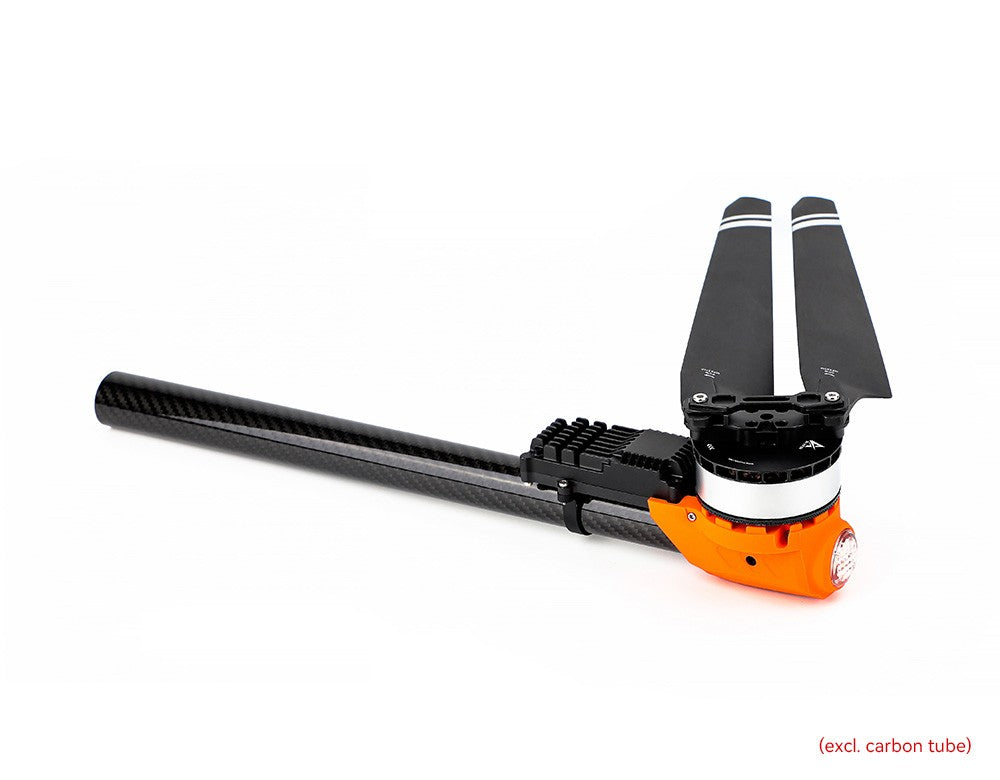

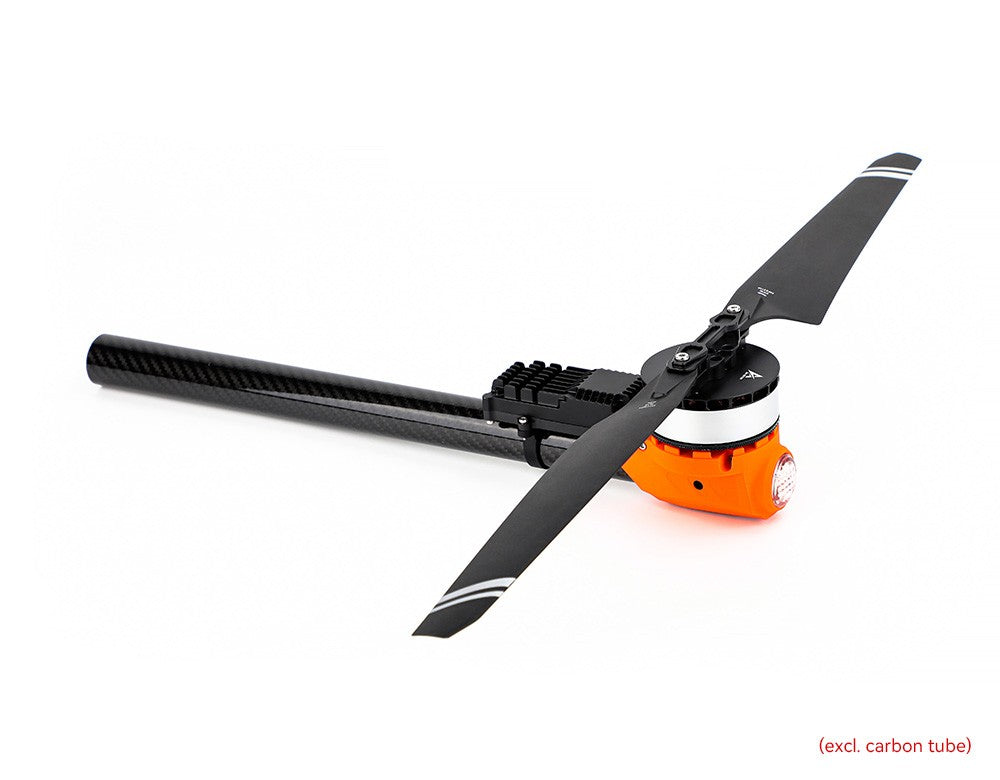

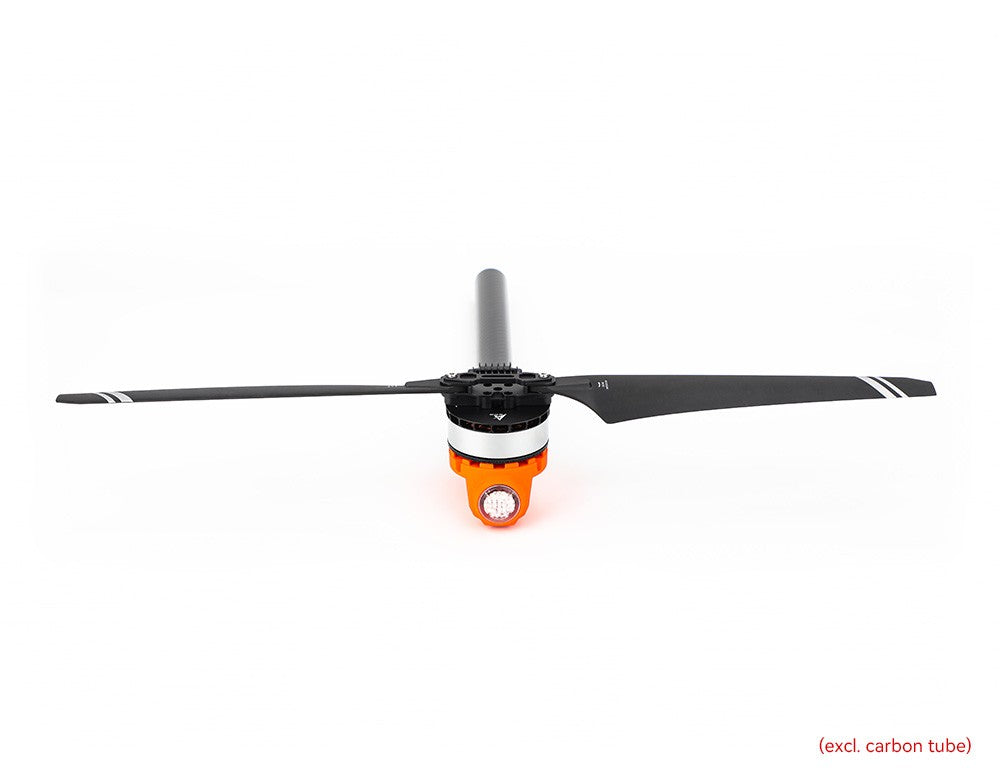

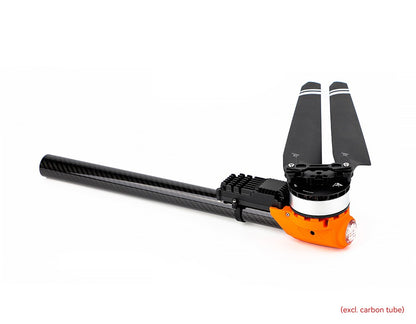

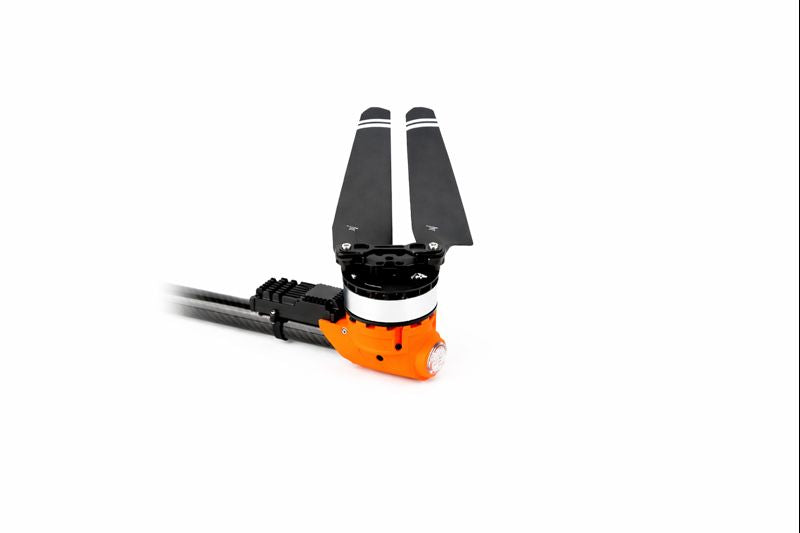

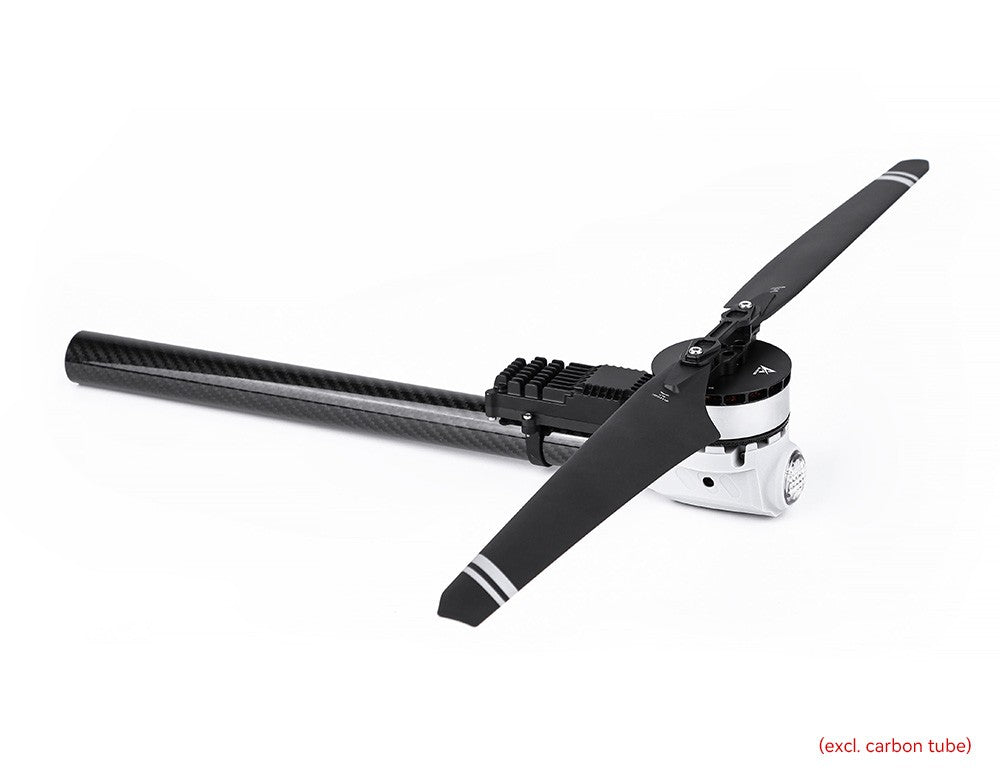

The A6 A-Series Modular Propulsion System is an integrated UAV power solution combining a brushless motor, matched ESC, and folding propeller into a single modular arm unit. Designed for agricultural and industrial drones, it delivers stable thrust, high efficiency, and reliable performance while simplifying installation and maintenance.

Key Features:

  • Integrated motor + ESC + propeller modular design
  • Provides 3.5–5 kg thrust per arm for medium-payload drones
  • Supports 12S–14S LiPo battery systems
  • High-efficiency brushless motor with optimized cooling
  • FOC-based ESC for smooth, precise motor control
  • Folding propeller design for safer transport and storage

Packing List Includes:

  • 1 × A6 Modular Propulsion Arm (Motor + ESC + Propeller)
  • 1 x Folding propeller set

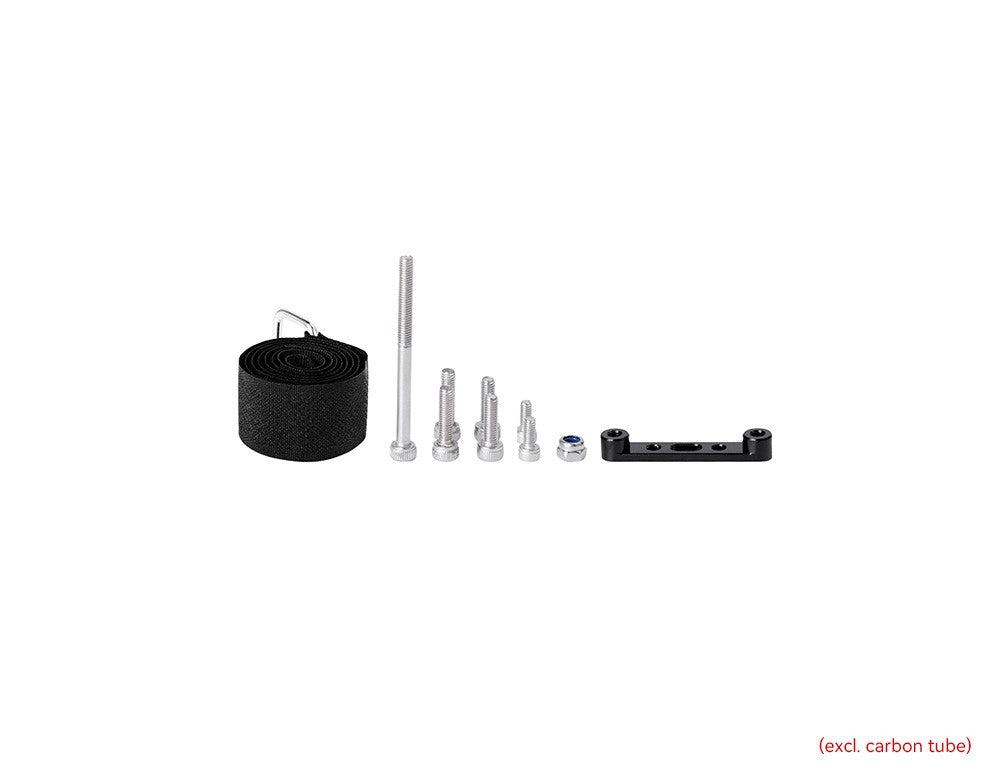

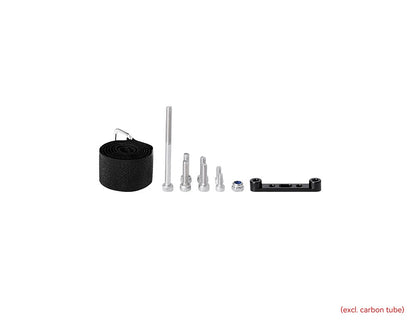

  • Accessories pack

1 months from date of supply against manufacturing defects only.
