| Parameter | Specification |
|---|---|
| Product Name | A8 A-Series Modular Propulsion System |
| Rated Thrust (per arm) | ~5 kg – 7 kg |
| Recommended UAV Types | ~10 L Quadcopter / ~16 L Hexacopter |
| System Weight (incl. prop & wiring) | ~1250 g |
| Recommended Battery | 12S – 14S LiPo |
| Tube Diameter / Mounting | 40 mm |
| Motor KV | 115KV |
| Control Protocols | PWM / CAN (compatible with CAN UAV flight controllers) |
| Propeller Model | Polymer or composite folding propeller |
| Propeller Model | MF3119P (Polymer Folding) |
| Propeller Size | 31 inch (784mm) |
| Ingress Protection | IPX6 |
| Operating Temperature Range | Approx. −20 °C to +55 °C |

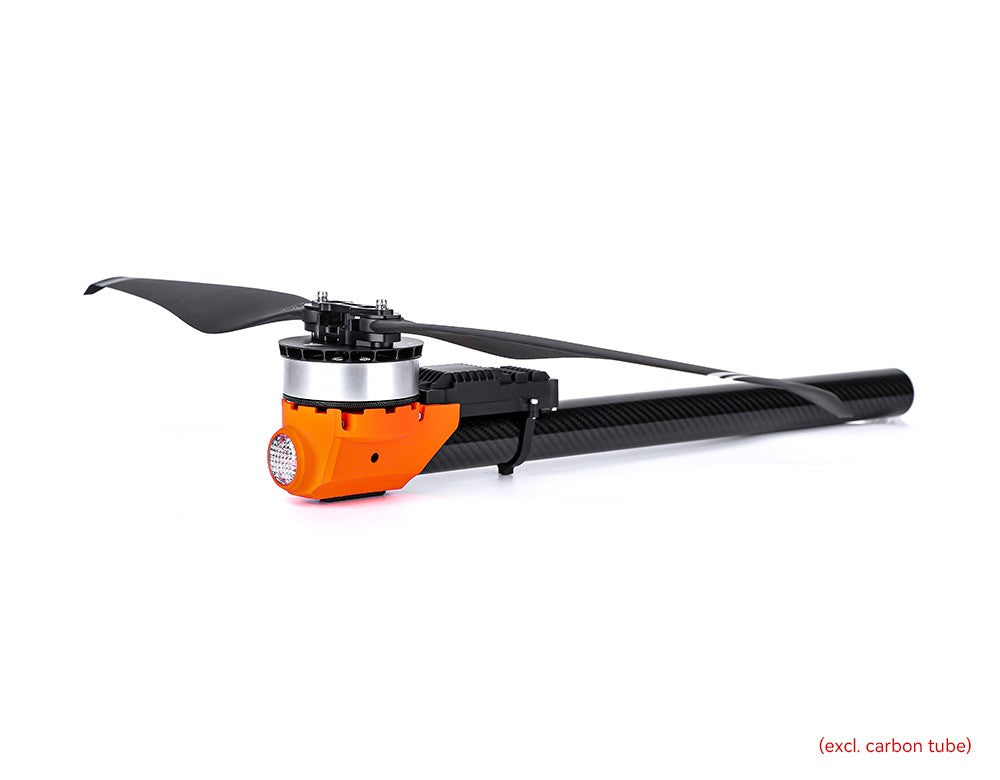

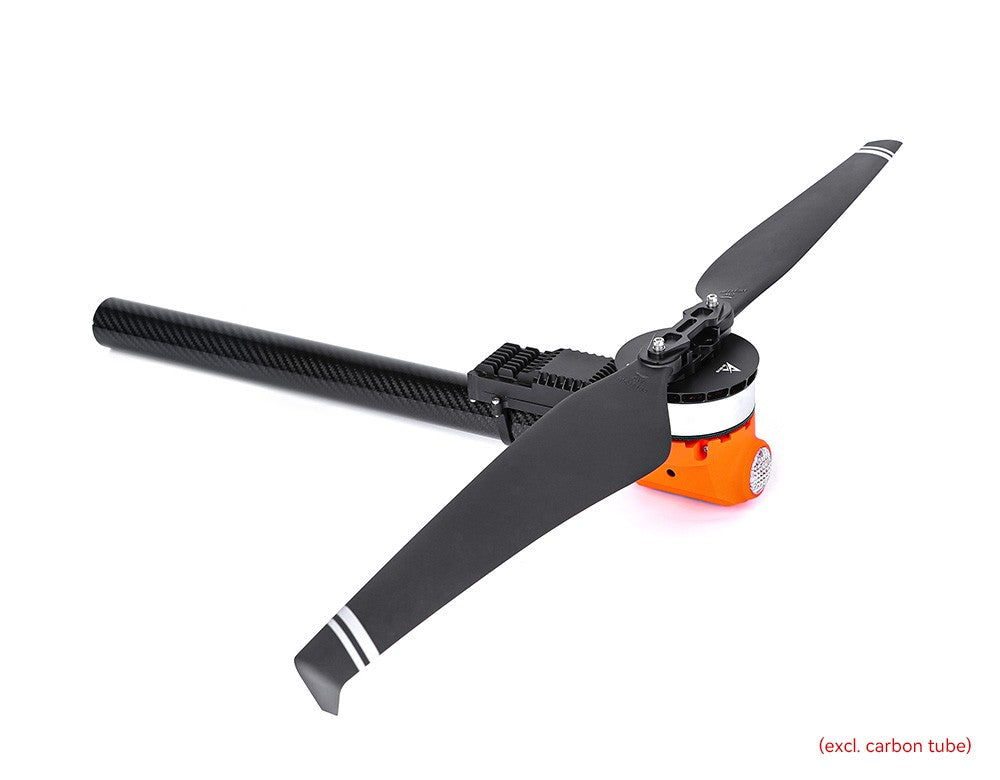

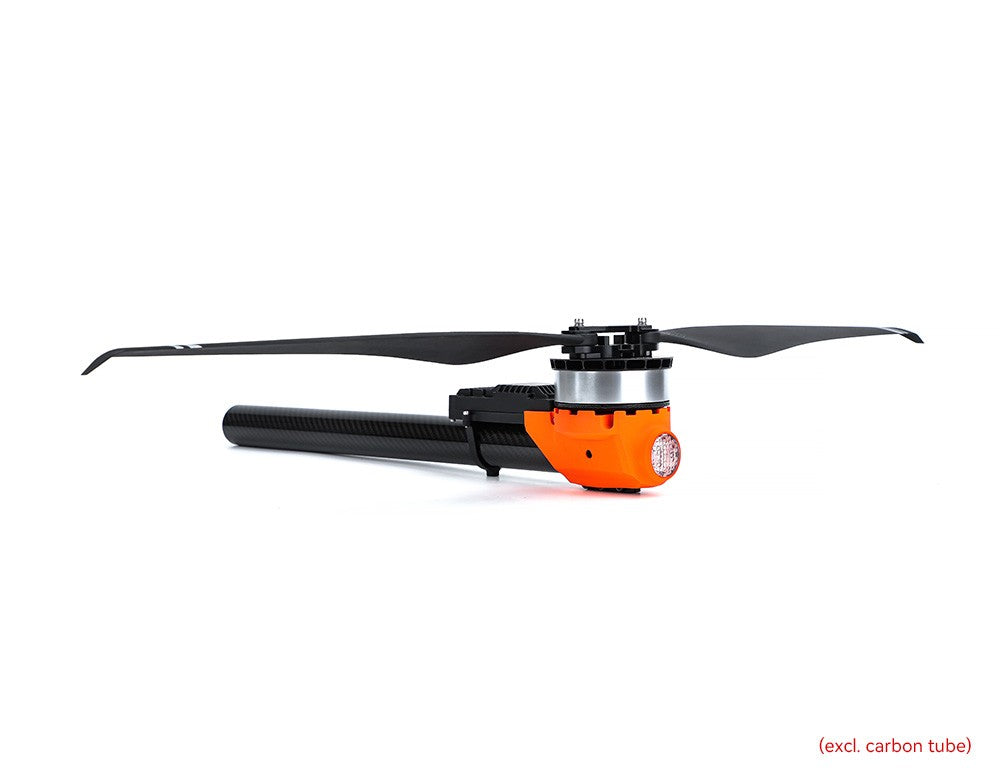

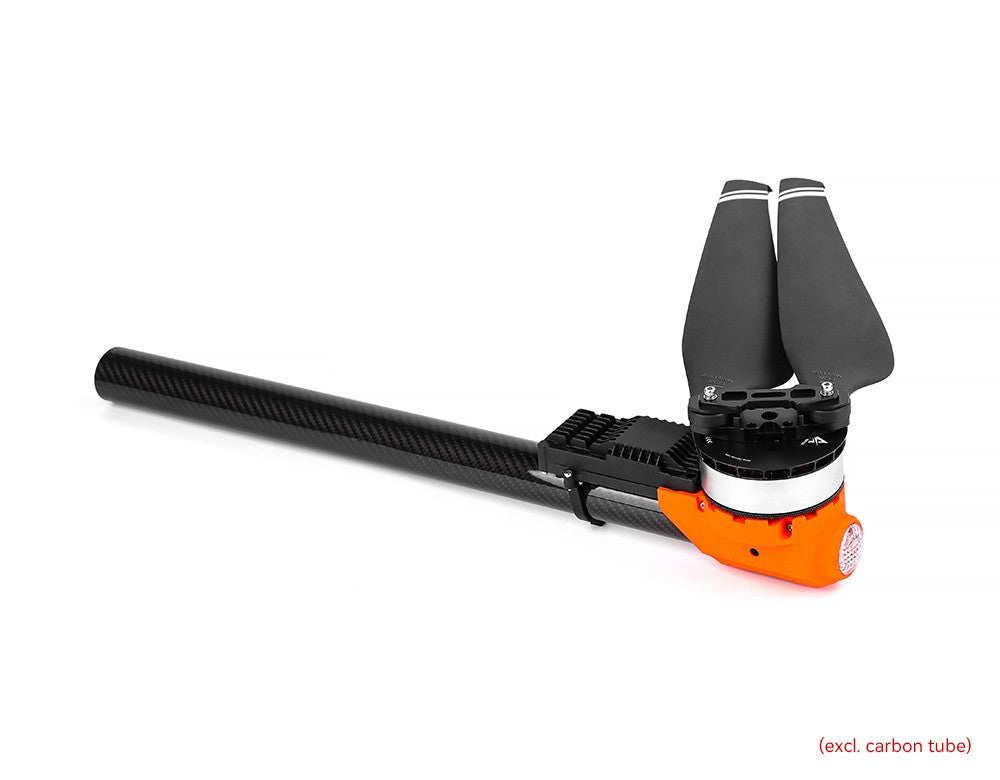

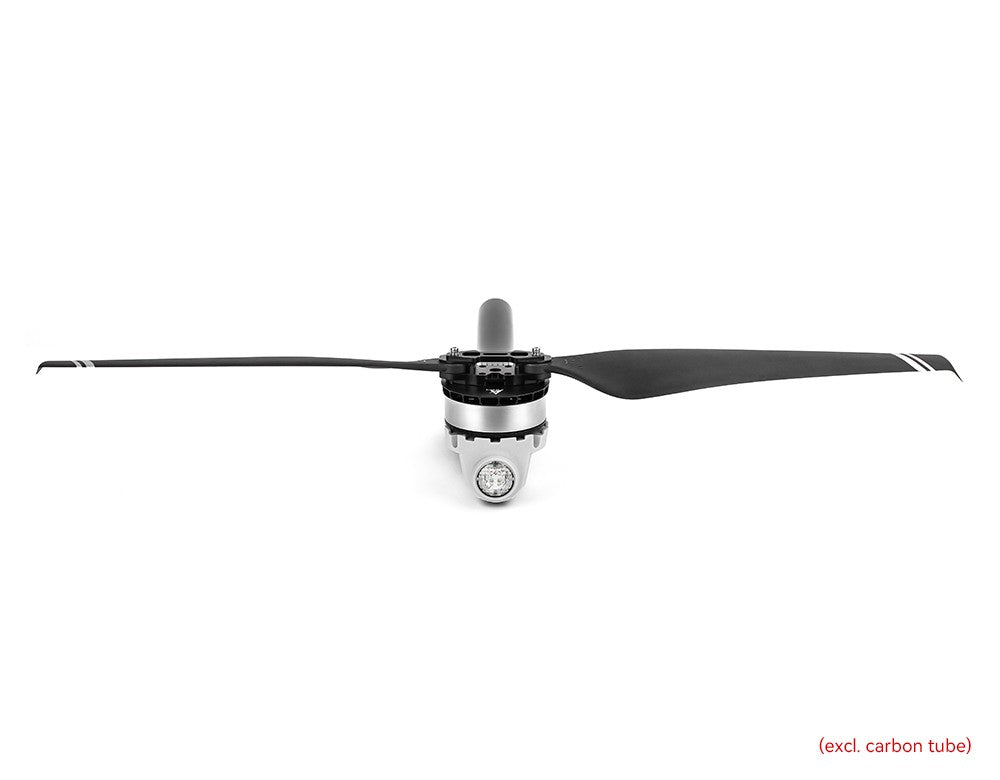

The A8 A-Series Modular Propulsion System is an integrated UAV power module designed for medium-payload agricultural and industrial drones. It combines a high-efficiency brushless motor, matched FOC ESC, and folding propeller into a single modular unit, delivering stable thrust, high efficiency, and reliable performance while simplifying installation and maintenance.
Key Features:
- Integrated motor + ESC + folding propeller modular design
- Provides 5–7 kg thrust per arm for medium-capacity UAVs
- Supports 12S–14S LiPo battery systems
- High-efficiency brushless motor optimized for endurance
- FOC-based ESC for smooth, precise throttle control
- Folding propeller for safer transport and compact storag
Packing List Includes:
- 1 × A8 Modular Propulsion Arm (Motor + ESC + Propeller)
- 1 x Folding propeller set

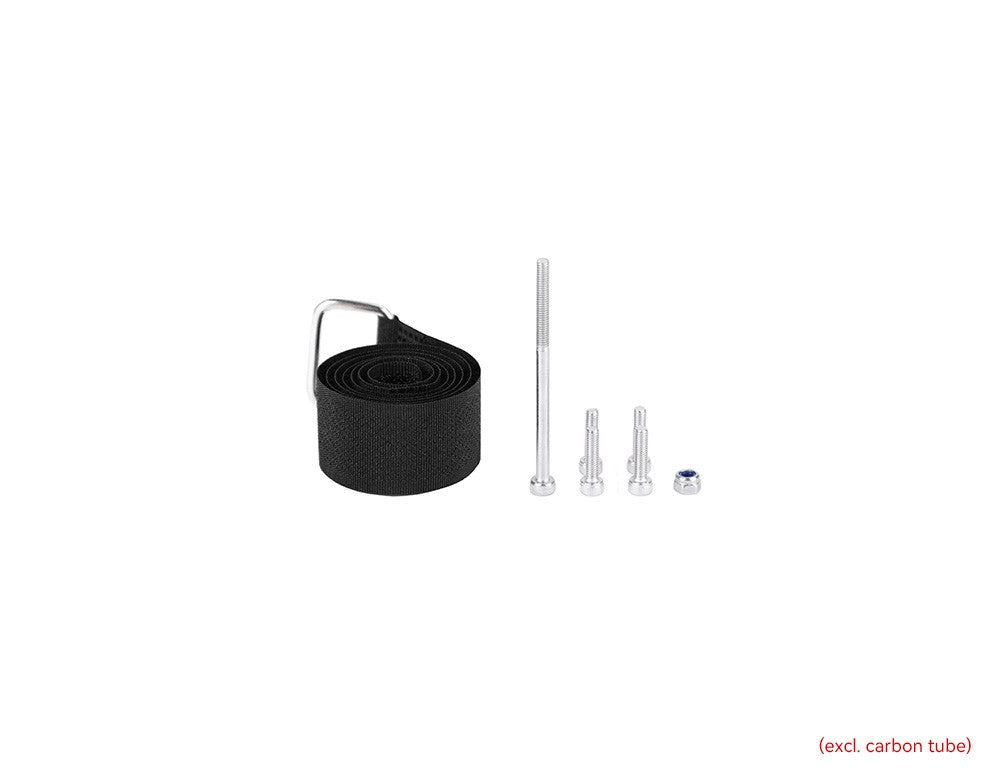

- Accessories pack
