| Parameter | Details |
|---|---|
| Product Name | MN2212 V2.0 Navigator-Type Brushless Motor |
| KV Options | 920 KV |
| Configuration | 9N12P |
| Internal Resistance (KV780) | 173 mΩ |
| Internal Resistance (KV920) | 142 mΩ |

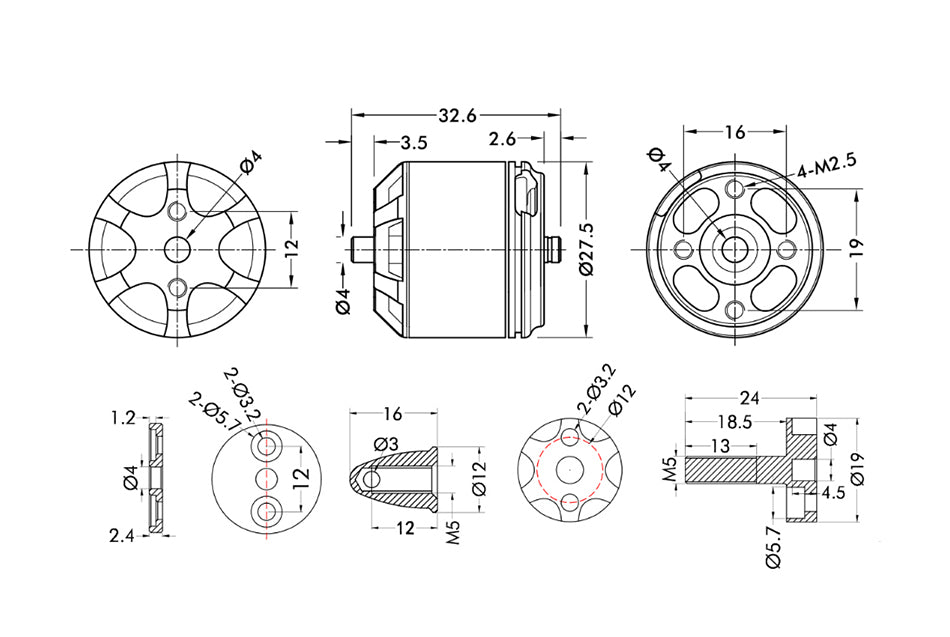

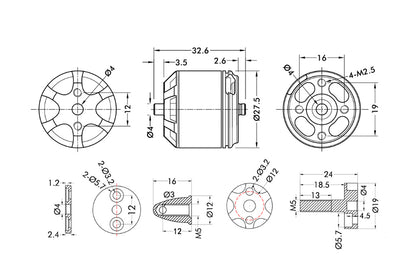

| Motor Dimensions | Φ27.5 × 26.5 mm |
| Shaft Diameter | 4 mm |
| Stator Diameter | 22 mm |
| Stator Height | 13 mm |
| Cable Length | 400 mm |
| Wire Gauge | AWG 20 |
| Weight (without cables) | ~54–55 g |
| Weight (with cables) | ~65 g |
| Idle Current @ 10 V (KV920) | 0.5 A |
| Recommended LiPo Cells | 2–4S |
| Max Continuous Current (180s) (KV920) | 15 A |
| Max Power (180s) (KV920) | ~220 W |
| Max Thrust (approx) | ~1.8 kg |
| Recommended Propeller | e.g., P15×5 |
| MTBF (Estimated) | ~1000 hours |
| Application Areas | Multirotors, VTOL, Fixed-wing UAVs |

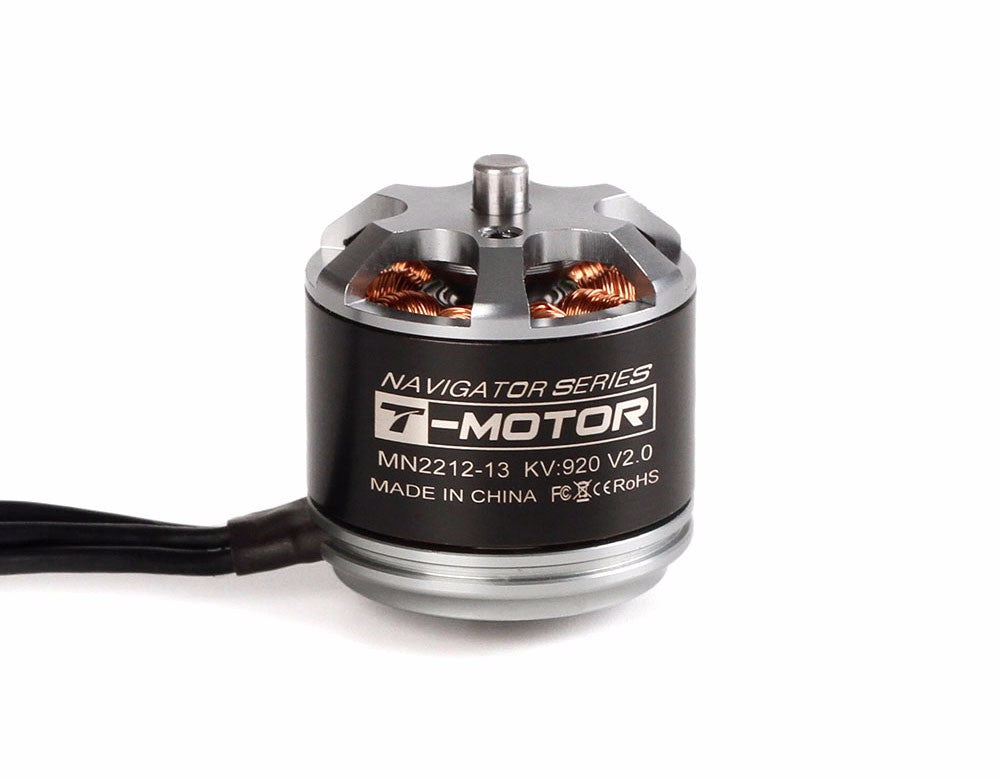

T-Motor MN2212 V2.0 Navigator KV780 KV920 Brushless Motor is designed for aerial photography with multi-rotor UAVs, offering smooth, reliable, and durable performance.
Ideal for 450mm long endurance multicopters, it features a self-cooling design for enhanced efficiency and longer flight times. With a max thrust of 1.8kg and MTBF of 1000 hours, this motor is built for high strength and balance. Recommended with T-Motor P15*5 props, it ensures optimal performance for multi-rotors, VTOL, and fixed-wing applications.
Navigator MN4112 Highlights:
- Max. thrust ：1.8kg
- MTBF：About1000hours
Features：Super Balance; High Strength Construction
Application Areas：
Multi-rotors, VTOL, and Fixed-wing UAVs.

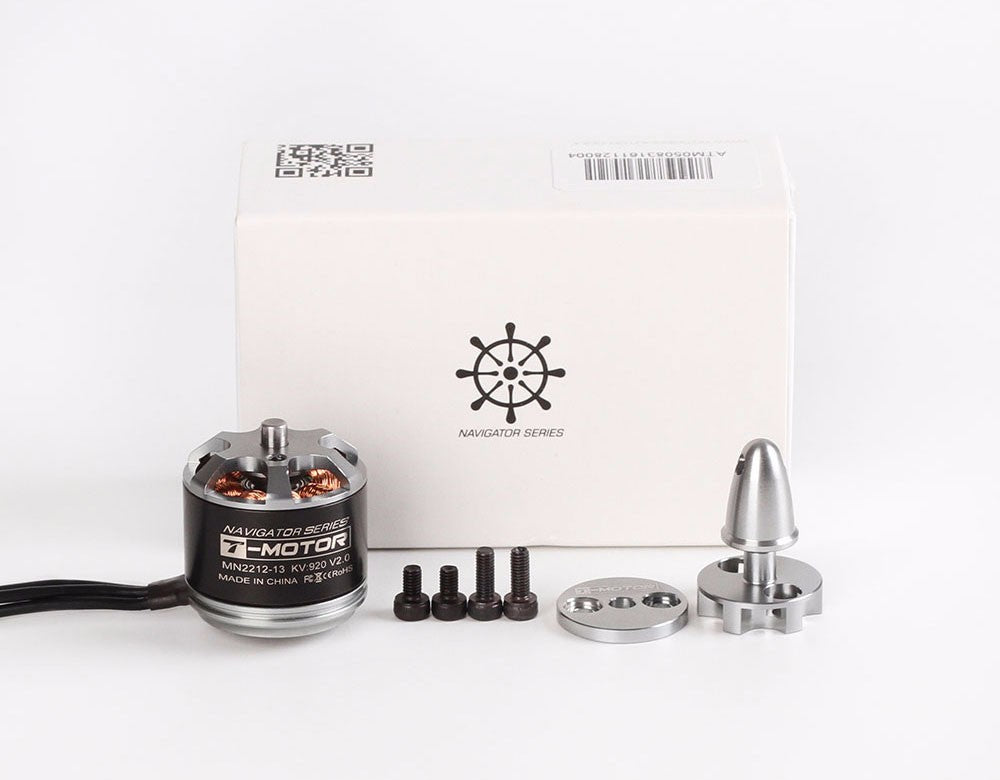

Packing List Includes:
1 x T-MOTOR MN4112 Motor KV780 KV92( kv which you choose)
1 x Accessories pack
