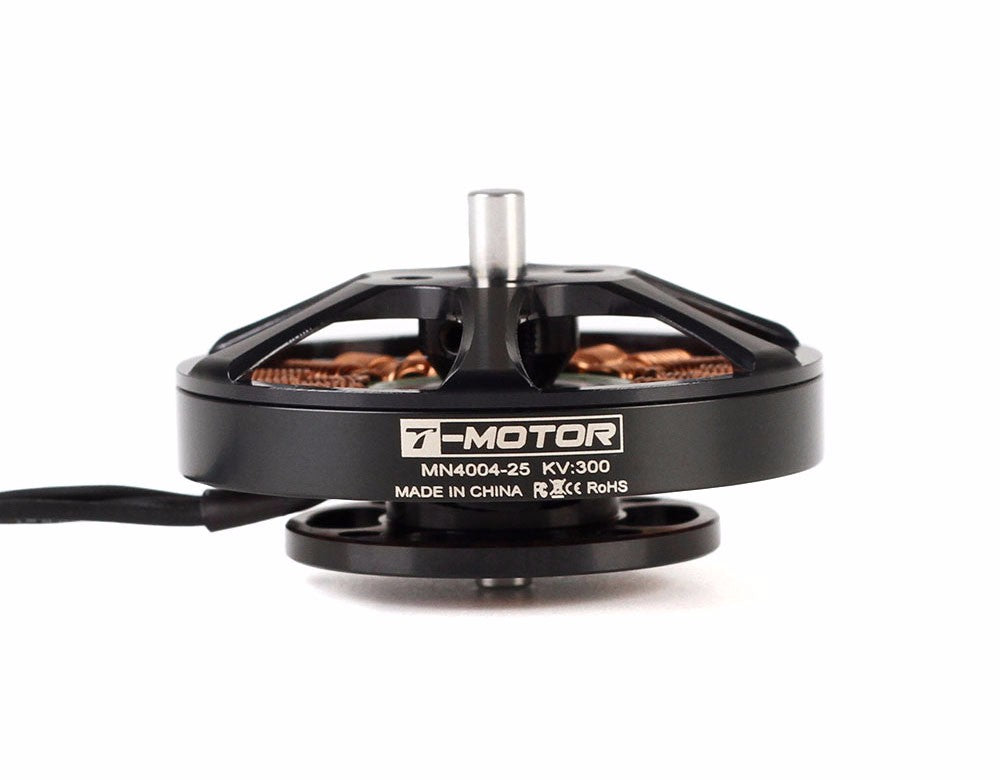

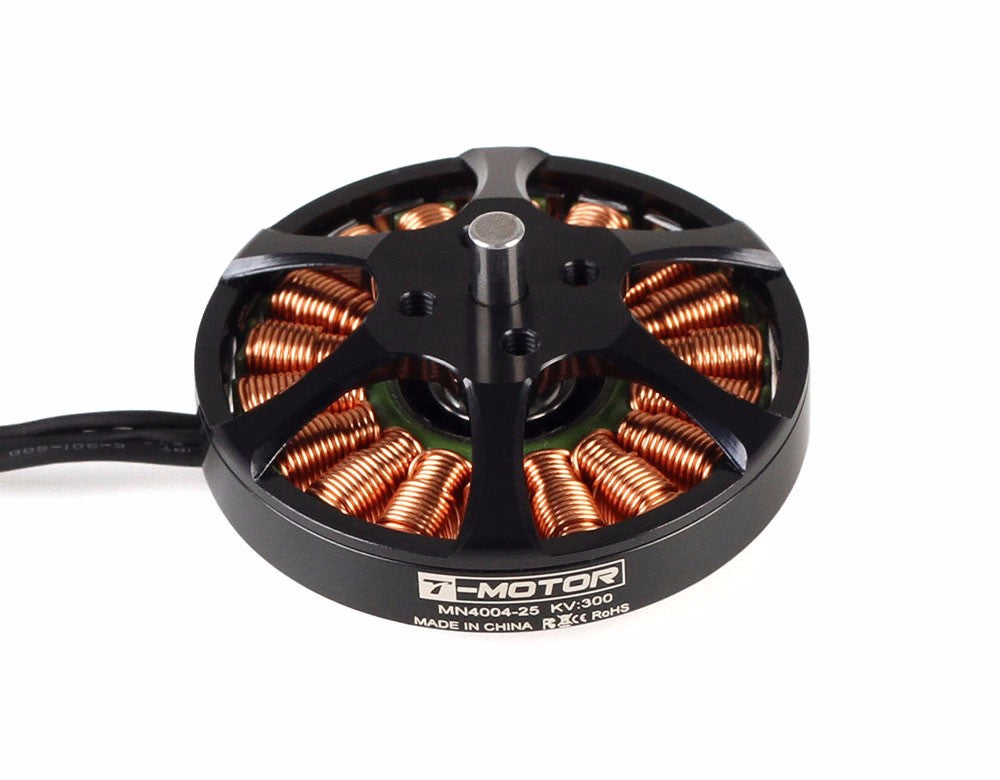

T-Motor MN4004 Antigravity 4-6S UAV Motor KV400 - 2PCS/SET

T-Motor MN4004 Antigravity 4-6S UAV Motor KV400 - 2PCS/SET

Availability: Pre-order – Shipped within 10-15 days
₹ 11,700.00 (Inc.GST)
₹ 11,700.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360019

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name T-Motor MN4004 Antigravity 400KV Motor
Motor Type Brushless Outrunner (Antigravity Series)
KV Rating 400 RPM/V
Stator Configuration 18N24P
Recommended Battery 4S – 6S
Maximum Thrust (approx.) ~1.1 kg per motor
Weight (single motor) ~52 g

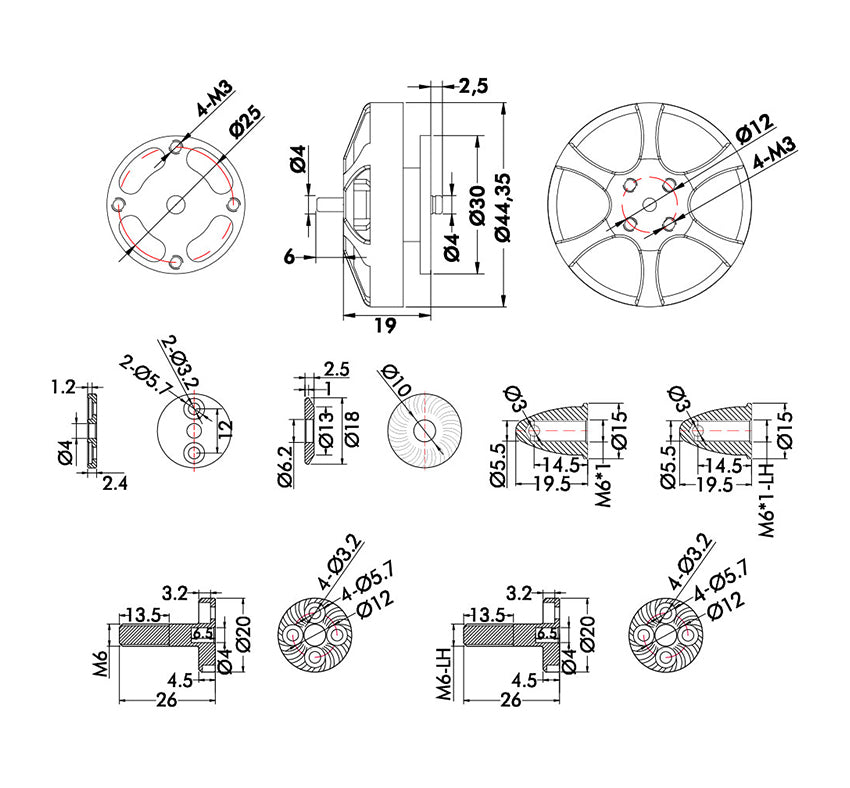

Motor Dimensions Ø44.35 × 19 mm
Shaft Diameter 4 mm
Internal Resistance ~359 mΩ
Max Continuous Power (180 s) ~300 W
Peak Current (180 s) ~12 A
Cooling Design Ventilation-optimized airflow design
Typical Propeller Range 14″ – 18″ class (platform dependent)
Operating Use Multirotor and UAV applications

T-Motor Antigravity MN4004 KV400 is a cutting-edge motor built for unmatched efficiency and endurance. With its ultra-thin, lightweight design and advanced cooling system, this motor is a game-changer for professional UAV applications, offering smooth operation and exceptional reliability. up to 1.1kg.

Key Features:

  • Ultrathin design, processed by high strength aluminium, light weight
  • Single thick copper wire winding reduces energy dissipation of motor
  • Higher level bearing with the service life of 60 hours
  • Unique ventilation and cooling system

Application Areas：

  • Multi-rotors, VTOL, UAV

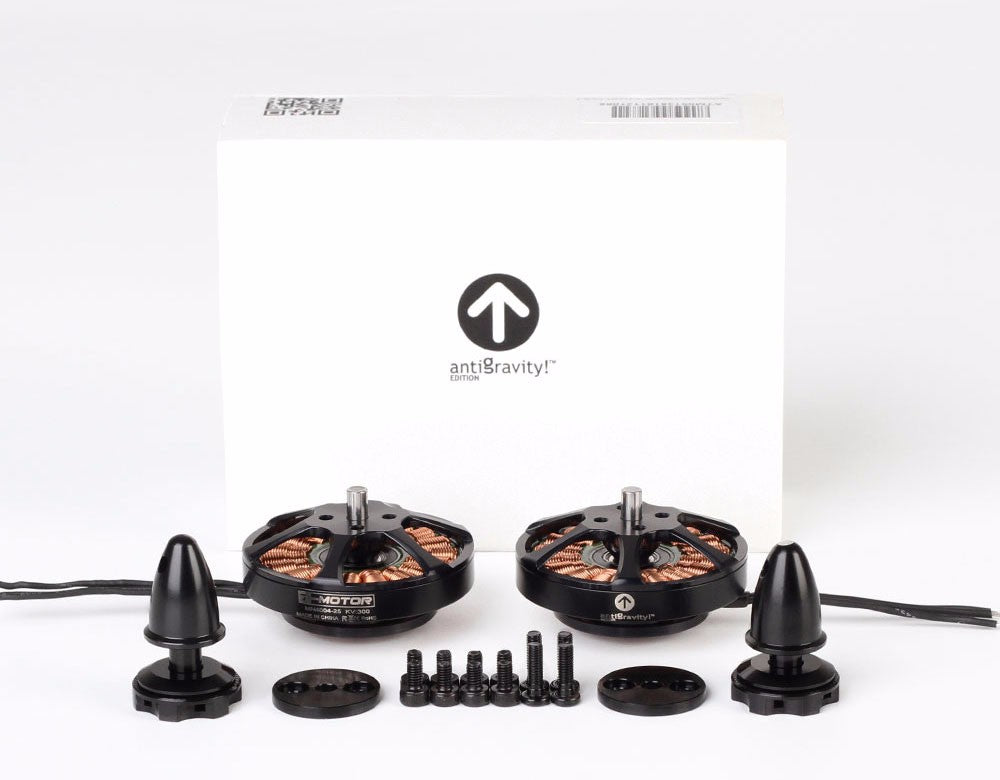

Packing List Includes:

  • 2 × MN4004 KV400 Antigravity-Type Brushless Motor
  • 1 x Accessories pack(CW/CCW)

6 months from date of supply against manufacturing defects only.
