T-Motor MN4006 Antigravity 4-6S UAV Motor KV380 - 2PCS/SET

T-Motor MN4006 Antigravity 4-6S UAV Motor KV380 - 2PCS/SET

Availability: In stock
₹ 12,500.00 (Inc.GST)
₹ 12,500.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360020

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification

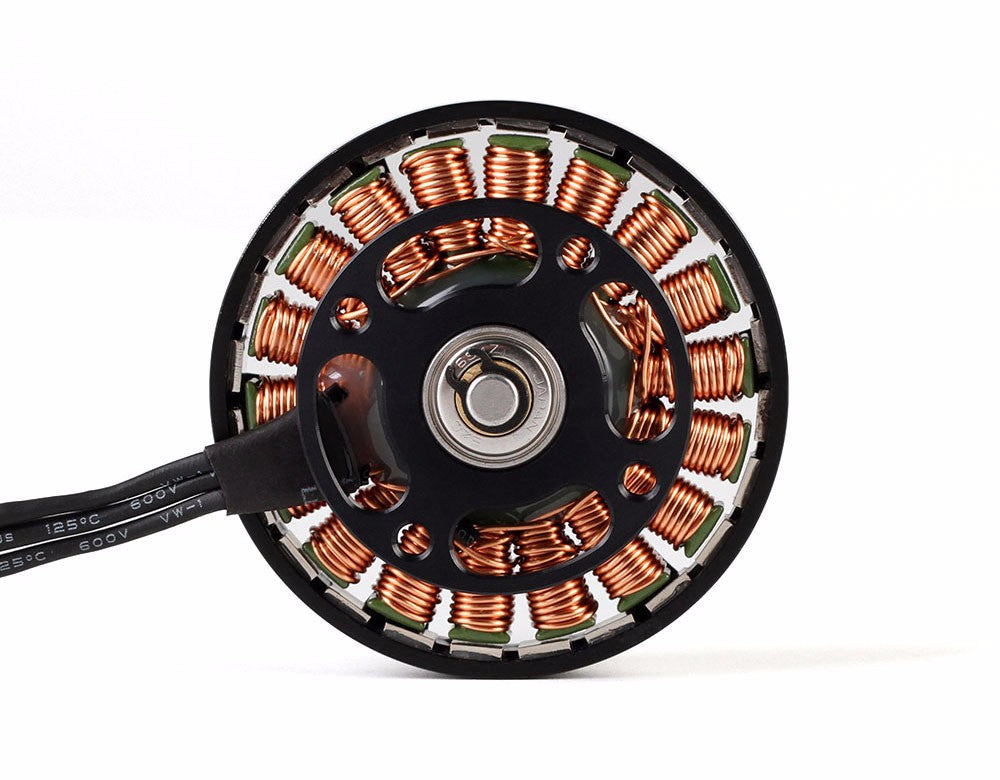

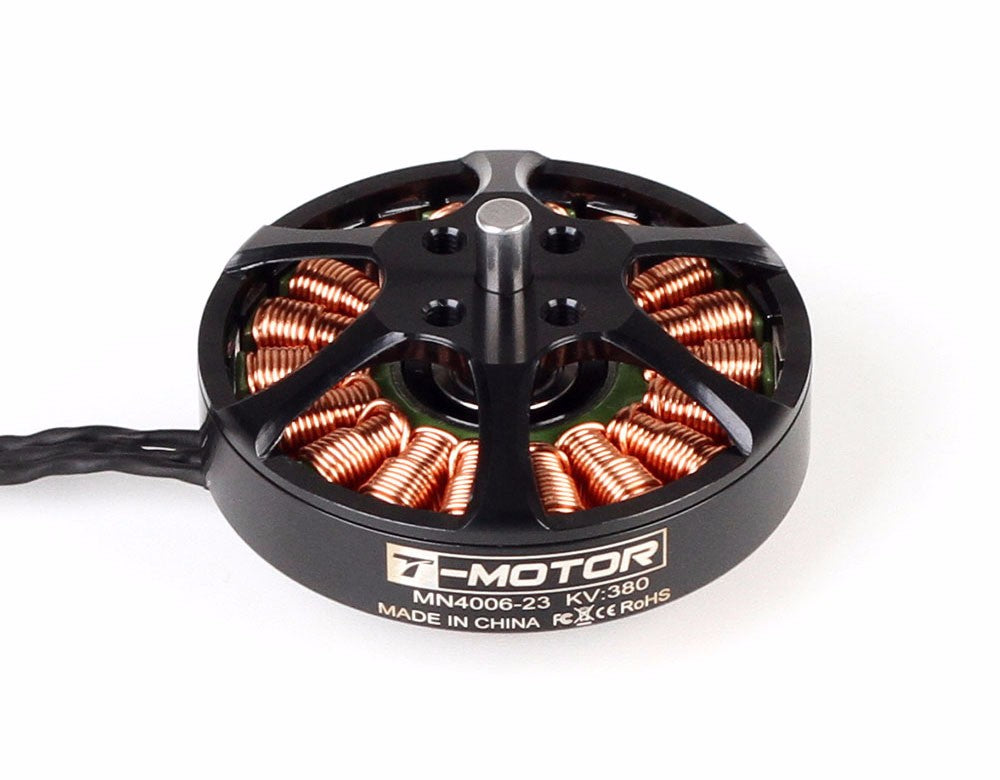

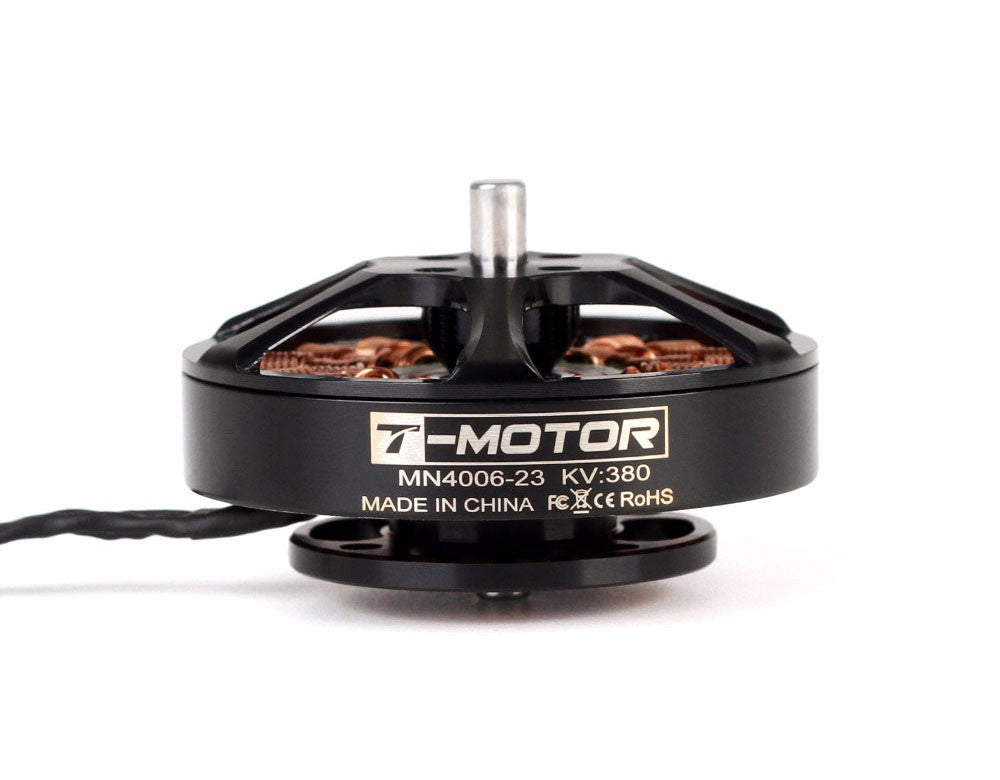

Product Name MN4006 Antigravity 380KV Brushless Motor
Motor Type Brushless Outrunner (Antigravity Series)
KV Rating ~380 RPM/V
Stator Configuration 18N24P
Supported Batteries 4S – 6S LiPo
Maximum Thrust (approx.) ~1.6 kg per motor
Weight (Approx.) ~68 g (with cables)
Max Continuous Power (180 s) ~380 W
Peak Current (180 s) ~16 A
Internal Resistance ~194 mΩ

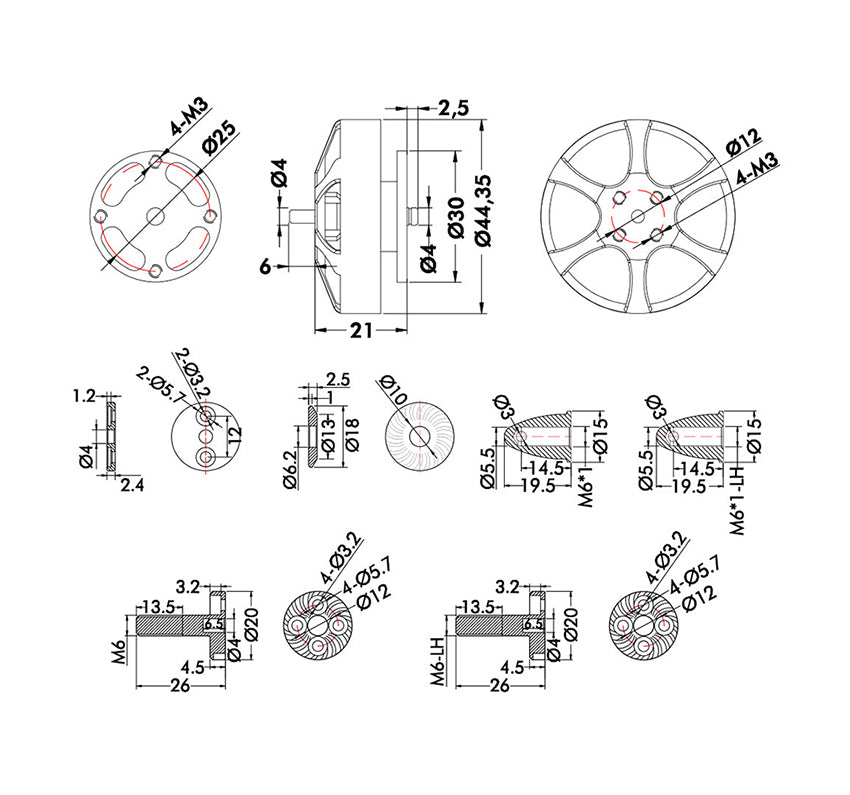

Motor Dimensions Ø44.35 × 21 mm
Shaft Diameter 4 mm
Cooling Design Ventilation-optimized airflow design
Typical Propeller Range 14″ – 18″ class (platform dependent)
Primary Use Multirotor and UAV propulsion

T-MOTOR MN4006 Antigravity KV380 is a revolutionary brushless motor designed for top-tier UAV performance. Weighing only 57g, it’s one of the lightest motors in its class, offering exceptional power without compromising on durability. Crafted with precision, this motor delivers unparalleled efficiency, making it the ideal choice for builders who demand both high performance and reliability.Up to 1.6kg thrust

Key Features:

  • Ultrathin design , lightest weight compare the same size motor in market
  • Single thick copper wire winding by hand
  • Unique ventilation and cooling design
  • High grade EZO bearing
  • 92% Max Efficiency (4-6A)
  • Up to 1.6kg thrust

Application Areas：

  • Multi-rotors, VTOL, UAV

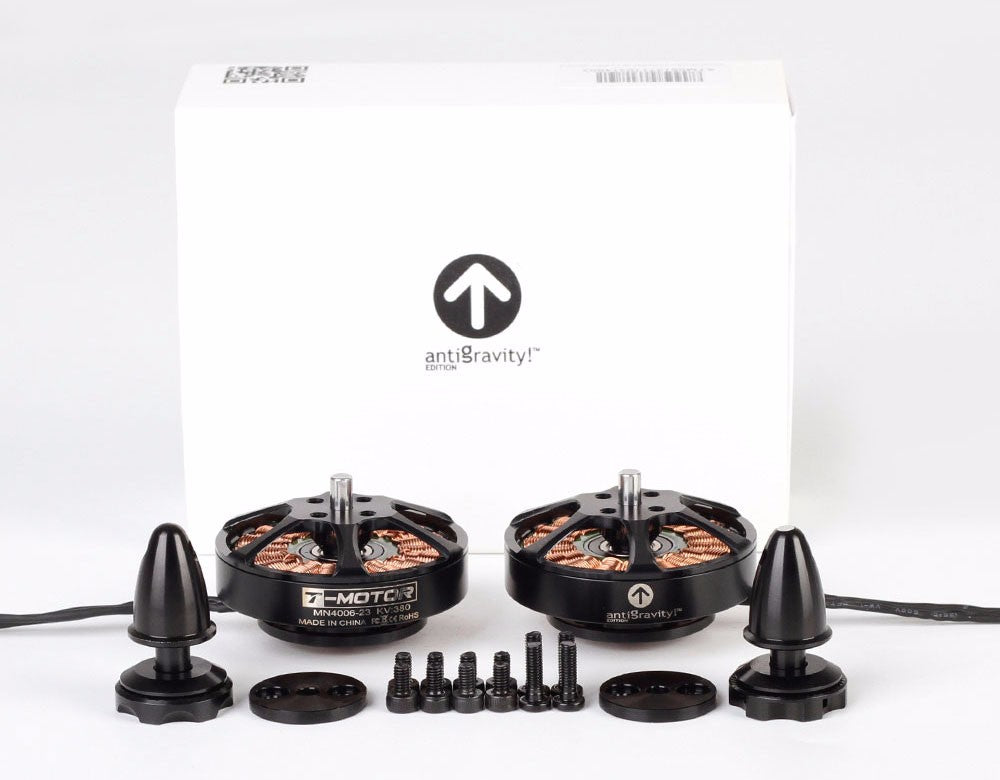

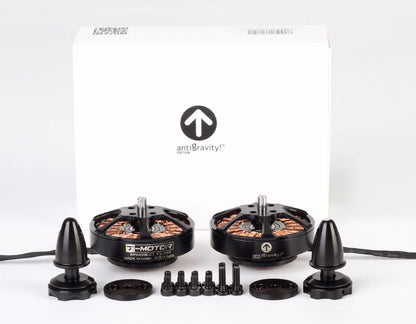

Packing List Includes:

  • 2 × MN4006 KV380 Antigravity-Type Brushless Motor
  • 1 x Accessories pack (CW/CCW)

6 months from date of supply against manufacturing defects only.
