| Parameter | Details |
|---|---|
| Product Name | MN4110 Navigator-Type Multirotor UAV Motor |
| Motor Type | Brushless Outrunner Motor |
| Series | Navigator Series (UAV/Multirotor & Fixed Wing) |
| Available KV Options | KV300 |
| Max Thrust | ~3.8 kg |
| Configuration | 12N14P |
| Motor Dimensions | 47.4 × 36.7 mm |
| Stator Material | Silicon steel, anti-rust, high-temp coating |
| Shaft Diameter | Input 6 mm / Output 4 mm |
| Bearings | 686ZZ / 696ZZ sealed bearings |
| Magnet Grade | N45SH |
| Lead Cable | 16AWG × 150 mm (220°C high-temp copper) |
| Insulation Test | 500 V / 5 s |
| Internal Cooling | Centrifugal cooling structure |
| Rotor Balance | ≤ 5 mg |
| Recommended Propeller | e.g., P16×5.4 (depends on KV) |
| MTBF | ~1000 hours |
| Application | Multirotor UAV, VTOL, Fixed-wing |
| Features | Waterproof, dustproof, efficient, low noise |
| Included in Pack | Motor + mounting hardware |

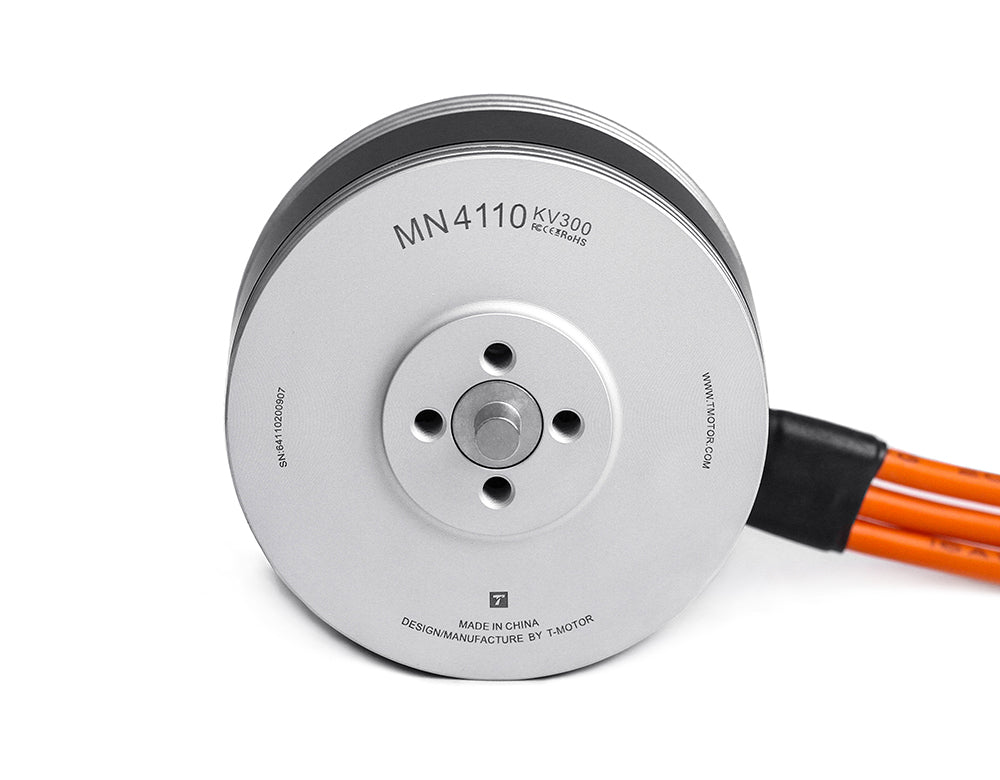

T-Motor MN4110 300KV Brushless Motor, part of the MN Navigator series, is engineered for high-performance multicopters, VTOL, and fixed-wing drones.
With an 18% increase in heat flux and advanced cooling design, this motor ensures long-lasting flight endurance.
Its 12N14P configuration and high winding coefficient deliver fast response and efficient flight, achieving up to 8g/W at 60% throttle.
The motor's bendable cable design minimizes disconnection risk, offering reliability and durability for demanding drone applications.
MN4116 Highlights:
- MTBF：About1000hours
- Features: Industrial Grade, Waterproof, dustproof, low noise, 220°C high temperature resistance.
- 5% more efficiently on 1kg-2.5kg
- 5% more thrust on 100% throttle
- Heat flux increases by 18%
Application Areas：
Multi-rotors, VTOL, and Fixed-wing UAVs.
Packing List Includes:
- 1 x TMOTOR MN4110 Motor KV300

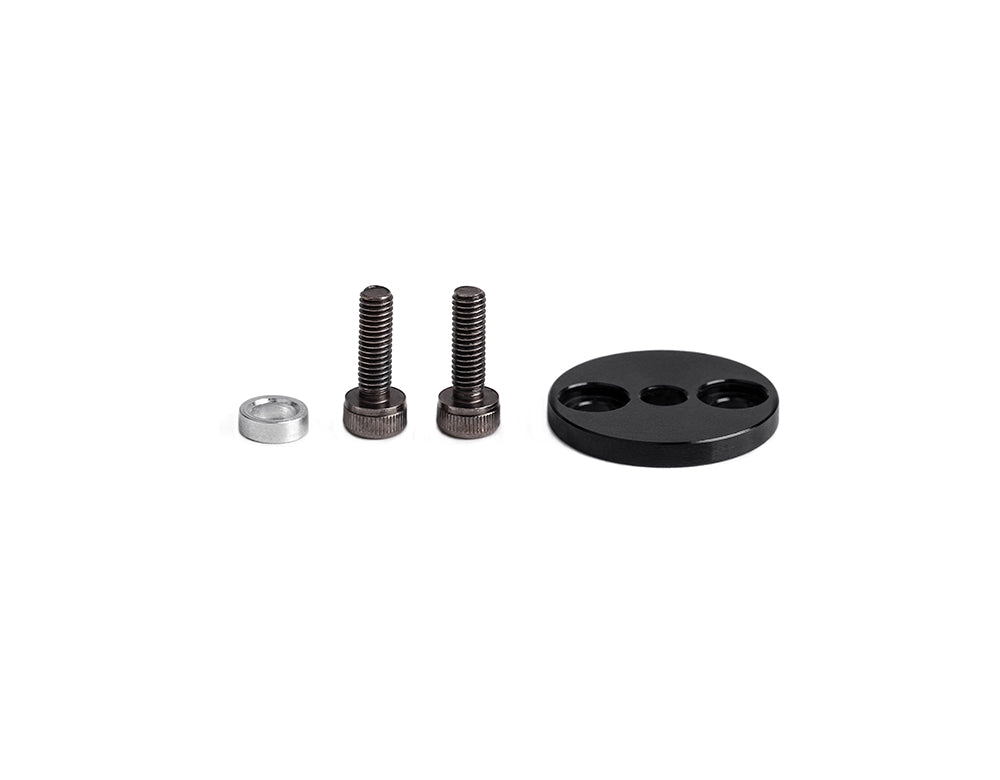

- 1 x Accessories
