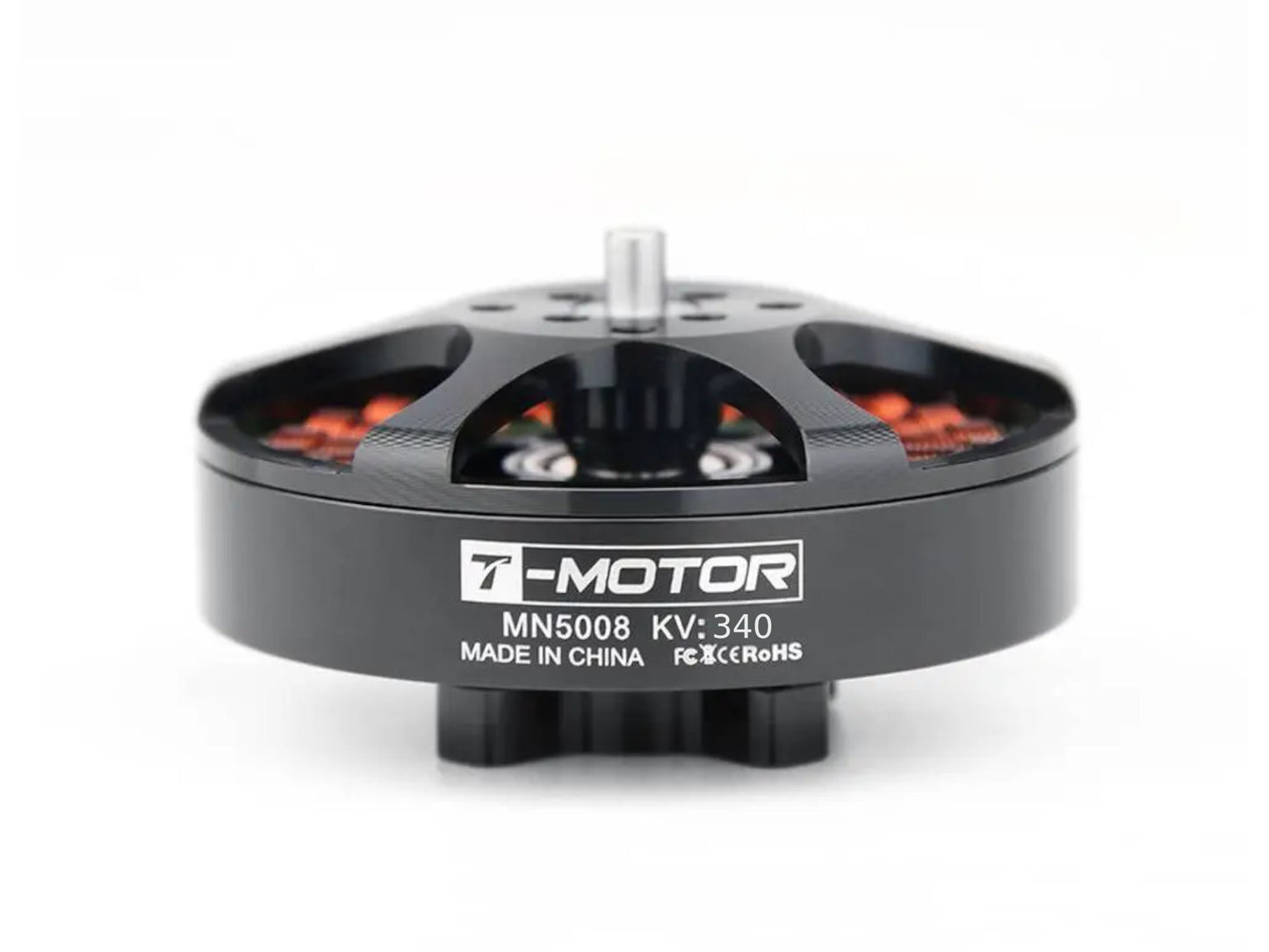

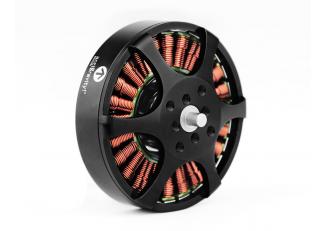

T-Motor MN5008 Antigravity 6-12S UAV KV340

T-Motor MN5008 Antigravity 6-12S UAV KV340

Availability: In stock
₹ 7,500.00 (Inc.GST)
₹ 7,500.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360003

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name MN5008 KV340 Antigravity-Type UAV Motor
Motor Type Brushless Outrunner Motor
KV Rating 340 KV
Recommended Battery 6S – 12S

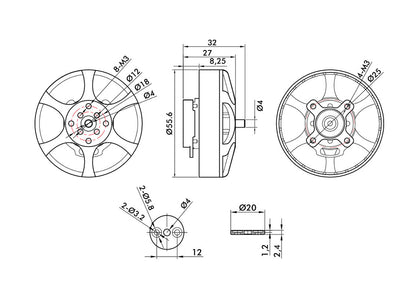

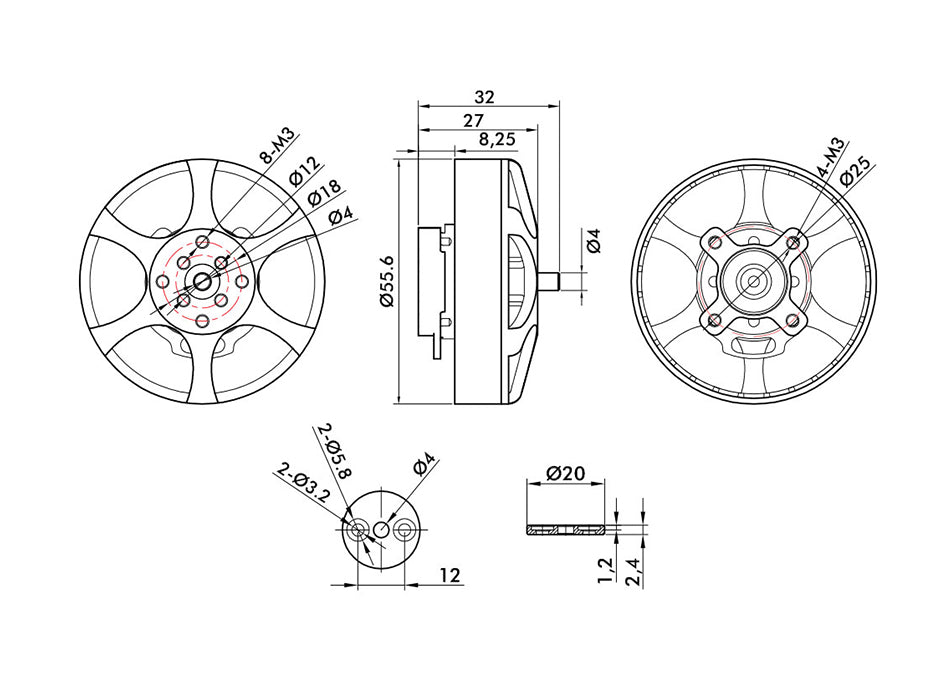

Motor Body Dimensions Ø55.6 × 32 mm
Motor Configuration 24N28P
Shaft Diameter 6 mm
Lead Wire Length ~80 mm
Idle Current (22V) ~0.9 A
Maximum Power (180 s) ~760 W
Peak Current (180 s) ~35 A

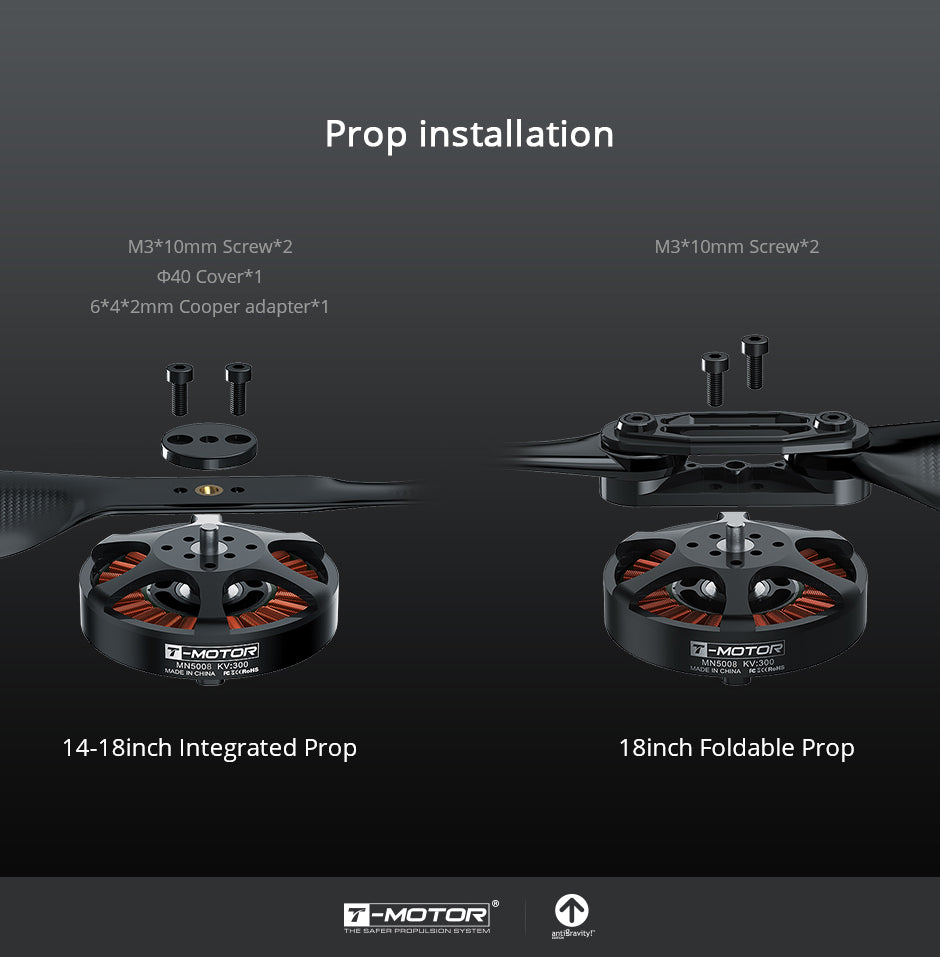

Recommended Propeller Size 17 – 18 inch
Bearing Type High-quality sealed ball bearings
Copper Wire Grade 180°C high-temperature resistance
Ingress Protection IP35
Application Multirotor UAVs, aerial photography, surveying, mapping

The MN5008 KV340 Antigravity-Type UAV Motor is a high-efficiency, lightweight brushless motor designed for professional multirotor drones. Engineered for optimal thrust-to-weight performance, it delivers stable power output, smooth operation, and extended flight endurance, making it ideal for aerial platforms that demand reliability and efficiency.

Key Features:

  • High-efficiency 340 KV brushless outrunner design
  • Supports 6S to 12S LiPo batteries for versatile configurations
  • Delivers up to ~4.2 kg maximum thrust per motor
  • Lightweight antigravity structure for improved flight time
  • High-temperature resistant copper windings for durability
  • Precision-balanced rotor for smooth and low-vibration operation
  • Robust centrifugal cooling design for continuous operation

Packing List Includes:

  • 1 × MN5008 KV340 Antigravity-Type Brushless Motor
  • 1 x Accessories pack

6 months from date of supply against manufacturing defects only.
