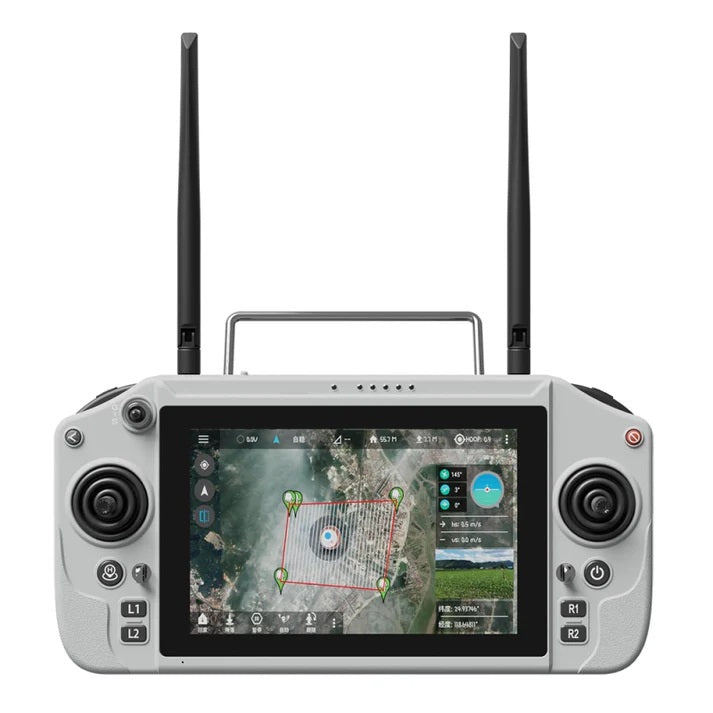

SkyDroid G20 2.4G/5.8G Industrial Drone Control System

SkyDroid G20 2.4G/5.8G Industrial Drone Control System

Availability: Pre-order – Shipped within 10-15days
₹ 62,793.00 (Inc.GST)
₹ 62,793.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9180200

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Details
Model Sky Droid G20
Receiver GR01
Frequency Bands 2.4GHz / 5.8GHz Dual Band
Transmission Distance 5–30KM (Line of Sight)
Display 7-inch FHD Touchscreen
Screen Resolution 1920 × 1200
Brightness ~1500 nits
Processor Qualcomm 6nm Processor
Operating System Android 13
RAM / Storage 4GB / 64GB or 8GB / 128GB variants
Battery Capacity 20000mAh
Battery Life 6–12 Hours
Fast Charging 36W PD Type-C
RF Output Power 23dBm
Channels 16
Dynamic Frequency Switching Automatic
Video Decoding H.264 / H.265 / 4K
External Interfaces USB, Type-C, SIM Slot, Serial, SBUS, PWM
Remote Controller Weight ~1.2 kg
Operating Temperature −10°C to 55°C


The SkyDroid G20 is a professional UAV ground control system designed for industrial drones, VTOL aircraft, mapping UAVs, and long-range FPV applications. It features dual-band 2.4GHz/5.8GHz communication, up to 30KM transmission range, Android 13 OS, and a built-in 7-inch high-brightness touchscreen display. The included GR01 receiver supports telemetry, SBUS, PWM, and Ethernet communication for advanced drone integration.

Key Features:

  • Up to 30KM image transmission and control range
  • Dual-band automatic switching (2.4G / 5.8G)
  • Qualcomm 6nm processor with Android 13
  • 7-inch sunlight-readable FHD display
  • Supports H.264/H.265 and 4K decoding
  • Long battery life with 36W PD fast charging
  • Supports SBUS, PWM, Ethernet, and telemetry
  • Industrial-grade UAV ground station design
  • Compatible with advanced UAV cameras and gimbals
  • SIM slot for network-based operations

Packing Includes:

1 x SkyDroid G20 2.4G/5.8G Industrial Drone Control System

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
