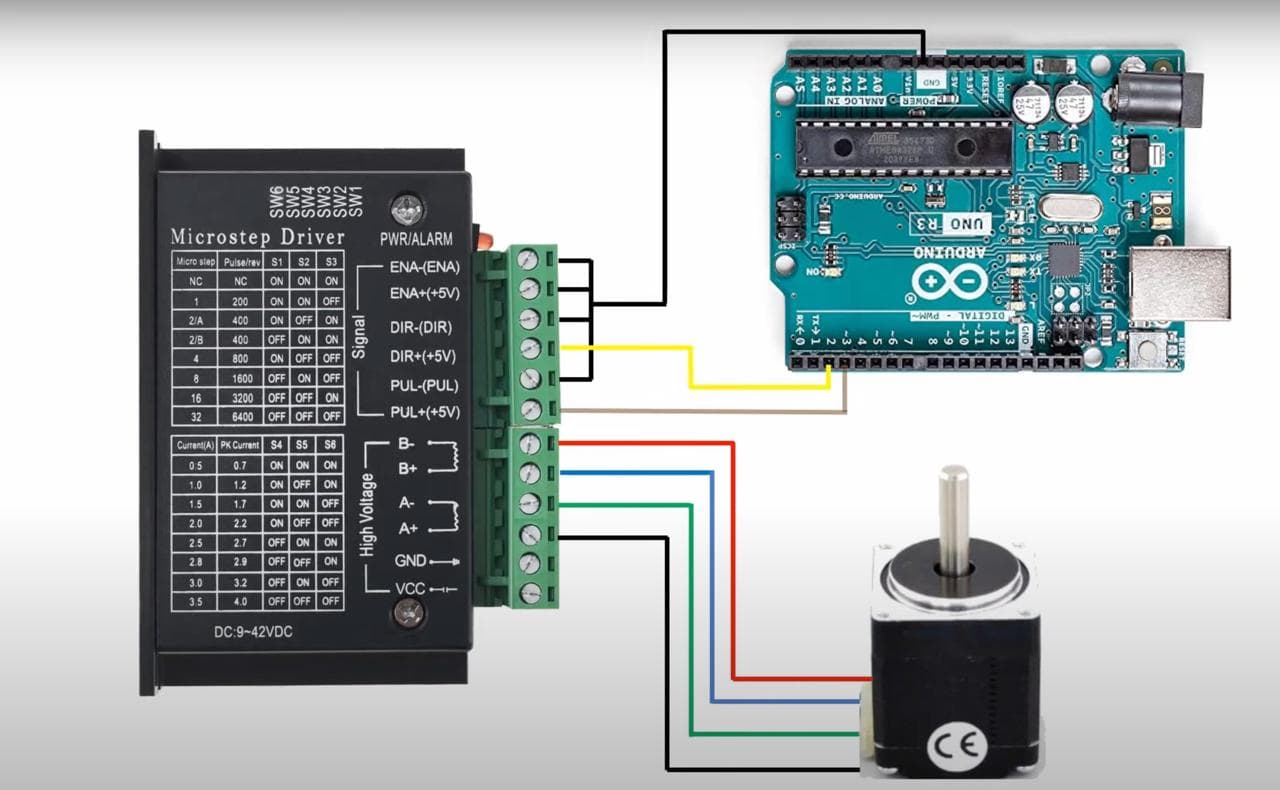

TB6600 Stepper Motor Driver Controller (9–42V, 4.0A)

TB6600 Stepper Motor Driver Controller (9–42V, 4.0A)

Availability: In stock
₹ 410.00 (Inc.GST)
₹ 410.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9270050

Short Description:
  • input voltage : 9V to 42V DC
  • Compatible : NEMA 17, NEMA 23, and NEMA 24 motors
  • Output Current : 4.0A
  • Microstepping : Full step, 1/2, 1/4, 1/8, 1/16, 1/32





  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name TB6600 Stepper Motor Driver
Driver Type Bipolar Stepper Motor Driver
Control Method PWM Constant Current Chopper
Input Voltage 9 V – 42 V DC
Output Current 0.5 A – 4.0 A (adjustable via DIP switch)
Recommended Current Range 0.5 A – 3.5 A (continuous stable operation)
Compatible Motors NEMA 17, NEMA 23, NEMA 24, NEMA 34 stepper motors
Microstepping Options Full step, 1/2, 1/4, 1/8, 1/16, 1/32
Pulse Input Frequency Up to 20 kHz
Logic Signal Voltage 3.3 V – 5 V compatible
Control Interface STEP / DIR / ENABLE
Protection Features Over-current protection, over-temperature protection, short-circuit protection
Cooling Method Aluminum heat sink (passive cooling)
Operating Temperature –10°C to +45°C
Storage Temperature –40°C to +70°C
Driver Efficiency Up to 96%
Isolation Optically isolated inputs
Weight Approx. 150 – 250 g
Dimensions Approx. 96 × 71 × 28 mm
Housing Industrial aluminum enclosure

The Xrobo.in TB6600 Stepper Motor Driver is a high-power controller supporting 9–45V DC and up to 4.5A, ideal for driving NEMA17, NEMA23, and NEMA24 stepper motors. It offers multiple microstepping settings, stable pulse control, and built-in protections for CNC machines, automation systems, and robotics applications.

Application Areas:

  • High-power industrial stepper driver
  • Supports large motors up to NEMA 34
  • Smooth microstepping for precision motion
  • Compatible with Arduino, CNC controllers, PLC, and motion controllers
  • Adjustable current for optimal motor performance
  • Industrial-grade protection and reliability

Packing List Includes:

  • 1 x TB6600 Stepper Motor Driver

The product has a warranty for 1 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
