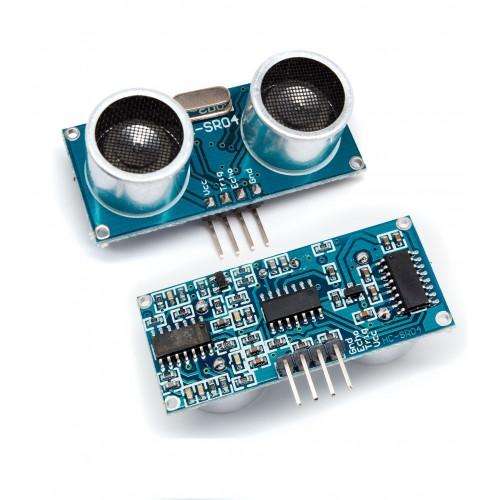

Ultrasonic Sensor HC-SR04 Distance Module

Ultrasonic Sensor HC-SR04 Distance Module

Availability: In stock (Shipped within 2-3days)
₹ 106.00 (Inc.GST)
₹ 106.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

7560005

Short Description:
  • 2cm to 450cm measuring range
  • 40kHz ultrasonic transmitter and receiver
  • High accuracy up to 3mm
  • Operates on 5V DC
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 15 Days Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Details
Model HC-SR04
Operating Voltage 5V DC
Operating Current < 15mA
Operating Frequency 40kHz
Measuring Range 2cm – 450cm
Accuracy Up to 3mm
Measuring Angle ≤ 15°
Trigger Signal 10µs TTL Pulse
Echo Output TTL Pulse
Interface Pins VCC, Trig, Echo, GND
Dimensions 45 × 20 × 15 mm
Technology Ultrasonic SONAR Ranging

The HC-SR04 is a non-contact ultrasonic distance sensor that uses 40kHz sound waves to measure the distance of objects. It is widely used in robotics, automation, obstacle avoidance, tank level monitoring, and Arduino-based projects. The module combines an ultrasonic transmitter, receiver, and control circuit in a compact package.

Key Features:

  • Non-contact ultrasonic distance measurement
  • Range from 2cm to 450cmH
  • igh accuracy up to 3mm
  • Stable and reliable readings
  • Compact and lightweight design
  • Works with Arduino, ESP32, ESP8266, Raspberry Pi, and STM32
  • Not affected by ambient light conditions

Packing List Includes:

  • 1 × HC-SR04 Ultrasonic Sensor Module

The product has a warranty for 15 Days against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
