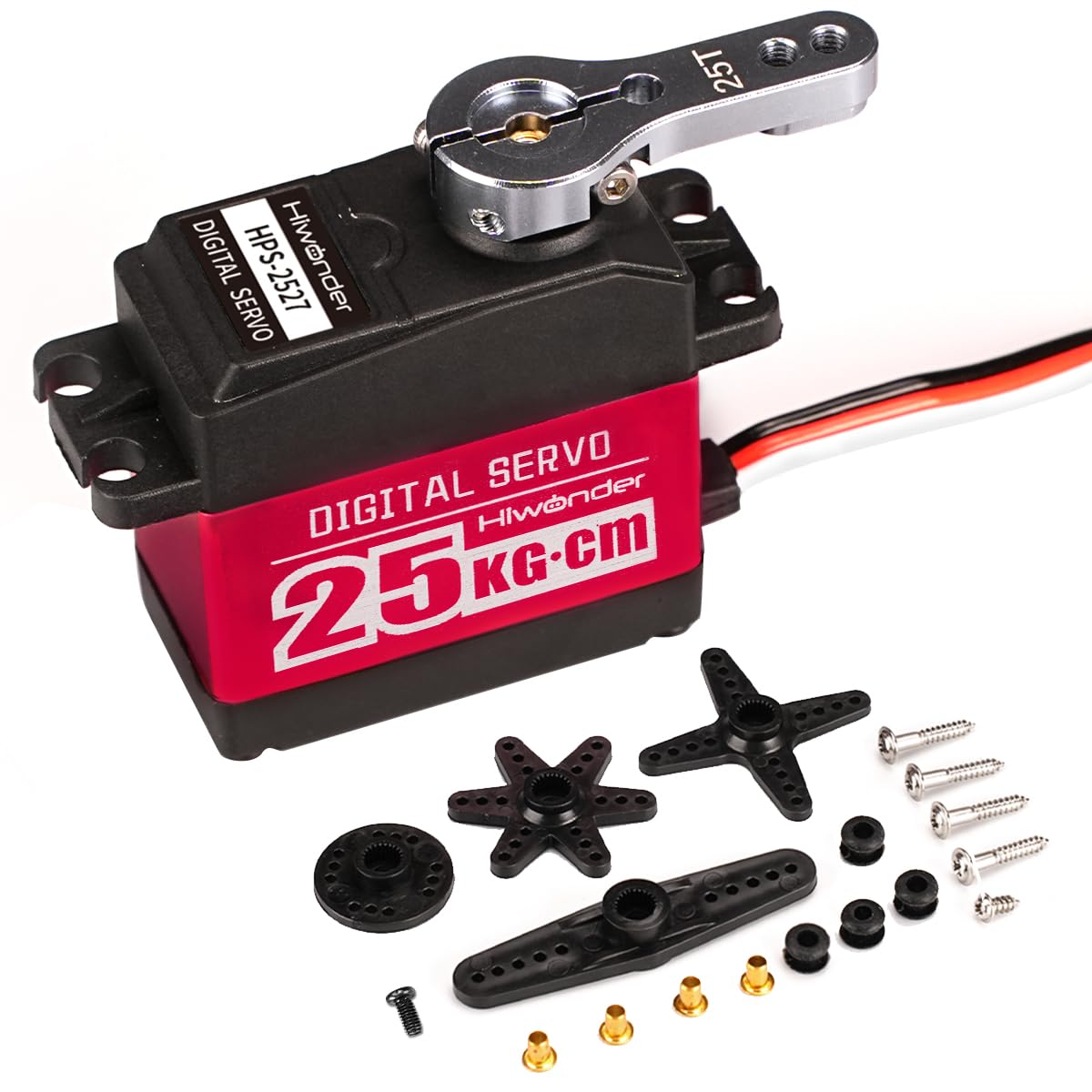

RC HPS Metal Gear 25kg High Torque Digital Servo Single Shaft

RC HPS Metal Gear 25kg High Torque Digital Servo Single Shaft

Availability: Out of stock
₹ 2,950.00 (Inc.GST)
₹ 2,950.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2971000

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Model Type High-Torque Digital Servo
Torque Rating 25 kg·cm @ 7.4V
Operating Voltage 4.8V – 7.4V
Gear Type Full Metal Gear
Motor Type High-Performance Digital Coreless Motor / HPS type
Shaft Type Single Shaft
Speed ~0.20 sec/60° Rotation Speed at 7.4V
Control Signal PWM (50–330 Hz compatible)
Angle Range 180° standard (270° optional depending on version)
IP IP67 Waterproof
Connector Type Standard 3-pin (Signal + VCC + GND)
Case Material Metal & Heat-Dissipating Aluminum Alloy
Dimensions Standard RC Servo Size (approx. 40 × 20 × 40.5 mm)
Applications Robotics, RC cars, RC planes, industrial mechanisms

The Xrobo.in High-torque 25kg·cm digital servo featuring full metal gears, durable aluminum housing, and a powerful coreless motor. Designed for precision and reliability, this servo is ideal for robotics, RC vehicles, automation projects, and high-load mechanical applications.

The product has a warranty for 3 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
