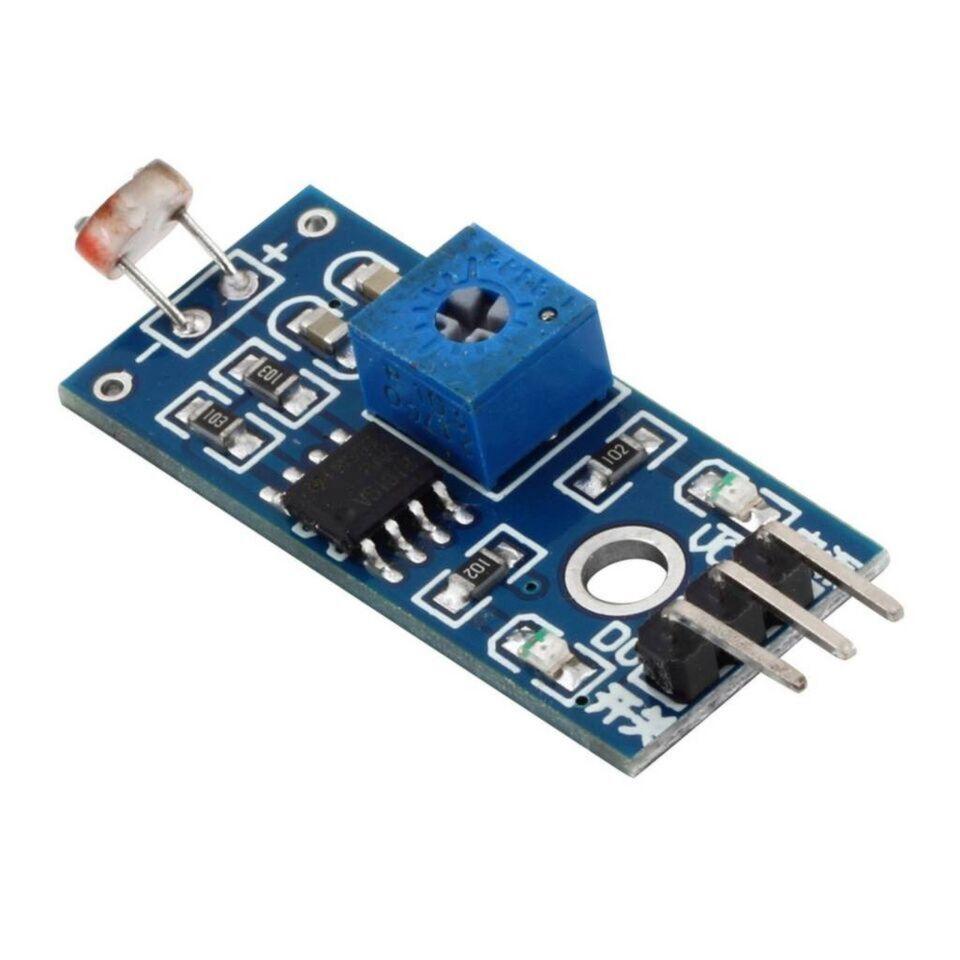

LM393 Photosensitive LDR Light Sensor Module

LM393 Photosensitive LDR Light Sensor Module

Availability: In stock (Shipped within 2-3days)
₹ 38.00 (Inc.GST)
₹ 38.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

7560009

Short Description:
  • LM393-based LDR light sensing module
  • Operating voltage: 3.3V–5V DC
  • Compatible with Arduino, ESP32, and Raspberry Pi
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 15 Days Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Details
Sensor Type LDR (Photoresistor)
Comparator IC LM393
Operating Voltage 3.3V – 5V DC
Operating Current ~15mA
Output Type Analog (A0) + Digital (D0)
Sensitivity Adjustment Onboard Potentiometer

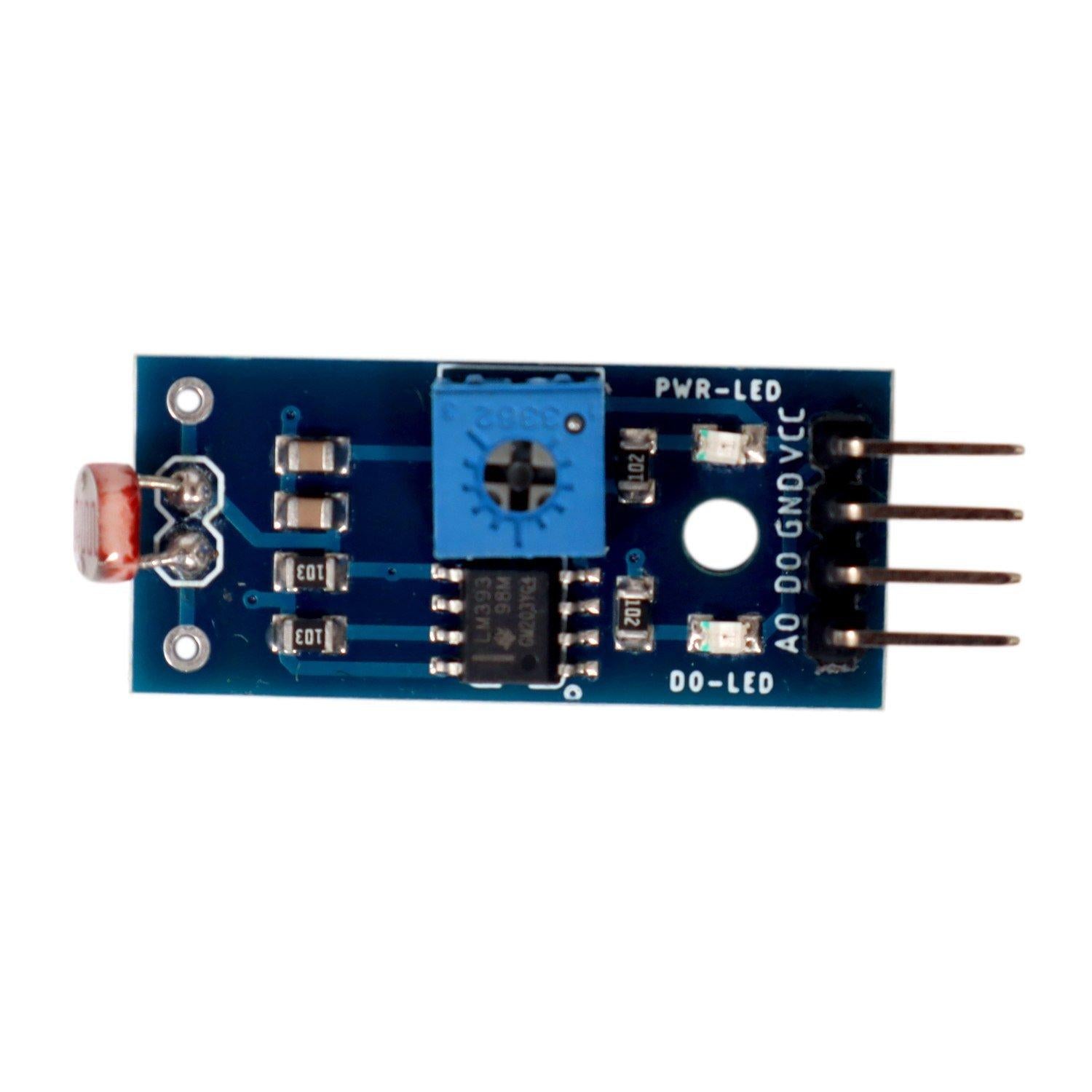

Interface Pins VCC, GND, A0, D0
Digital Output Adjustable Threshold Output
Indicators Power LED & Output LED
PCB Size Approx. 32 × 14 mm
Mounting Hole Yes
Compatibility Arduino, ESP32, ESP8266, Raspberry Pi, STM32

The LDR (Light Dependent Resistor) Light Sensor Module is a photosensitive sensor used to detect ambient light intensity. It combines an LDR with an LM393 comparator, providing both analog and digital outputs for light-based automation and sensing projects.

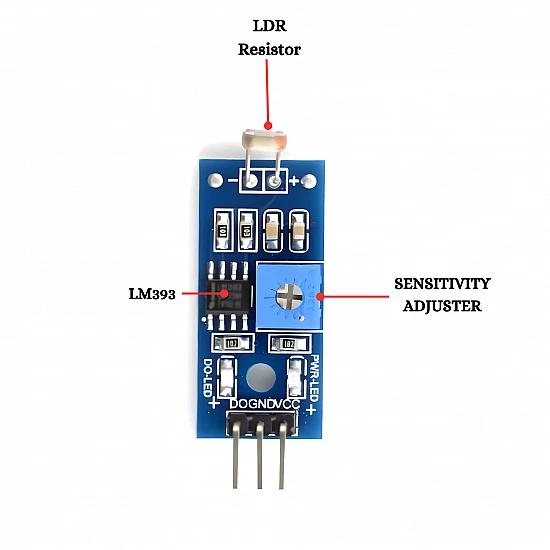

The module typically includes an LDR sensor, LM393 comparator circuit, and a potentiometer for adjusting sensitivity. It provides both analog output (AO) for variable light levels and digital output (DO) for threshold-based detection, making it easy to interface with microcontrollers such as Arduino, ESP32, and Raspberry Pi.

Key Features:

  • Detects ambient light intensity using Light Dependent Resistor (LDR)
  • Resistance changes based on light level (dark = high resistance, bright = low resistance)
  • Provides both analog (AO) and digital (DO) output signals
  • Built-in LM393 comparator IC for stable digital output
  • Adjustable sensitivity using onboard potentiometer
  • Operates on 3.3V – 5V DC supply
  • Low power consumption and cost-effective design
  • Fast response to changes in light conditions
  • Easy integration with Arduino, ESP32, Raspberry Pi, and other microcontrollers

Packing List Includes:

  • 1 × LDR Light Sensor Module

The product has a warranty for 15 Days against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
