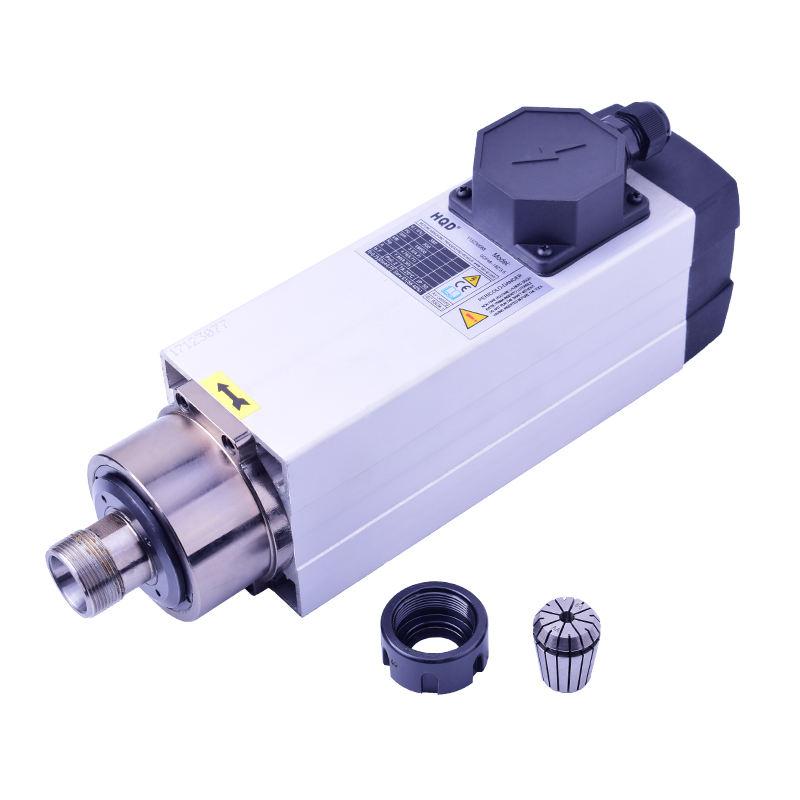

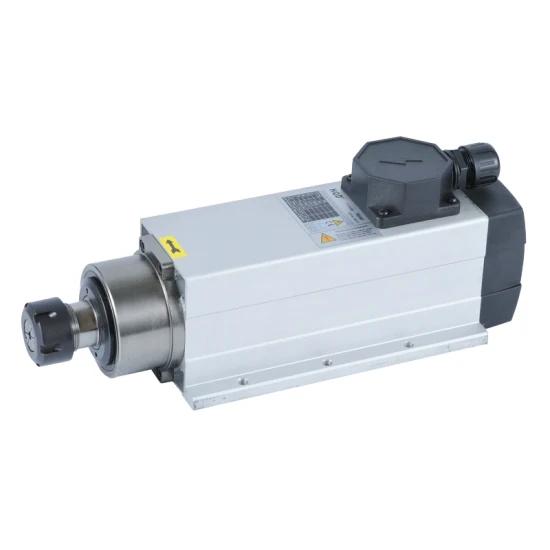

HQD Air Cooled Spindle 3.5kW ER20 220V 18000RPM - Square Spindle

HQD Air Cooled Spindle 3.5kW ER20 220V 18000RPM - Square Spindle

Availability: In stock (Shipped within 2-3 days)
₹ 19,500.00 (Inc.GST)
₹ 19,500.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970085

Short Description:
  • Power : 3.5kw HQD
  • RPM : 18000
  • Collect Size : ER20
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Model HQD
Rated Power 3.5 kW
Rated Voltage 220V
Current 7.8 A – 12 A
Frequency 300 Hz
Maximum Speed 18,000 RPM
Torque 1.33 Nm
Collet Type ER20
Tool Capacity Ø3.175 mm to Ø16 mm
Cooling Method Air-cooled
Lubrication Grease
Body Type Square Body
Weight Approx. 8 kg

The HQD 3.5kW ER20 spindle is designed for CNC routers, engraving machines, and light-to-medium-duty milling operations. It offers high-speed operation up to 18,000 RPM and supports a wide range of cutting tools through its ER20 collet system.

Applications:

  • Woodworking : Furniture panels, carving, cabinet doors
  • Sign Making : Acrylic letters, MDF signs, PVC sheets
  • CNC Routing : 2D and 3D routing operations
  • Engraving : Wood, plastic, aluminum engraving
  • Composite Machining : FRP, carbon fiber, composite boards
  • Light Metal Cutting : Aluminum and brass machining
  • Mold Making : Prototypes and pattern machining

Key Features:

  • High-speed 18,000 RPM spindle for smooth cutting.
  • ER20 collet supports a wide range of tool diameters.
  • Square-body design allows easy mounting on CNC machines.
  • Precision P4 bearings for reduced runout and better surface finish.
  • Suitable for continuous industrial operation with proper VFD setup.
  • Lower maintenance due to grease-lubricated bearing system.

Packing List Includes:

1 x HQD Air Cooled Spindle 3.5kW ER20 220V 18000RPM

The product has a warranty for 6 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
