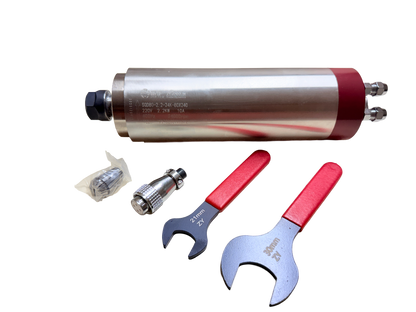

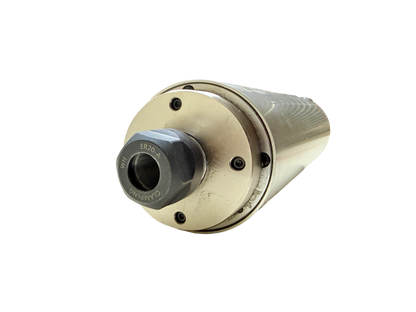

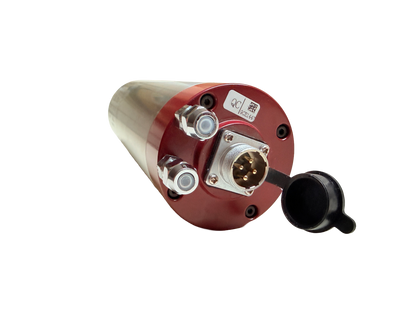

Water Cooled Spindle Motor 2.2kW ER20 220V 24000RPM - 80mm

Water Cooled Spindle Motor 2.2kW ER20 220V 24000RPM - 80mm

Availability: Out of stock
₹ 19,116.00 (Inc.GST)
₹ 19,116.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970205

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Spindle Type Water-Cooled CNC Spindle For Stone
Power Rating 2.2 kW
Voltage 220V AC
Speed 24,000 RPM
Collet Type ER20
Body Diameter 80 mm
Cooling Method Water Cooling (Closed Loop Recommended)
Frequency 400 Hz
Runout Accuracy ≤ 0.01 mm
Bearing Type High-precision angular contact bearings
Phase 3-Phase Spindle (drives with VFD)
Water Flow Requirement ≥ 1.5 L/min
Water Temperature ≤ 25°C (Recommended)
Noise Level Very Low (due to water cooling)
Application CNC routers, engraving, aluminum cutting, woodworking, acrylic, plastics

The Xrobo.in Water Cooled Spindle Motor 2.2kW ER20 220V 24000RPM is a precision CNC spindle optimized for routing, engraving, and light milling across wood, plastics, and non‑ferrous metals. Driven by a matched VFD, it maintains stable torque across the operating range with low runout thanks to high‑precision ceramic bearings. The collet system ensures secure toolholding with minimal eccentricity, while the Water-cooled architecture preserves bearing life during long jobs. Mount using an appropriate clamp (body diameter class) and ensure correct VFD parameters (voltage, frequency, acceleration ramps) for best results.

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
