Parameter |
Specification |
|
Motor Type |
Bipolar Hybrid Stepper (NEMA17) |
|
Frame Size |
42 × 42 mm |
|
Body Length |
40 mm (typ.) |
|
Step Angle |
1.8° (200 steps/rev) |
|
Holding Torque |
4.2 Kg·cm (0.412 Nm) |
|
Rated Current/Phase |
1.7 A |
|
Phase Resistance |
1.60 Ω |
|
Phase Inductance |
3.5 mH |
|
Shaft |
5 mm D-shaft, Single Shaft |
|
Rotor Inertia |
50–60 g·cm² |
|
Detent Torque |
0.2–0.6 Kg·cm (typ.) |
|
Insulation Class |
Class B (130°C) |
|
Applications |
3D printers, CNC axes, linear stages, robotics |

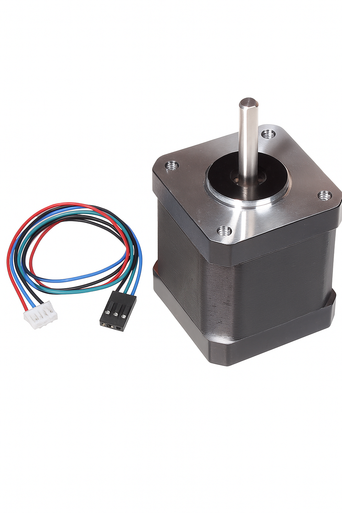

This high-torque NEMA17 stepper motor delivers approximately 0.4 N·m holding torque with a standard 1.8° step angle, making it suitable for heavy-duty motion control applications. Designed for industrial environments, it offers strong torque output, stable stepping performance, and reliable operation in demanding CNC and automation systems.
Application Areas:
- CNC routers and milling machines
- Industrial automation equipment
- Robotics and motion control systems
- Large-format 3D printers
- Pick-and-place machinery
- Precision positioning systems

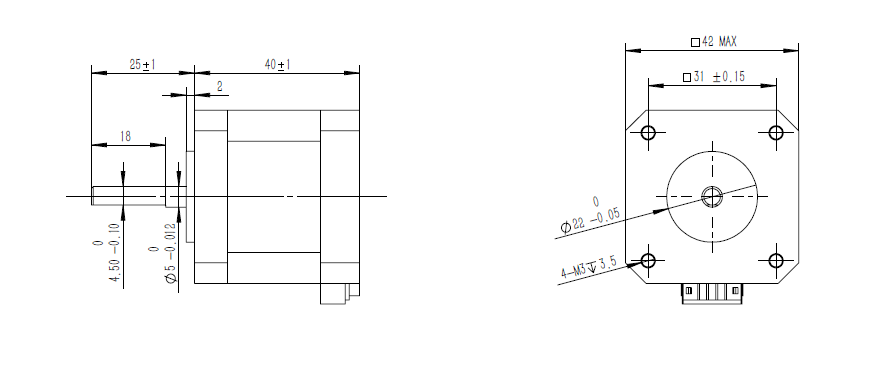

Drawings:
Wires Connection:
- Red : A+
- Green : A-
- Yellow : B+
- Blue : B-
Packing List Includes:
- 1 x NEMA17 4.2kg-cm Stepper Motor
