Parameter |
Specification |
|
Motor Type |
Bipolar Hybrid Stepper (NEMA23) |
|
Frame Size |
57 × 57 mm |
|
Body Length |
51 mm (typ.) |
|
Step Angle |
1.8° (200 steps/rev) |
|
Holding Torque |
10.0 Kg·cm (0.981 Nm) |
|
Rated Current/Phase |
2.8 A |
|
Phase Resistance |
0.9 Ω |
|
Phase Inductance |
2.9 mH |
|
Shaft |
6.35 mm D-shaft, Single Shaft |
|
Rotor Inertia |
220–480 g·cm² |
|
Detent Torque |
0.2–0.6 Kg·cm (typ.) |
|
Insulation Class |
Class B (130°C) |
|
Applications |
3D printers, CNC axes, linear stages, robotics |

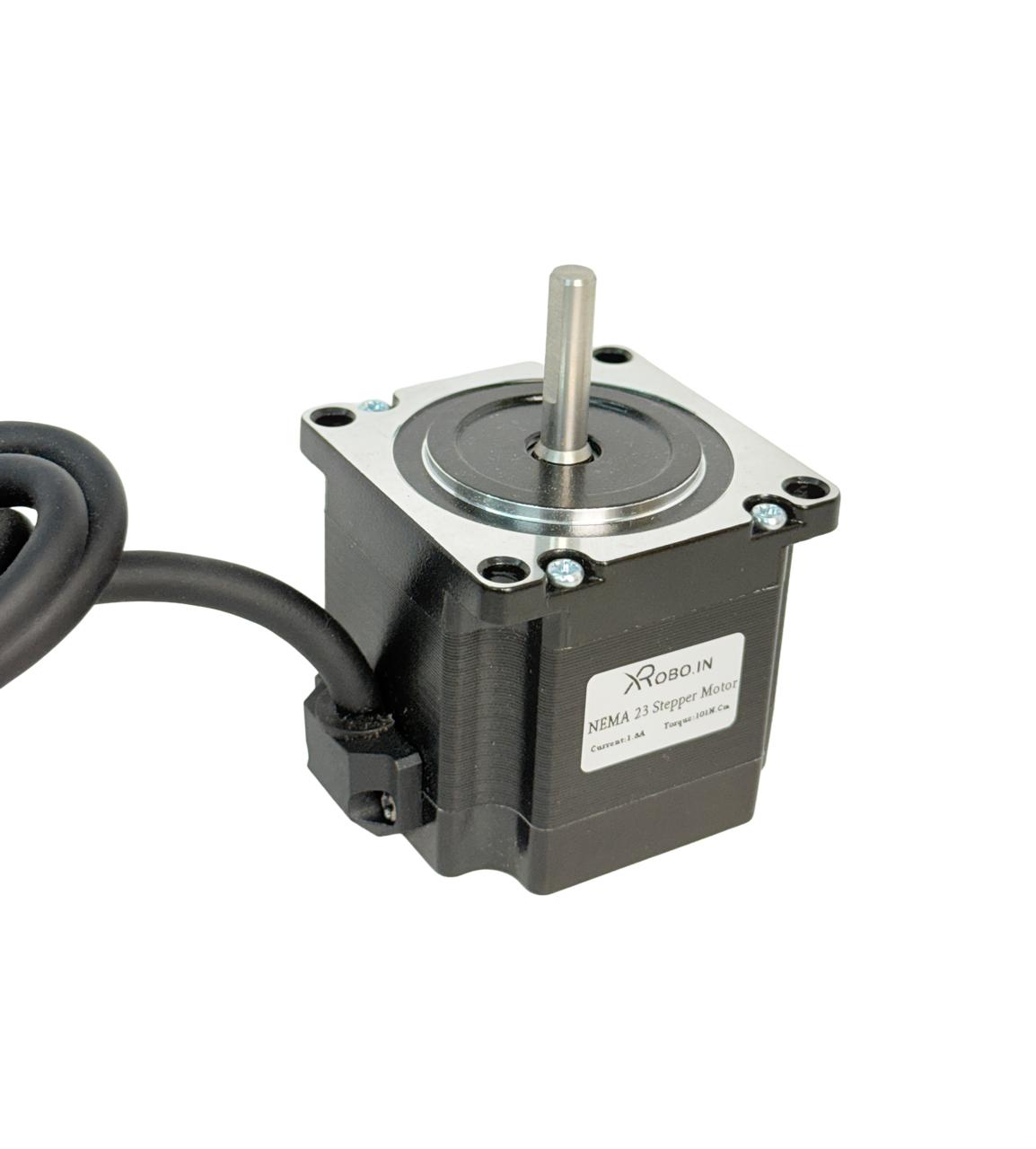

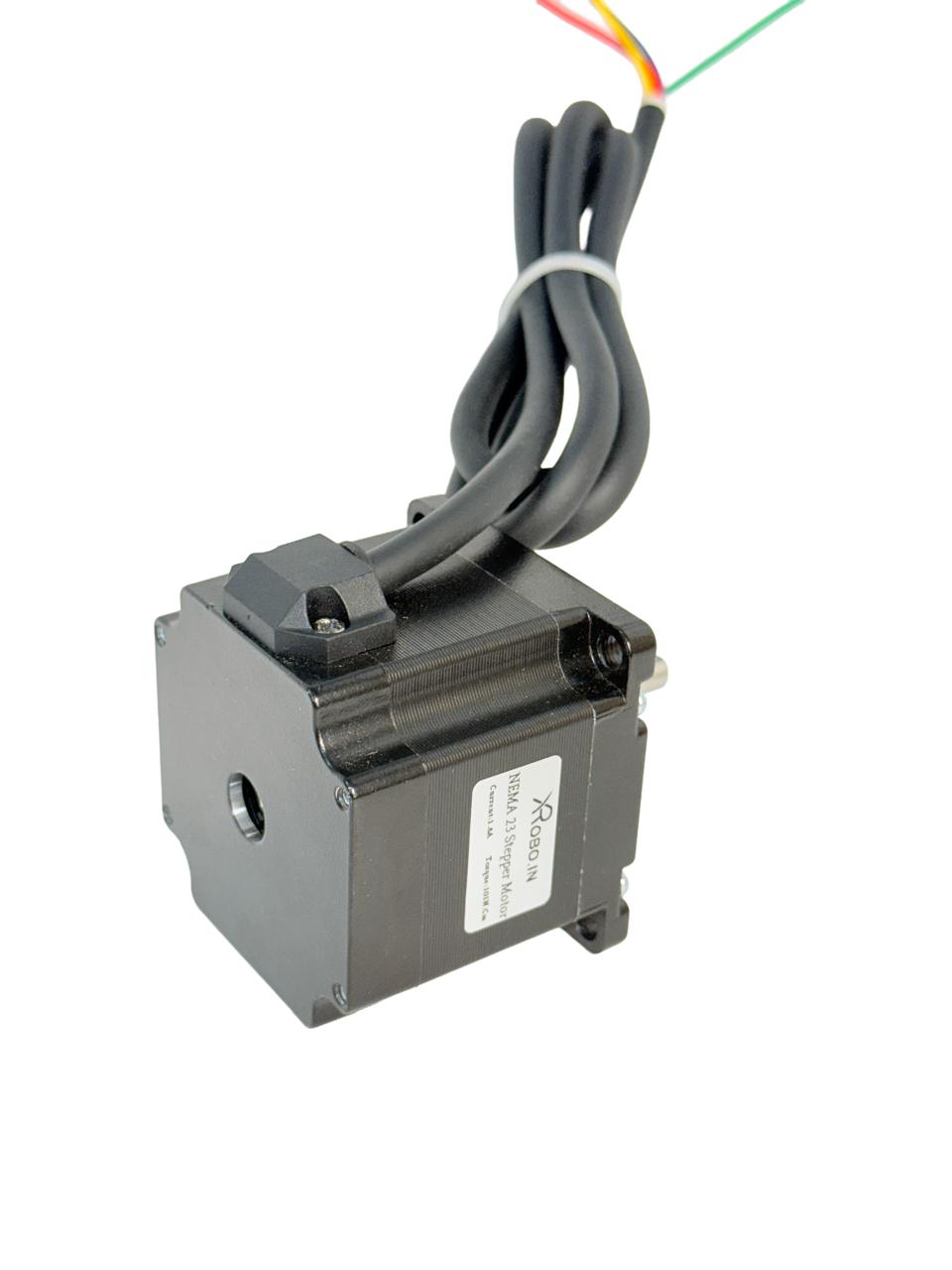

This high-torque NEMA23 Waterproof stepper motor delivers approximately 1.0 N·m holding torque with a standard 1.8° step angle, making it suitable for heavy-duty motion control applications. Designed for industrial environments, it offers strong torque output, stable stepping performance, and reliable operation in demanding CNC and automation systems.
Application Areas:
- CNC routers and milling machines
- Industrial automation equipment
- Robotics and motion control systems
- Large-format 3D printers
- Pick-and-place machinery
- Precision positioning systems
Wires Connection:
- Red : A+
- Green : A-
- Yellow : B+
- Blue : B-

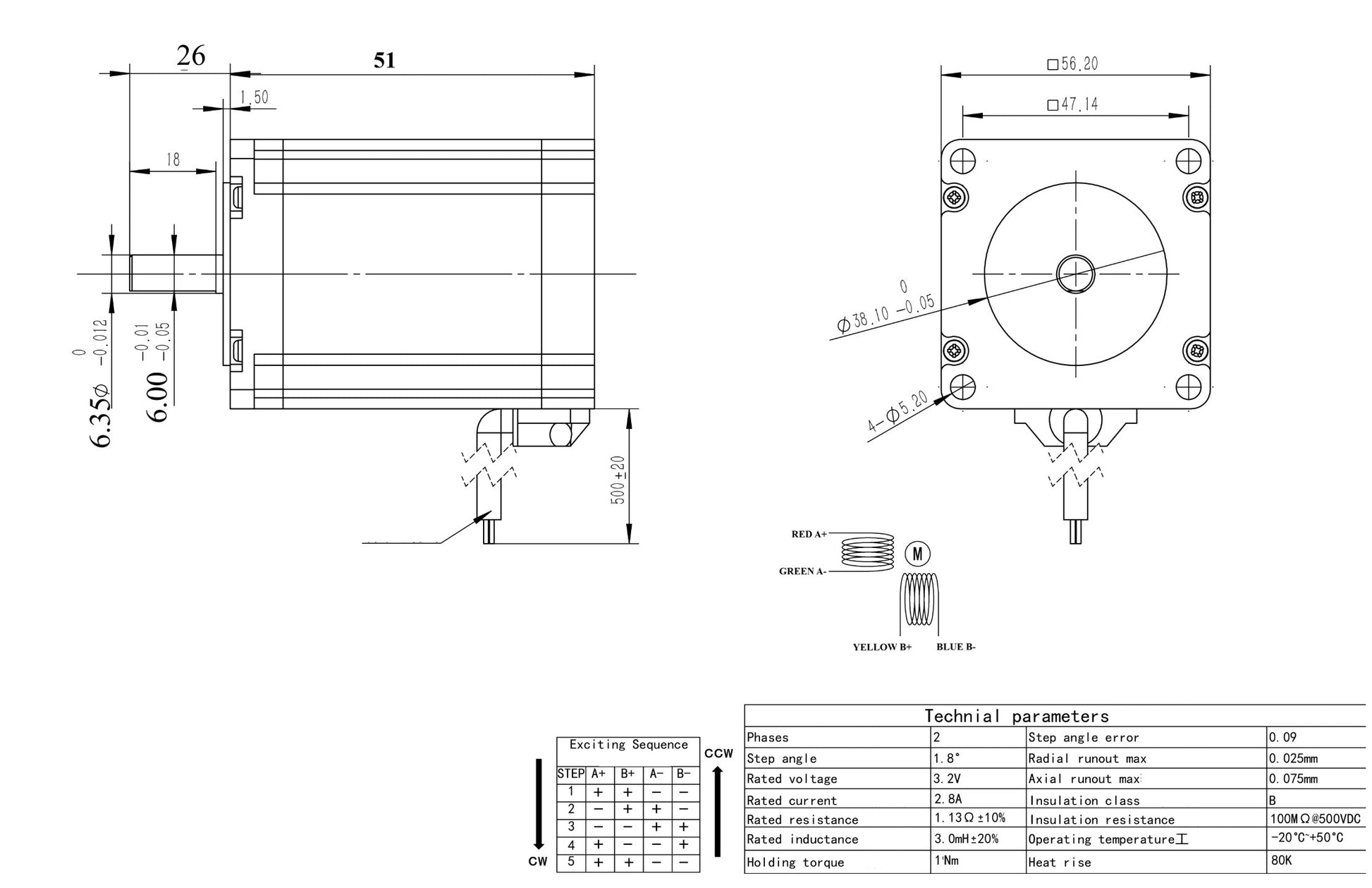

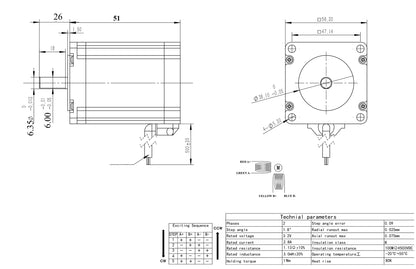

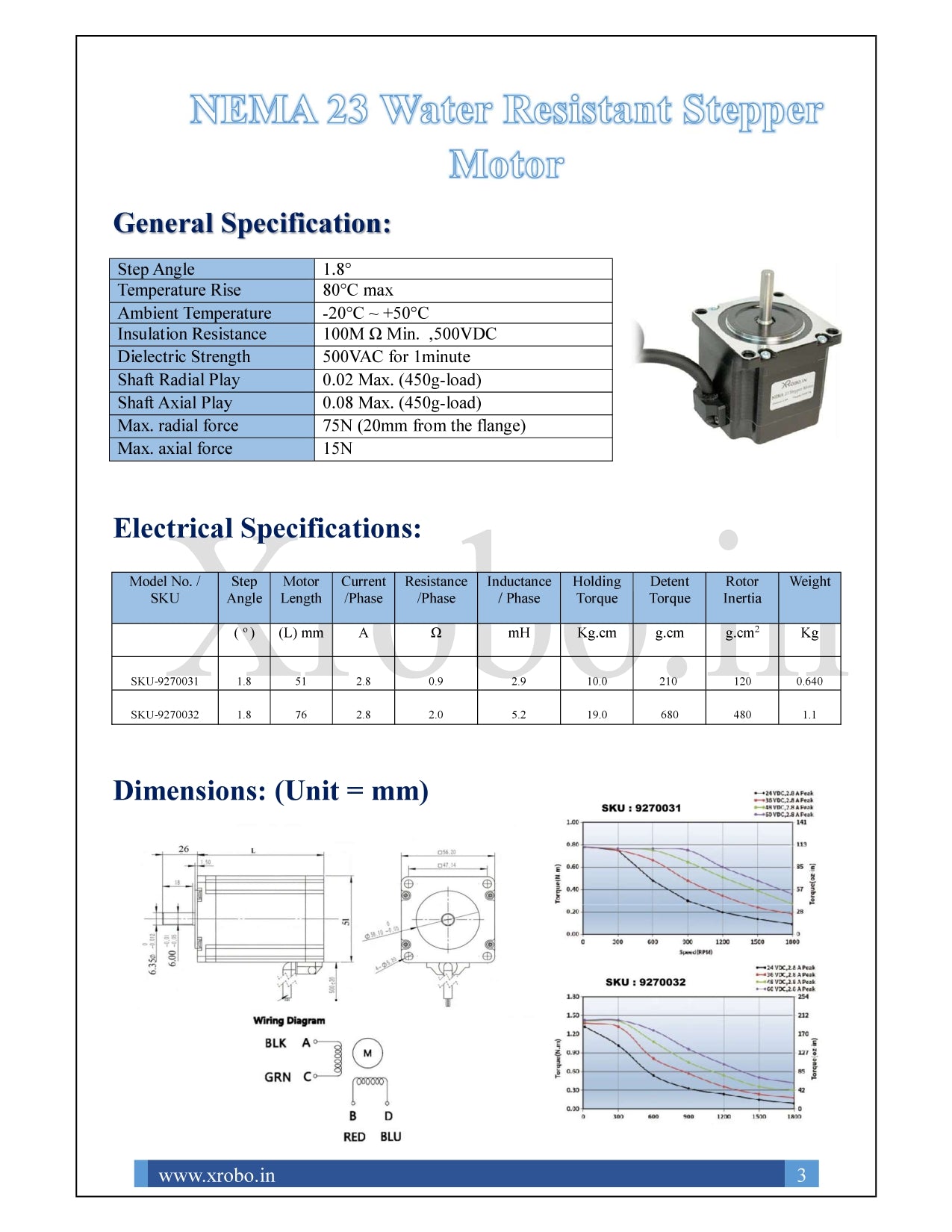

Datasheets:
Packing List Includes:
- 1 x NEMA23 10kg-cm Waterproof Stepper Motor
