E-BIKE 24V 350Watt BLDC 8 Inch Hub Motor with Controller And Throttle

E-BIKE 24V 350Watt BLDC 8 Inch Hub Motor with Controller And Throttle

Availability: In stock
₹ 5,990.00 (Inc.GST)
₹ 5,990.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970073

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Specification Details
Motor Type Brushless DC (BLDC) Non-Geared / Gearless Hub Motor
Rated Voltage 24V DC
Rated Power 350W
Wheel / Tire Size 8 Inch (approx. 254 mm outer diameter)
Rated Speed ~300 – 450 RPM (No-load up to 800 RPM)
Vehicle Top Speed 12 to 28 km/h
Rated Current ~13 – 14A
Maximum Torque ~15 – 22 Nm
Efficiency >80% – 85%
Sensors / Waterproof 3 Hall sensors, IP54 to IP65 rating depending on variant
Load Capacity 80 kg to 150 kg
Motor Weight ~3.5 kg to 5 kg

This 8-inch 24V 350W BLDC hub motor is commonly used across compact e-scooters, kids’ EVs, and lightweight mobility units.
This motor is manufactured with high-density copper windings, sealed waterproof casing (IP54–IP55), and 6-pole BLDC architecture for excellent acceleration at low speeds.

Key Features:

Compact & Efficient Design

  • Integrated motor + wheel (hub drive)
  • No external chain or gearbox required

High Torque at Low Speed

  • Output speed: ~400–550 RPM
  • Torque: ~12–20 Nm

Smooth & Silent Operation

  • BLDC technology (brushless)
  • Low noise and high efficiency

Electrical Performance

  • Rated voltage: 24V DC
  • Rated current: ~13–15A

Durable & Weather Resistant

  • Waterproof rating: IP54–IP55
  • Sealed aluminum housing

Easy Integration

  • Works with 24V BLDC controllers (15–17A)
  • Includes Hall sensors for precise control

Applications

  • Electric scooters (8-inch wheel systems)
  • Compact e-bikes & folding EVs
  • Robotics / AGV platforms
  • Kids EV vehicles & ride-ons
  • DIY EV conversion kits

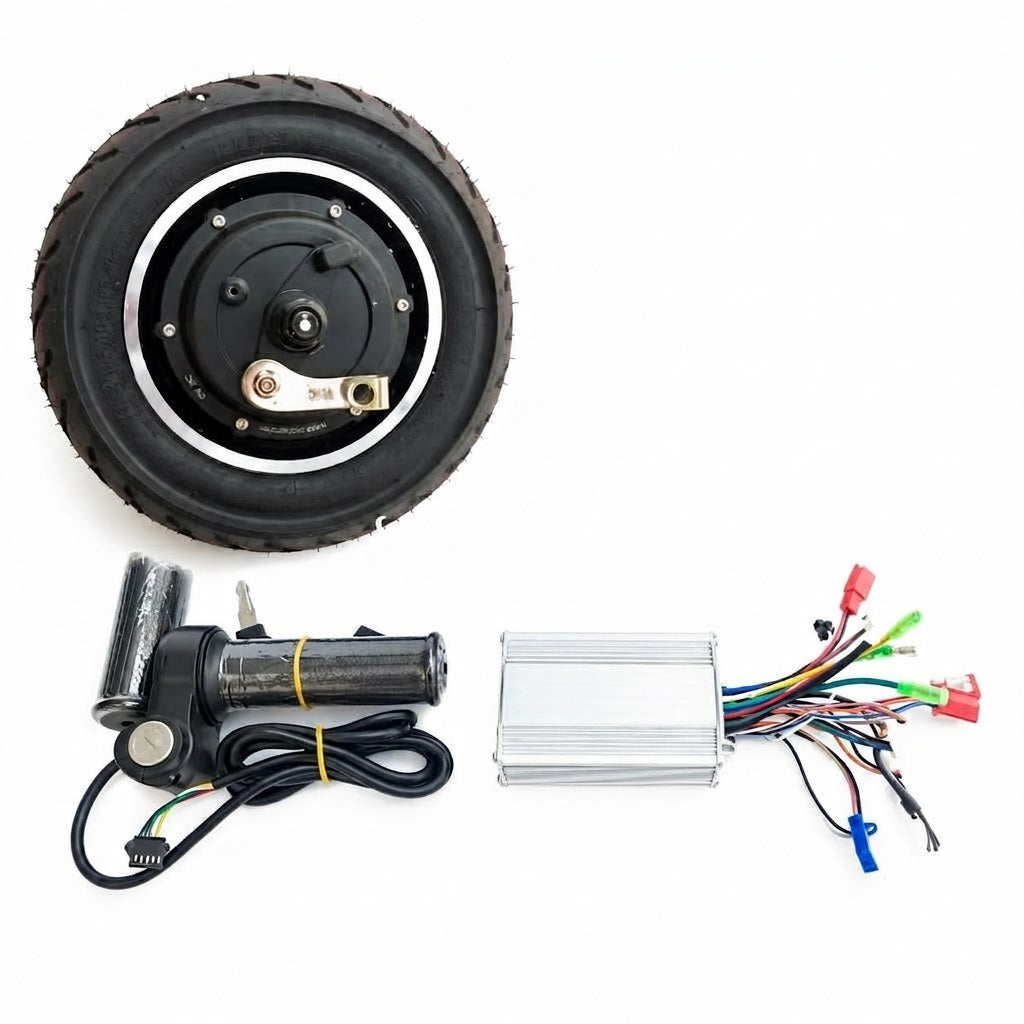

Packing List Includes:

  • 1 x E-bike 24v 350watt BLDC 8 inch Wheel hub Motor

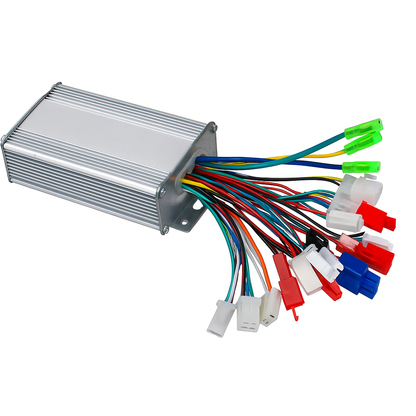

  • 1 x E-Bike 24V 350Watt Controller

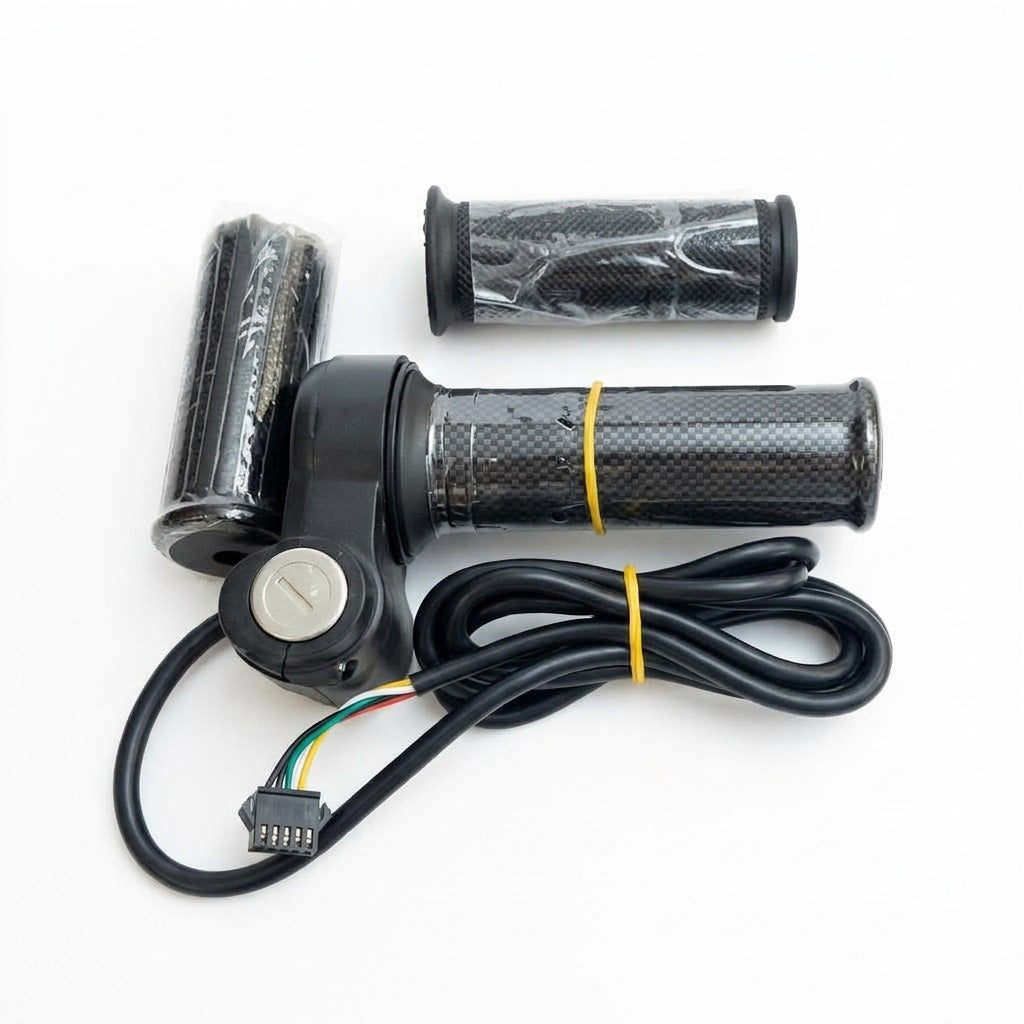

  • 1 x E-bike 24V throttle

The product has a warranty for 6 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
