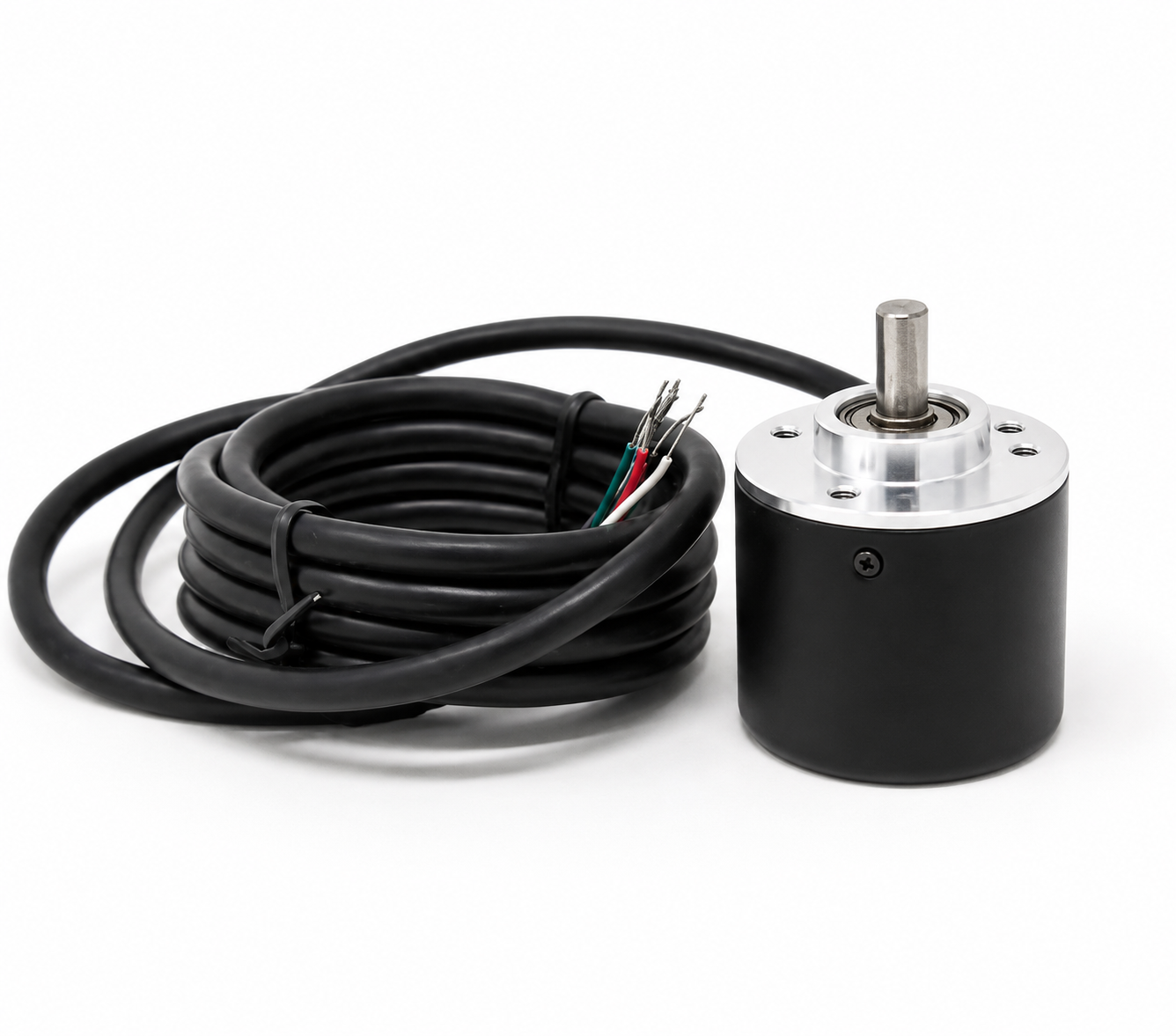

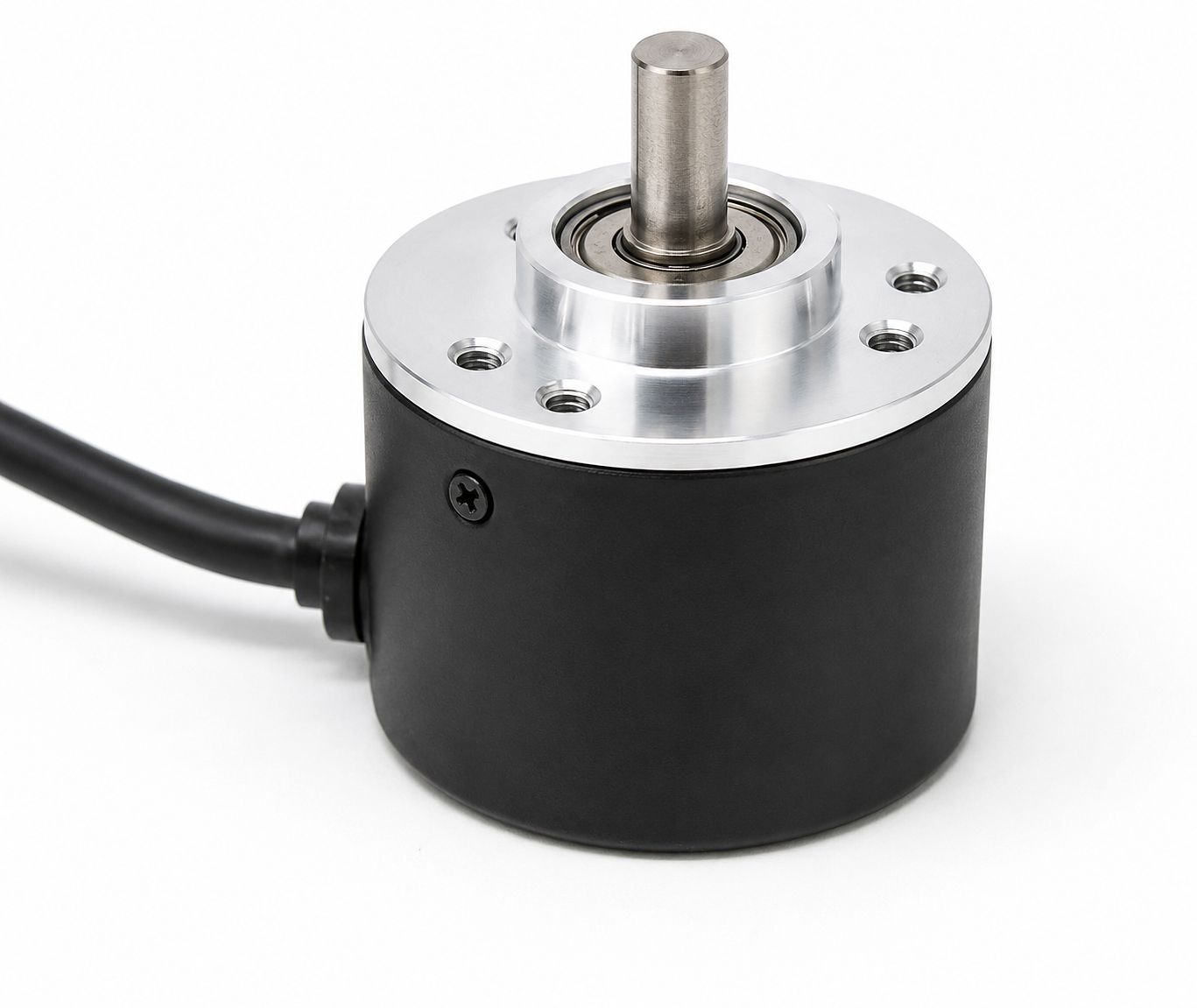

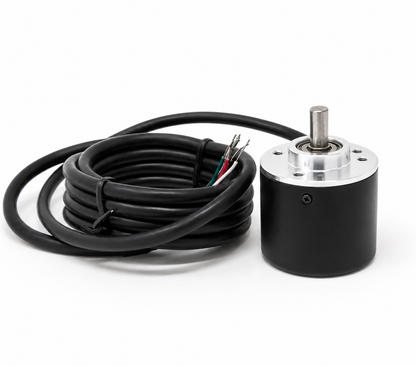

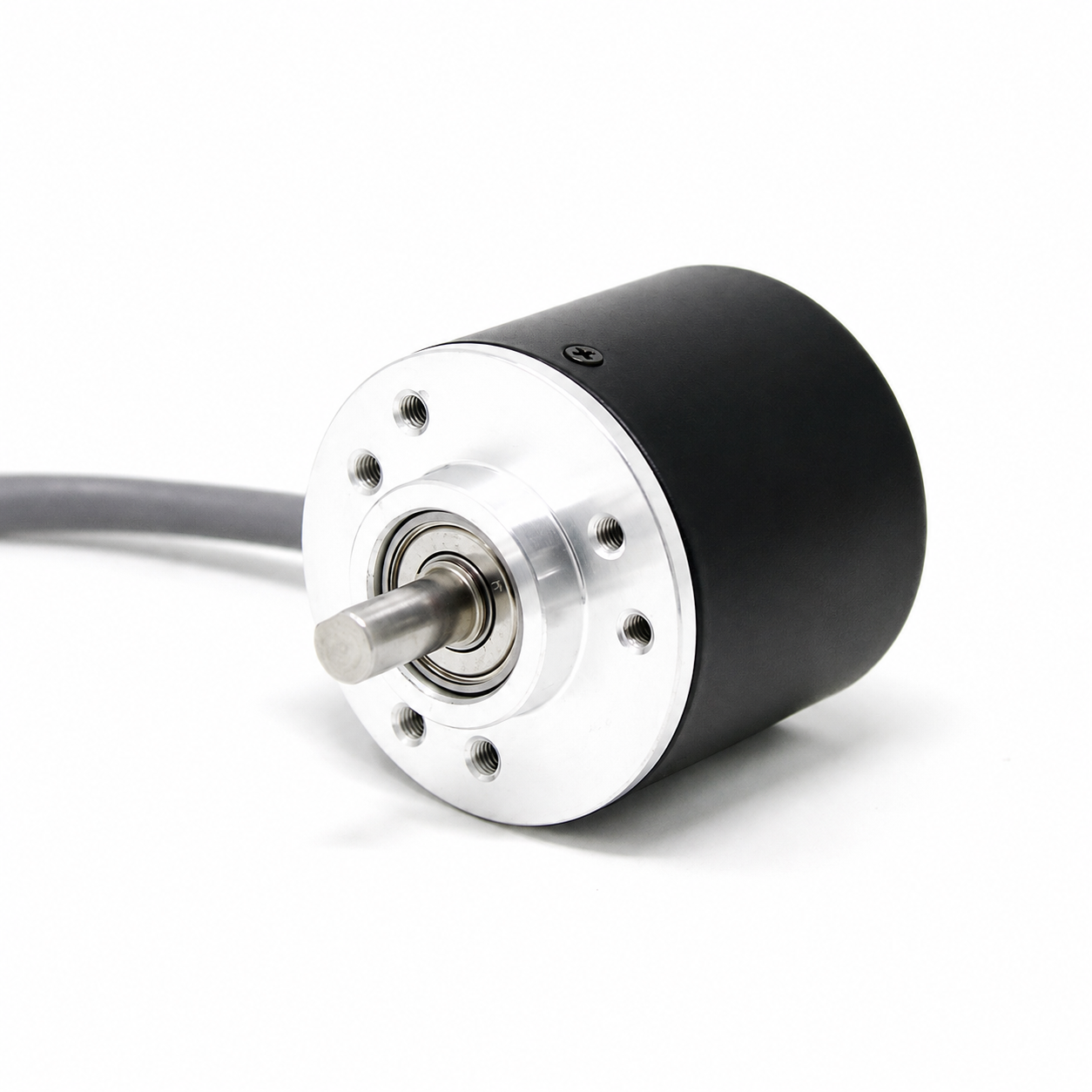

2500PPR 3-Phase Optical Rotary Encoder

2500PPR 3-Phase Optical Rotary Encoder

Availability: In stock (Shipped within 2-3days)
₹ 4,200.00 (Inc.GST)
₹ 4,200.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

7560014

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 3 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Encoder Type Incremental Optical Rotary Encoder
Resolution 2500 PPR (Pulse Per Revolution)
Output Phase ABZ Phase (3-Channel Quadrature Output)
Output Channels A, B, Z (Index Pulse)
Counts Per Revolution (CPR) 10,000 counts/revolution (4× quadrature decoding)
Output Type NPN Open Collector
Operating Voltage 5–24 V DC
Current Consumption ≤40 mA
Maximum Speed 3000 RPM
Protection Rating IP54
Operating Temperature -24°C to +84°C
Shaft Type D-Type Solid Shaft
Shaft Diameter 6 mm
Shaft Length 12 mm
Mounting Hole M3
Body Dimensions Ø40 × 38.4 mm
Cable Length 2 m Shielded Cable
Weight Approx. 160 g
Construction Industrial-grade housing with stainless steel shaft
Interface Phase A, Phase B, Phase Z, VCC, GND, Shield

The 2500PPR Incremental Optical Rotary Encoder is a precision motion-feedback sensor that provides accurate position, speed, and direction measurement using quadrature A/B outputs. Operating from 5–24V and capable of up to 5000 RPM, it is ideal for robotics, CNC machines, industrial automation, and motor control applications.

Key Features:

  • 2500PPR high-resolution incremental output
  • AB phase quadrature signal for direction detection
  • Optical sensing technology for accurate feedback
  • 10000 CPR when using 4× quadrature decoding
  • Industrial-grade construction
  • Stainless steel solid shaft
  • Compact and lightweight design
  • Anti-jamming performance
  • IP52 protection against dust and limited water ingress
  • Easy mounting with M3 mounting holes
  • Long 1.5 m shielded cable for installation flexibility

Wire Connections:

  • Red : VCC +5V to +24V
  • Black : GND
  • White : Channel A
  • Green : Channel B
  • Yellow : Channel Z
  • Shield : Ground Shield

Packing List Includes:

  • 1 x Optical Rotary Encoder 2500PPR

The product has a warranty for 3 Months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
