| Parameter | Description |
|---|---|
| Model Type | NEMA34 AC Servo Motor With 23bit Multi turn encoder |
| Rated Power | 750W |
| Rated Current | 3.8A |
| Rated Voltage | 220VAC |
| Rated Torque | 3.35 N·m |
| Rated Speed | 3000RPM |
| Peak Speed | 6000RPM |
| Rotor Inertia | 1.71x10kg.m |
| Motor Poles | 10 poles |
| Encoder Line | 23bit |
| Insulation Class | F (155°C) |
| Protection Class | IP65 |
| Weight | 1.5kg |
The Xrobo.in AC servo 750 W, 220 V AC servo motor designed for applications requiring accurate speed, position and torque control. It has a rated speed of 3000 RPM and rated torque of 3.35 N·m, with a peak torque capability of 7.1 N·m. The motor is rated IP65, making it suitable for industrial environments where protection against dust and water spray is required.
The manufacturer lists brake and encoder options, including a 2500 PPR encoder, and indicates that the motor can be supplied with compatible drive/controller options.

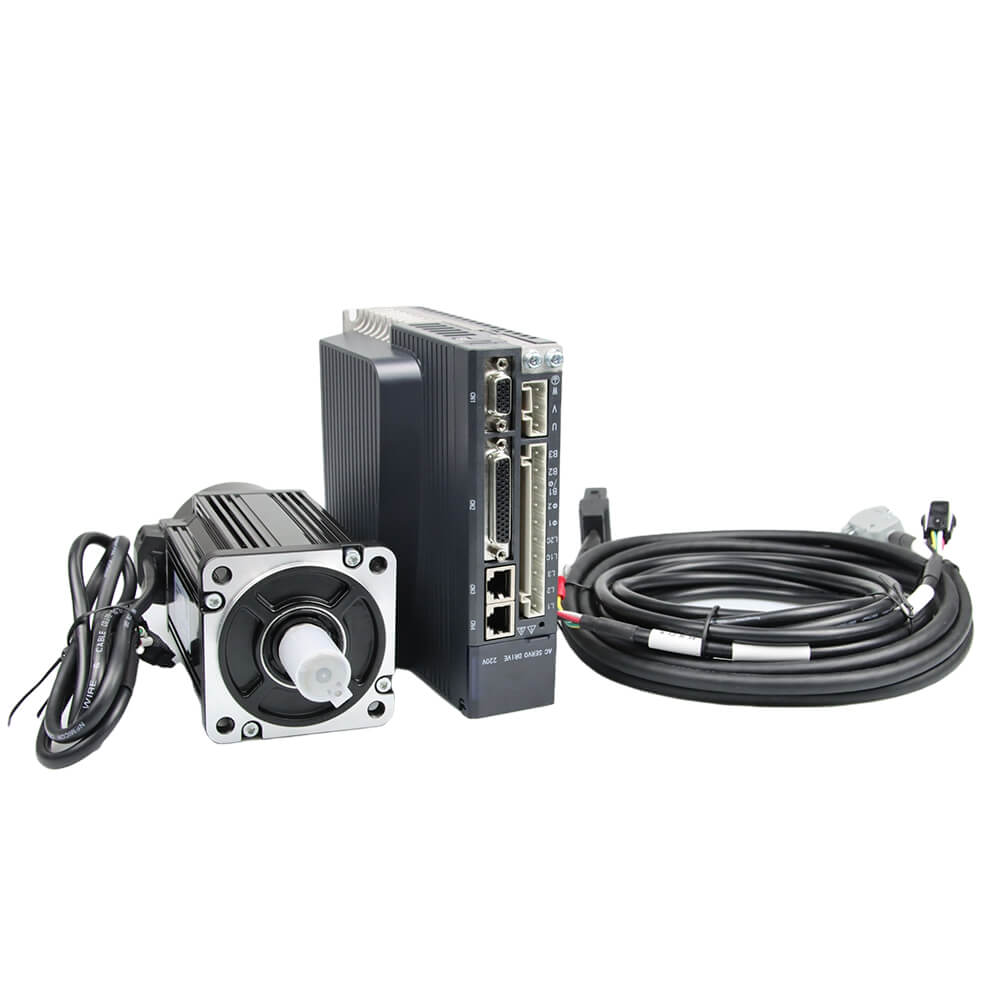

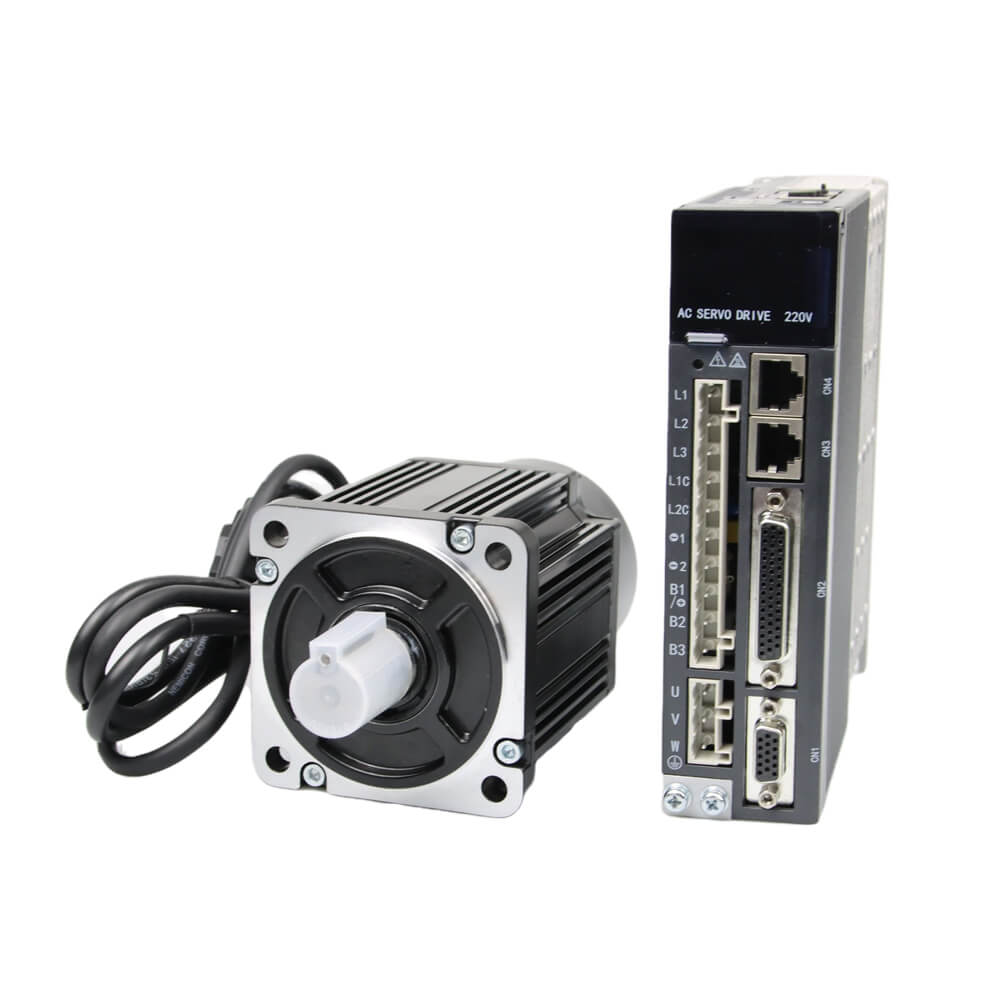

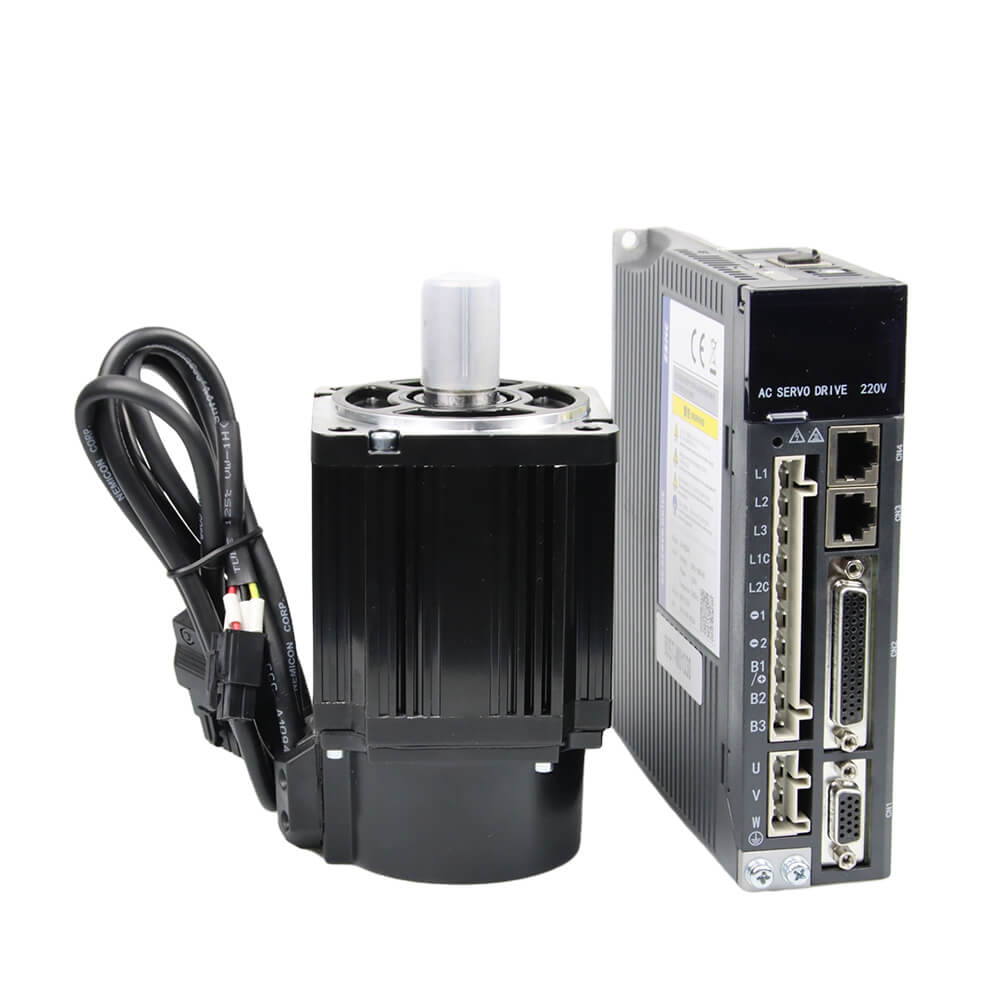

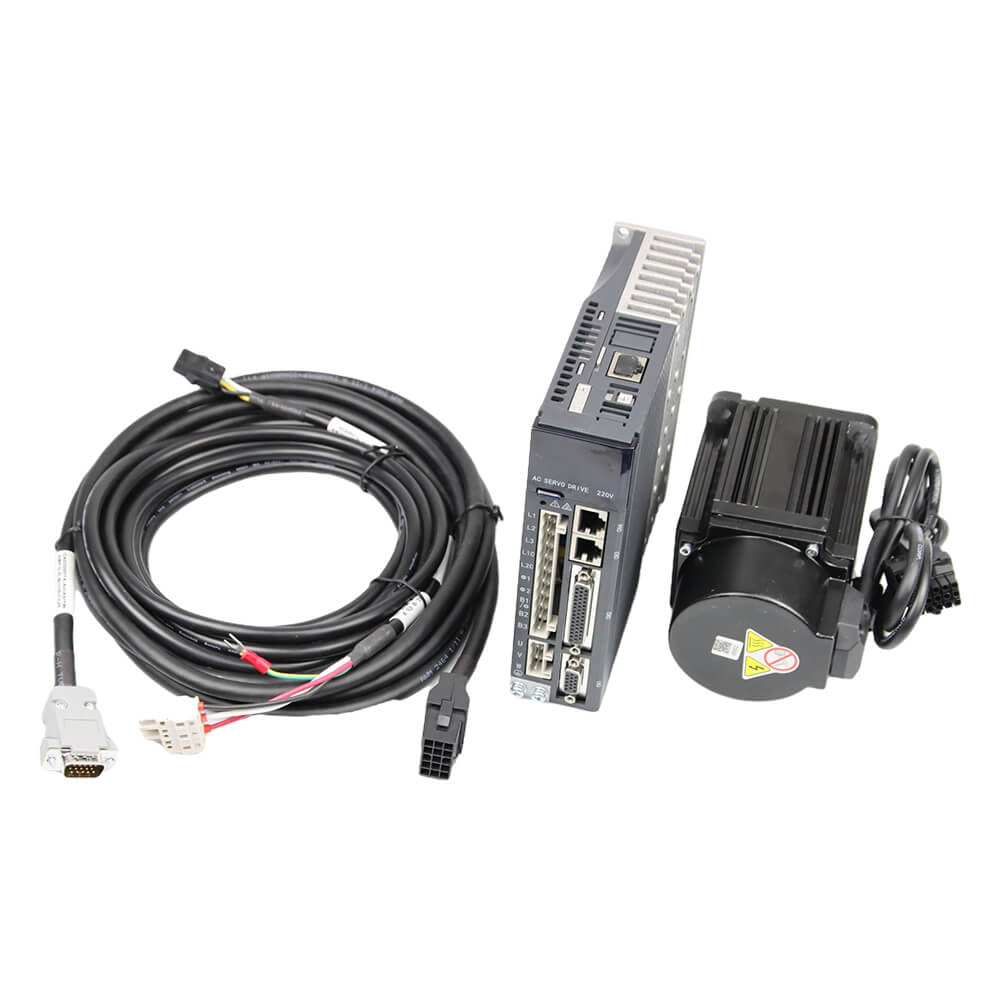

Packing List Includes:
- 1 x 750W 23bit servo Motor
- 1 x Ac servo Driver
- 1 x 3 Mtr Cable
