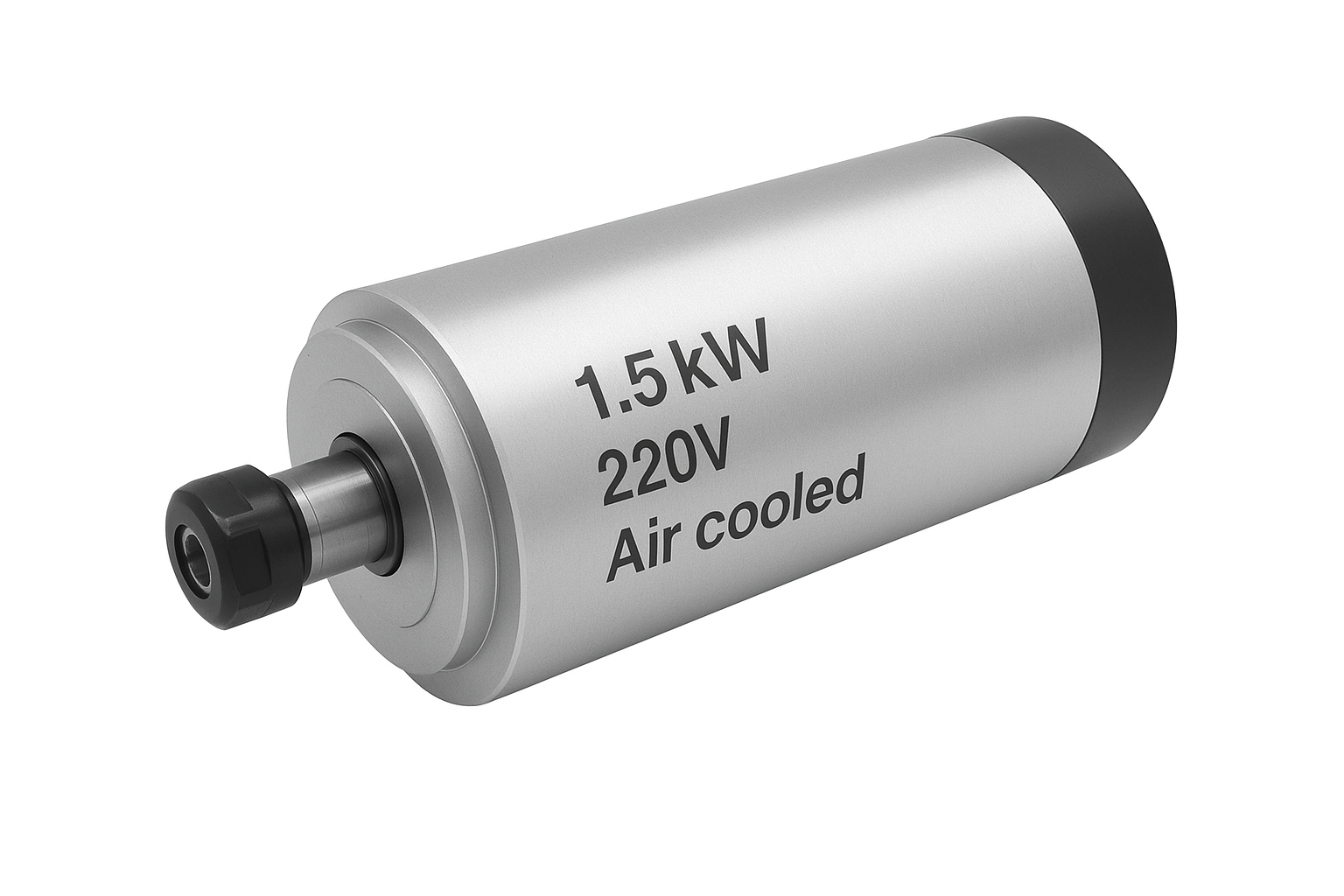

Air Cooled Spindle 1.5kW ER11 220V 24000RPM - 80mm

Air Cooled Spindle 1.5kW ER11 220V 24000RPM - 80mm

Availability: Out of stock
₹ 12,154.00 (Inc.GST)
₹ 12,154.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970201

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Spindle Type Air-Cooled CNC Spindle
Power 1.5 kW
Voltage 220V AC
Speed 24,000 RPM
Frequency 400 Hz
Collet Type ER11
Body Diameter 80 mm
Cooling Method Air-cooled (internal fan)
Bearing Type High-precision angular contact bearings
Runout Accuracy ≤ 0.01 mm
Phase 1-Phase
Noise Level Low noise
Shaft Type High-precision hardened spindle shaft
Application CNC routers, engraving, woodworking, acrylic, light metal

The Xrobo.in Air Cooled Spindle 1.5kW ER11 220V 24000RPM is a precision CNC spindle optimized for routing, engraving, and light milling across wood, plastics, and non‑ferrous metals. Driven by a matched VFD, it maintains stable torque across the operating range with low runout thanks to high‑precision ceramic bearings. The collet system ensures secure toolholding with minimal eccentricity, while the Air-cooled architecture preserves bearing life during long jobs. Mount using an appropriate clamp (body diameter class) and ensure correct VFD parameters (voltage, frequency, acceleration ramps) for best results.

The product has a warranty for 1 year against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
