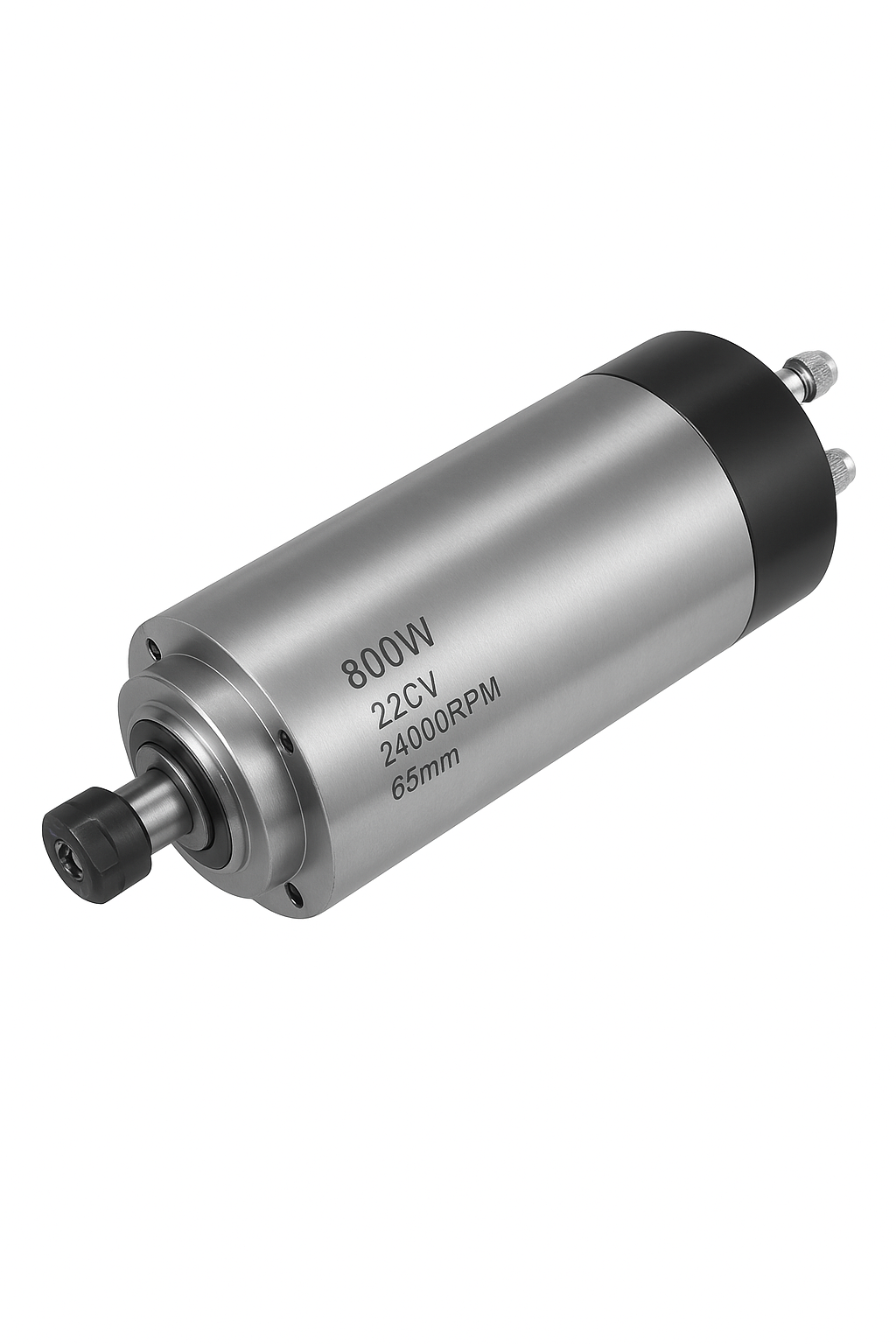

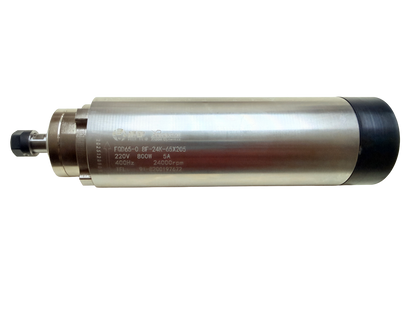

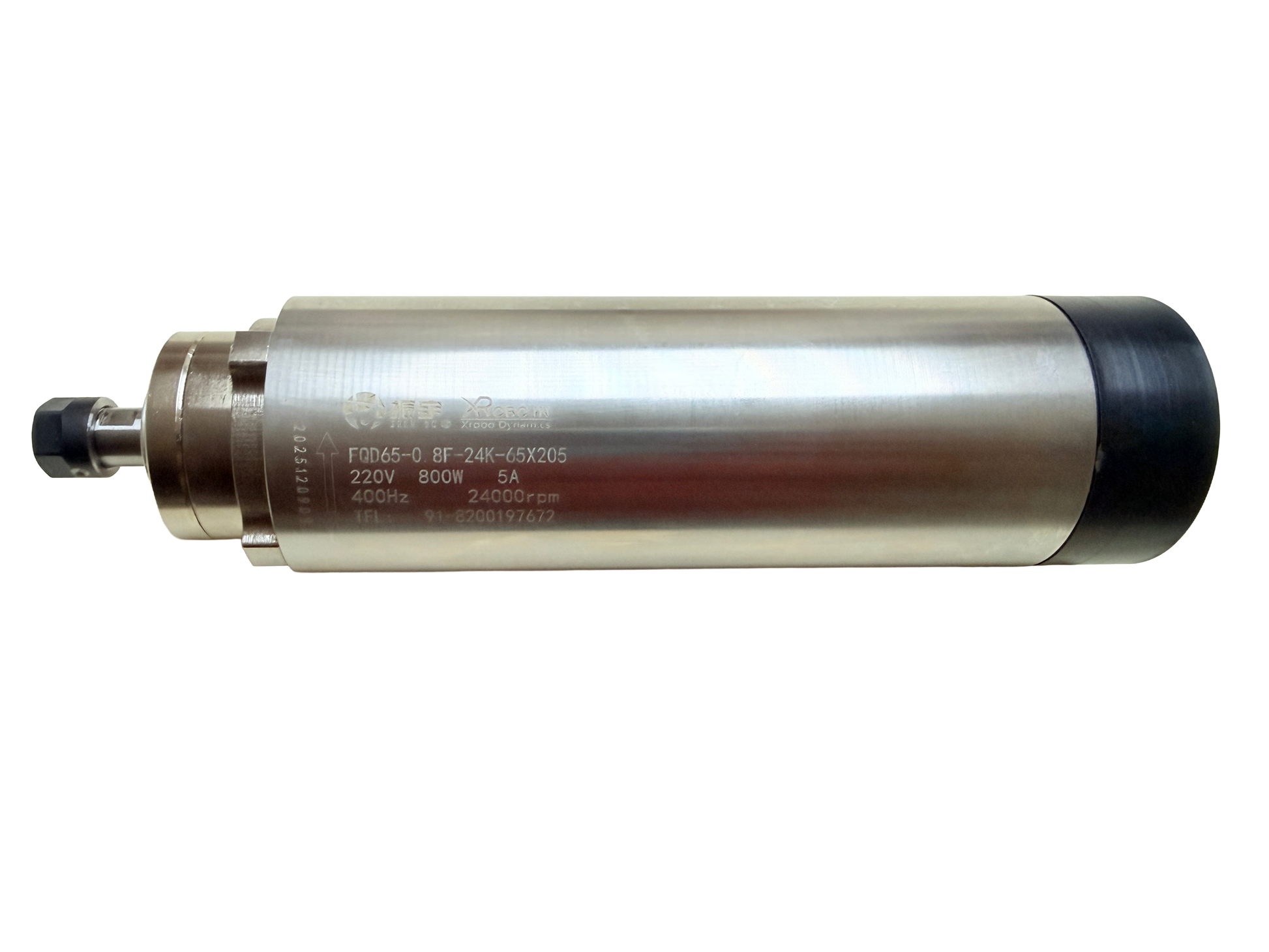

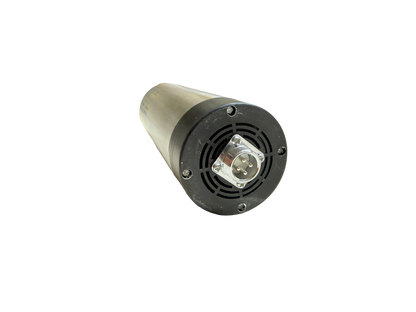

Air Cooled Spindle 800W ER11 220V 24000RPM - 65mm

Air Cooled Spindle 800W ER11 220V 24000RPM - 65mm

Availability: In stock
₹ 11,650.00 (Inc.GST)
₹ 11,650.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970200

Short Description:
  • Power : 0.8kw
  • RPM : 24000
  • Collect Size : ER11
  • Spindle Dia : 65mm
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Spindle Type Air-Cooled CNC Spindle
Power 800W
Voltage 220V AC
Speed 24,000 RPM

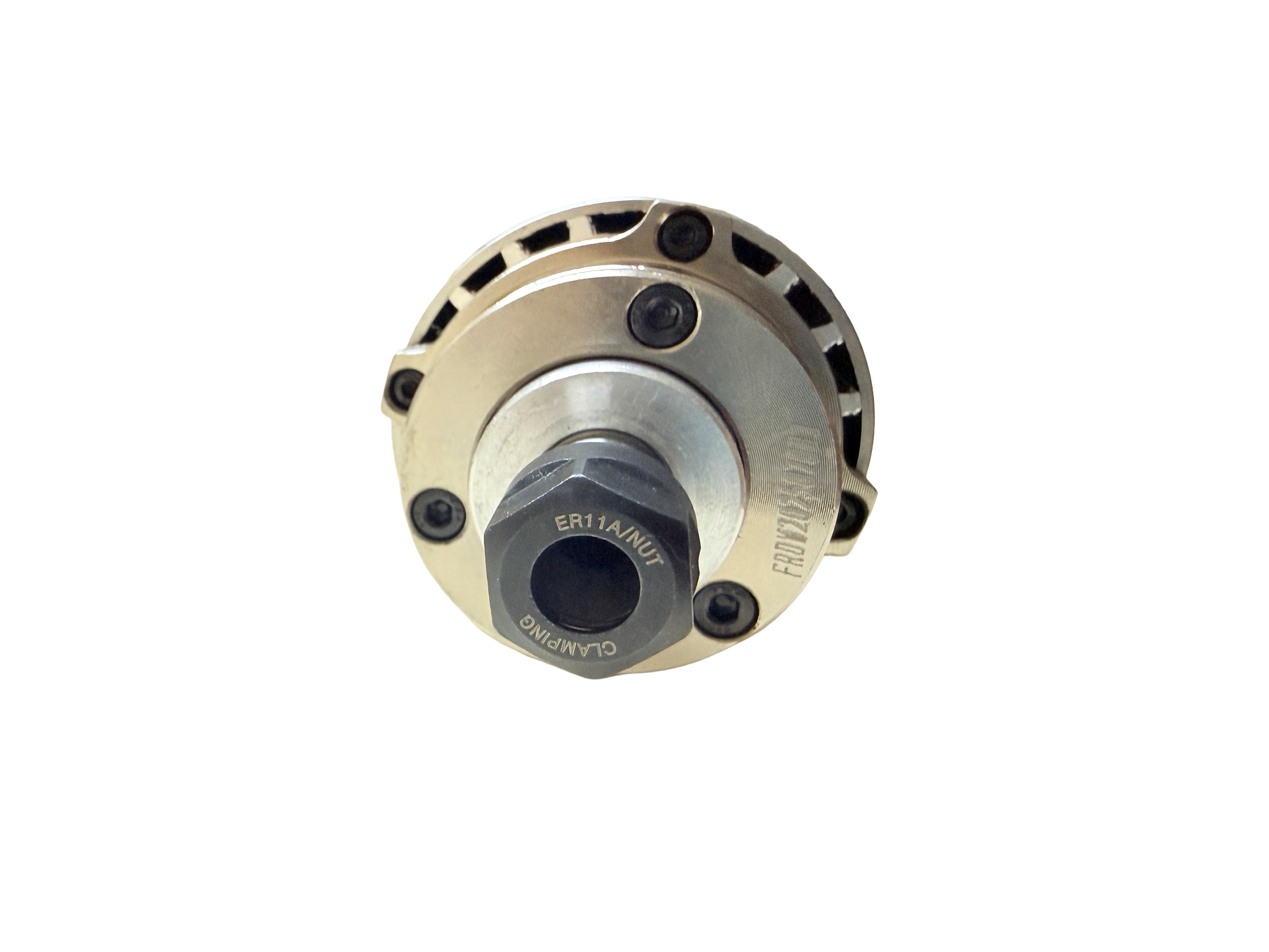

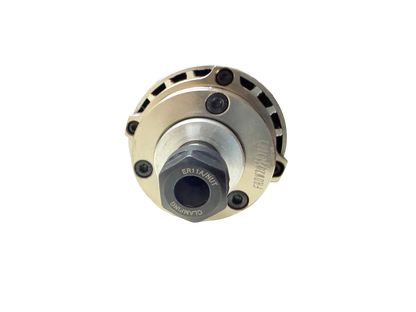

Collet Type ER11
Body Diameter 65 mm

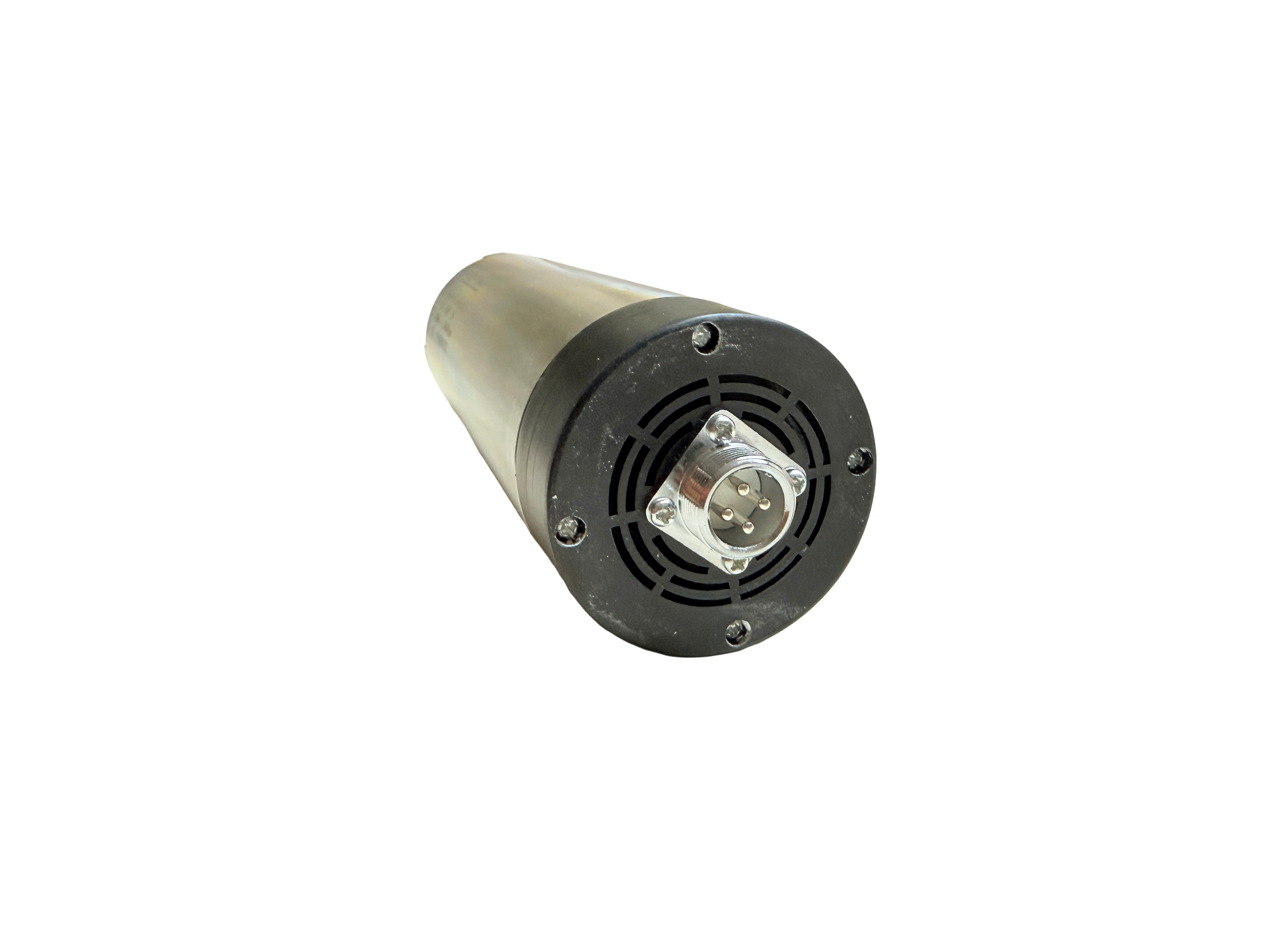

Cooling Method Air-cooled (built-in fan)
Bearing Type High-precision angular contact bearings
Frequency 400 Hz
Phase 1-Phase
Runout Accuracy ≤ 0.01 mm
Noise Level Low-noise operation
Application CNC routers, engraving, woodworking, acrylic cutting

The Xrobo.in Air Cooled Spindle 800W ER11 220V 24000RPM - 65mm is a precision CNC spindle optimized for routing, engraving, and light milling across wood, plastics, and non‑ferrous metals. Driven by a matched VFD, it maintains stable torque across the operating range with low runout thanks to high‑precision ceramic bearings.

Key Features :

  • 800 W input power for strong cutting performance
  • High speed operation up to 24,000 RPM
  • ER11 collet for versatile tool holding
  • Standard 65 mm body diameter for easy mounting
  • Low noise and smooth rotation even under load

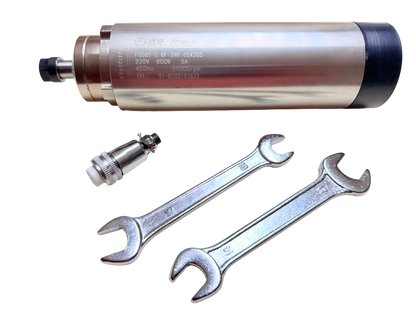

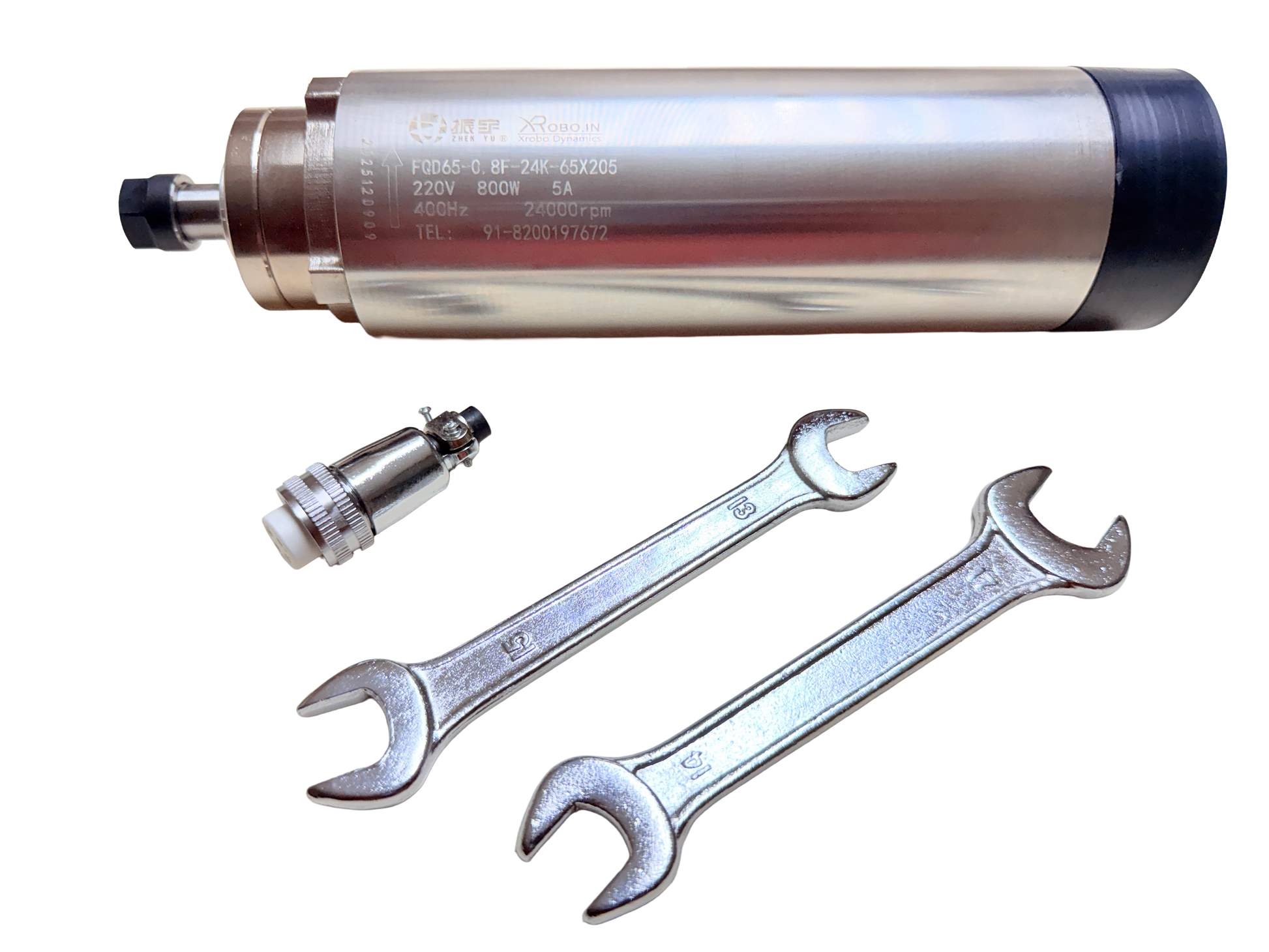

Packing List Includes:

1 x Air Cooled Spindle 800W ER11 220V 24000RPM - 65mm

The product has a warranty for 6 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
