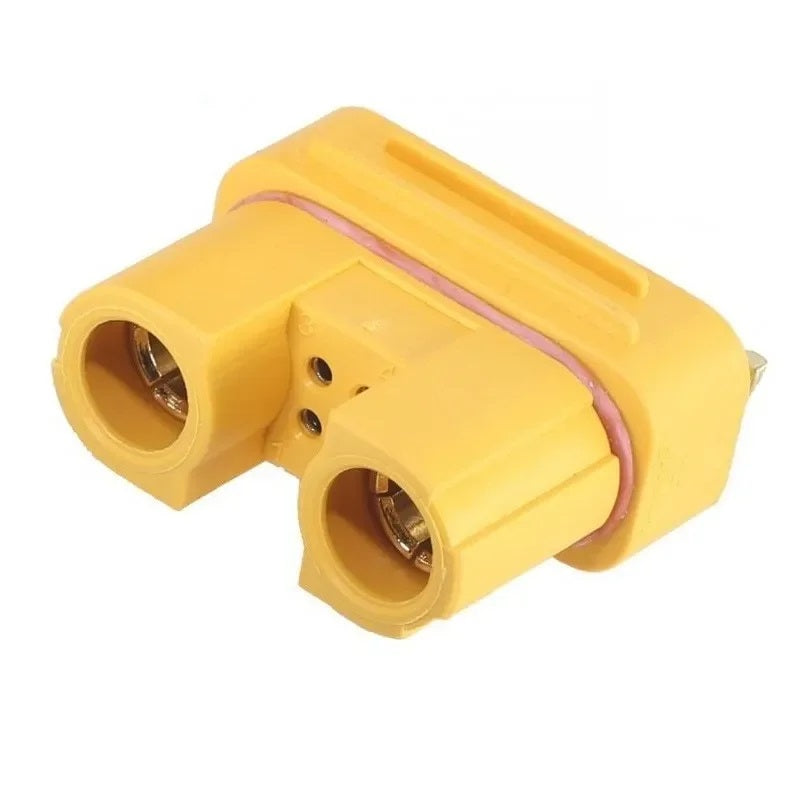

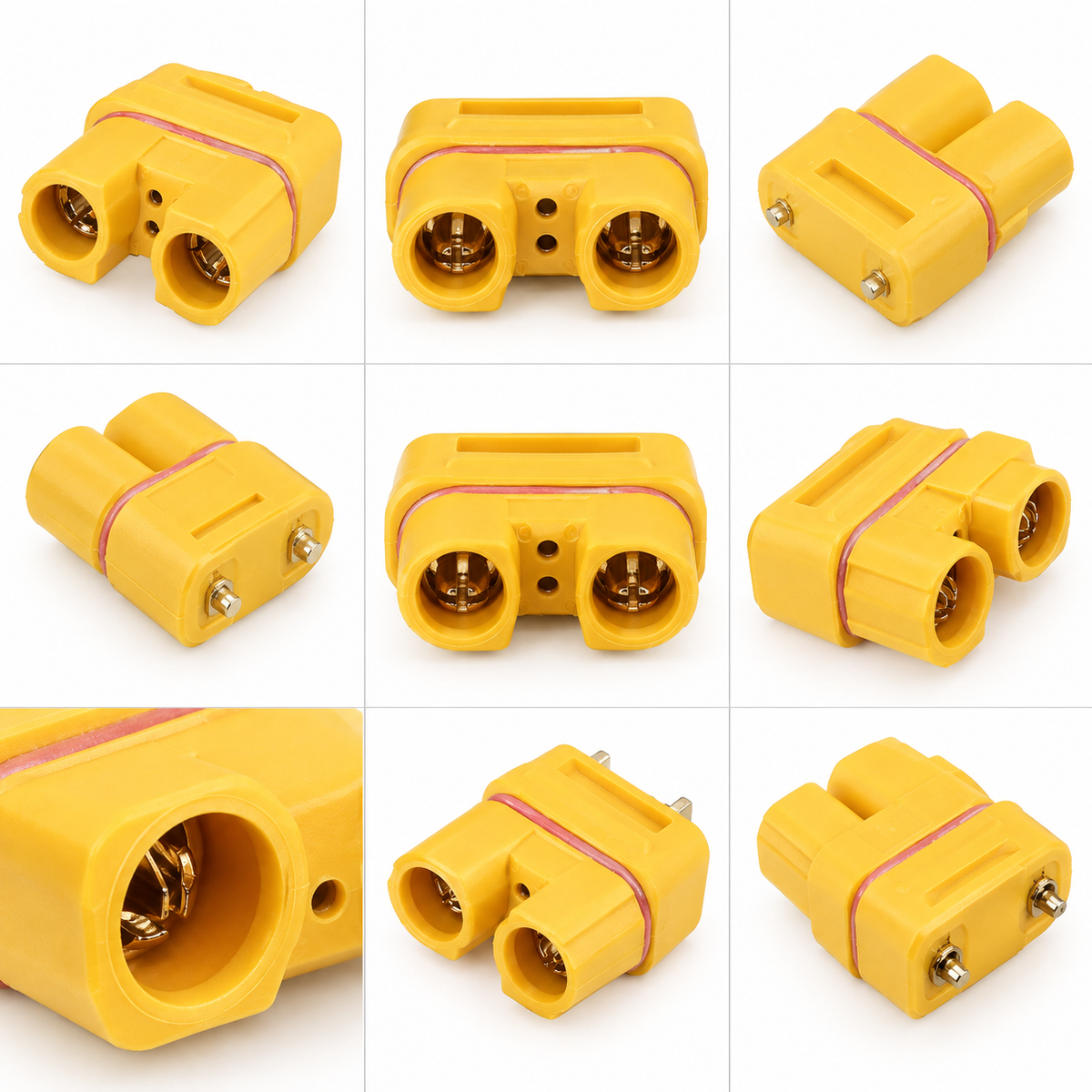

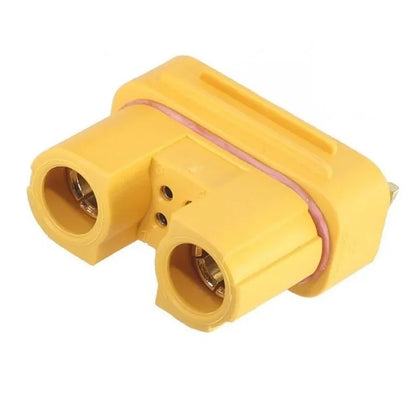

Amass AS150U - Female Connector

Amass AS150U - Female Connector

Availability: In stock
₹ 410.00 (Inc.GST)
₹ 410.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

6570094

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 15 Days Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name AS150U-F Female Connector
Connector Type AS150U-Female High-Current Anti-Spark Connector
Number of Power Contacts 2
Signal Contacts 4 Signal Pins
Rated Current 75 A Continuous
Peak Current 140 A
Rated Voltage Up to 500 V DC
Contact Material Gold-Plated Copper/Brass
Housing Material High-Temperature PA66 Nylon
Flame Retardant Rating UL94 V0
Contact Resistance ≤ 0.8 mΩ
Recommended Wire Size 8 AWG
Connection Type Solder Terminal
Mounting Style Cable Mount
Anti-Spark Feature Integrated Pre-Charge Circuit
Mating Cycles Up to 1,000 Cycles
Operating Temperature -20°C to +120°C
Color Yellow

The (AS150U-F) Female Connector is a high-current anti-spark power connector designed for industrial UAVs, VTOL aircraft, smart lithium battery packs, and high-power DC systems. Featuring 2 power contacts, 4 auxiliary signal pins, 75 A continuous current capability, 140 A peak current, gold-plated contacts, and a PA66 flame-retardant housing, it provides a reliable, low-resistance connection for demanding power applications.

Key Features:

  • High-current AS150U-F female connector
  • Built-in anti-spark design minimizes arcing during battery connection
  • Rated for 75 A continuous current
  • Handles up to 140 A peak current
  • 2 power contacts with 4 auxiliary signal pins for smart battery communication
  • Gold-plated contacts for low resistance and high conductivity
  • High-temperature, flame-retardant PA66 housing
  • Supports 8 AWG silicone wire
  • Secure, vibration-resistant connection
  • Suitable for high-power UAV and industrial battery systems

Packing List Includes:

  • 1 x AS150U - Female Connector

The product has a warranty for 15 Days against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
